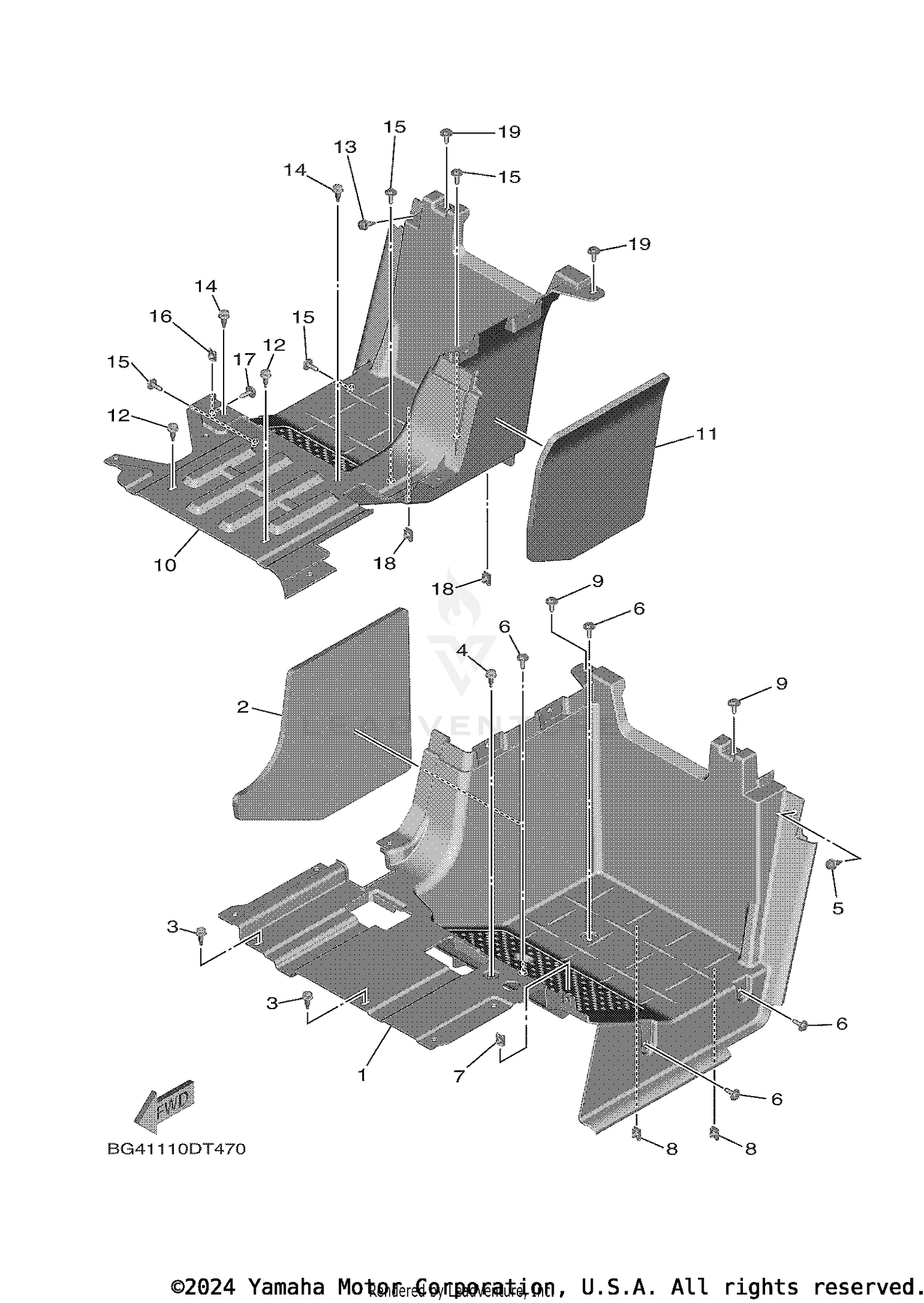

Stand Footrest 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST,REAR 1
BG4-F7431-00-00
Superseded by BG4-F7431-02-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSU., 1
BG4-H336L-00-00
Superseded by BG4-H336L-01-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIVET
90269-07805-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#5
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#6
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST,REAR 2
BG4-F7441-00-00
Superseded by BG4-F7441-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSU., 2
BG4-H336M-00-00
Superseded by BG4-H336M-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#13
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#15
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.65 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Unavailable |
|||
