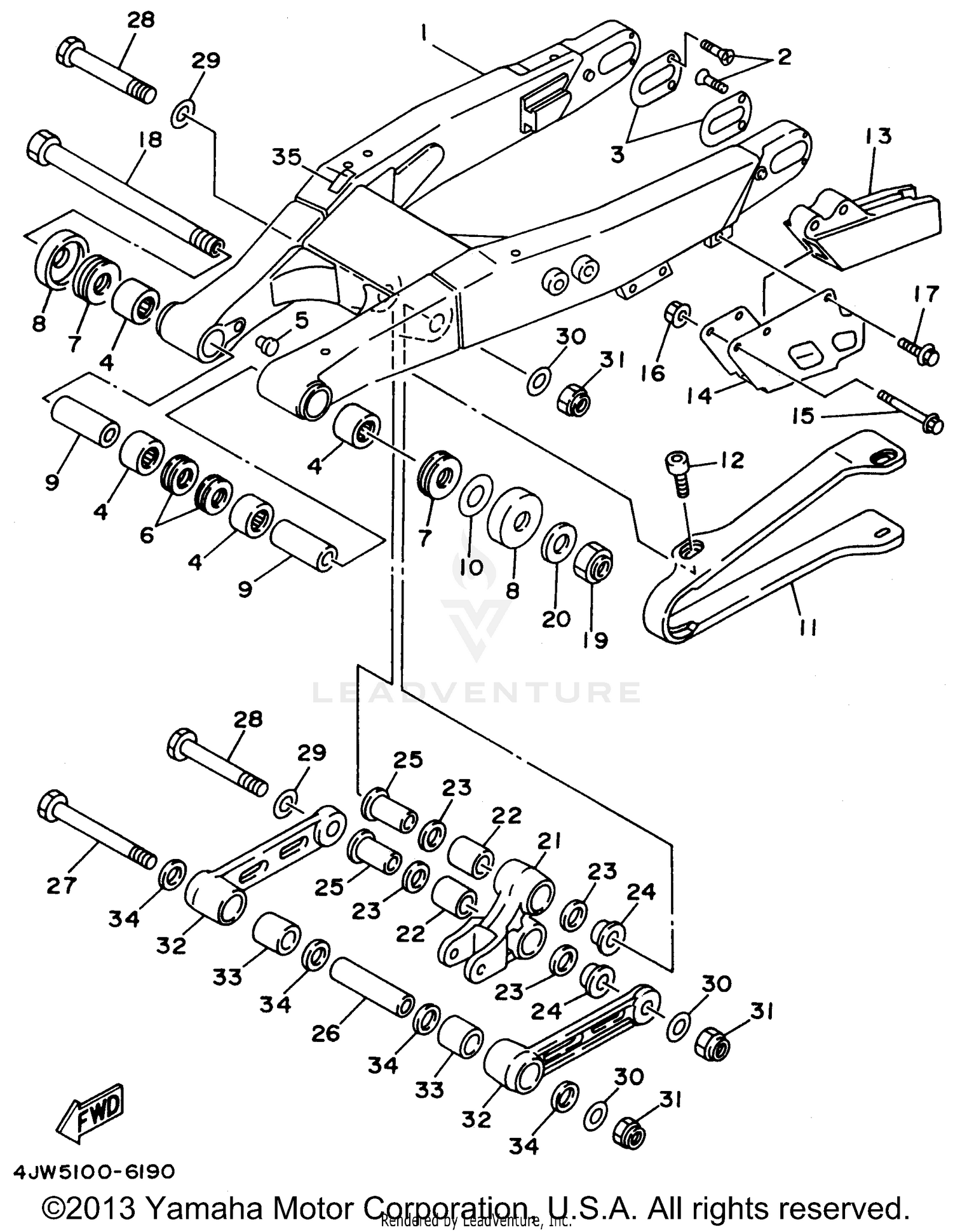

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
4JW-22110-00-00
|
$865.99 | ||
|
Unavailable |
|||
|
#2
SCREW, FLAT HEAD
90151-04048-00
Superseded by 98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PATCH
4JW-22355-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#4
BEARING
93317-22262-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
90338-10150-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93342-22215-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 2
4EW-22129-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SOLID
90380-16158-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, GUARD
4EW-22151-01-00
Superseded by 4EW-22151-20-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUPPORT, CHAIN
4EW-22199-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#14
COVER, THRUST 1
4MX-22128-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95027-06045-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
90179-06568-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, PIVOT
1LX-22141-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, RELAY
4EW-2217A-00-00
|
$362.99 | ||
|
Unavailable |
|||
|
#22
BEARING, CYLINDER #15
93315-22046-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-164N2-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-164N3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-167Y9-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-147F2-00
|
$38.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90109-142F4-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROD, CONNECTING 1
4EW-2217F-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#33
BEARING, CYLINDER #15
93315-22046-00
|
$81.99 | ||
|
Unavailable |
|||
|
#34
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Unavailable |
|||
|
#35
SEAL
46X-21269-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
