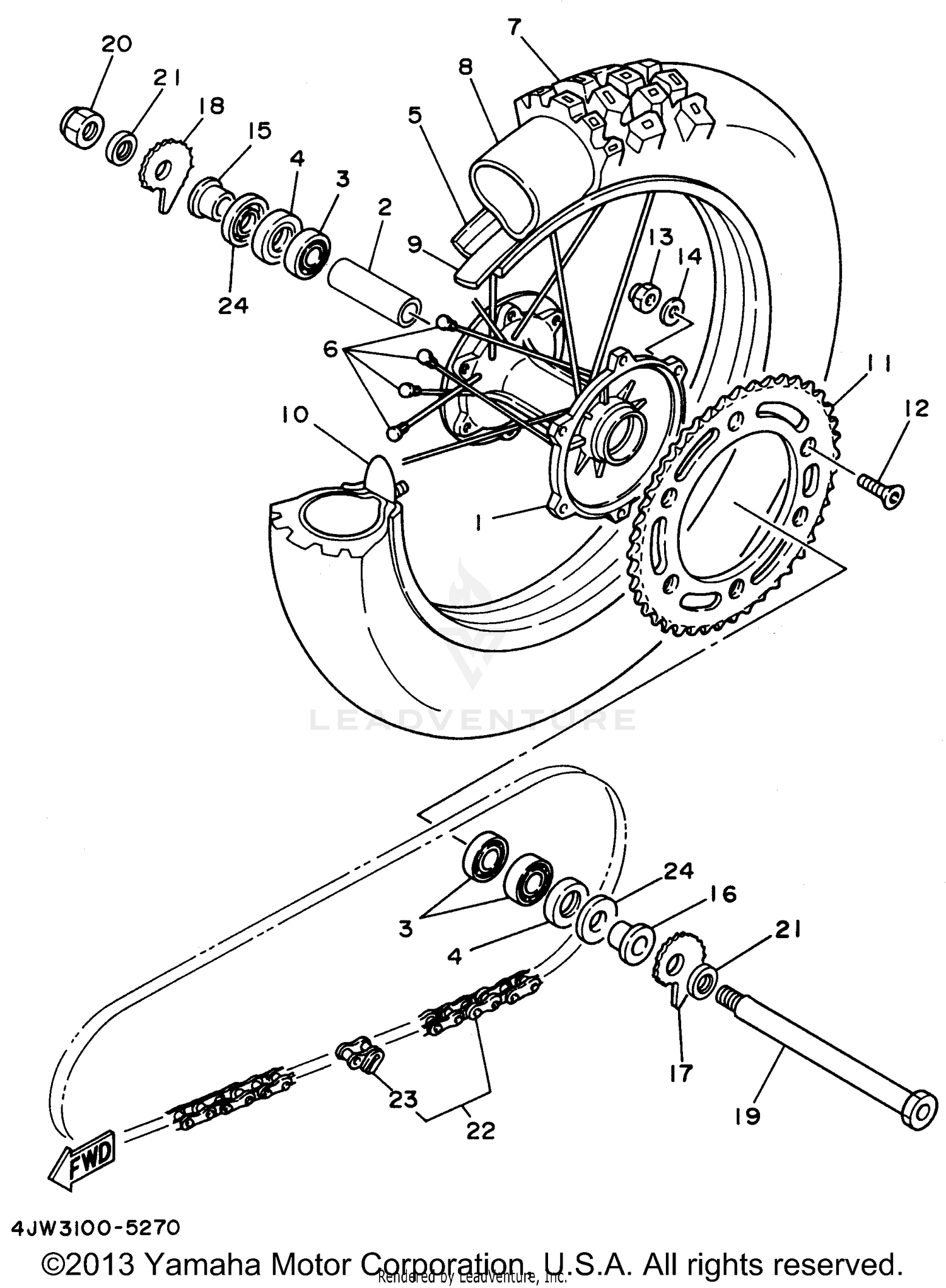

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
4EW-25311-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20278-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM (2.15-18)
94421-18498-00
|
$595.99 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, REAR
2VN-25304-00-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE (110/100-18-ED12)
94111-187X9-00
|
$135.99 | ||
|
Unavailable |
|||
|
#8
TUBE (110-140/80-100-18 M/C)
94213-18232-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (2.50-18)
94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
39X-25394-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVEN
26A-25448-50-00
Superseded by 26A-25448-51-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN
26A-25446-50-00
Superseded by 26A-25446-51-00
|
$39.76 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (52T)
26A-25452-50-00
Superseded by 26A-25452-51-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVEN
26A-25450-50-00
Superseded by 26A-25450-51-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVEN
26A-25444-50-00
Superseded by 26A-25444-51-00
|
$39.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-2000C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PULLER, CHAIN 1
3BN-25388-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 2
3BN-25389-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, WHEEL
23X-25381-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-206R3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN (D.I.D.520V6-116L)
9Y581-08115-00
|
$202.99 | ||
|
Unavailable |
|||
|
#23
JOINT, CHAIN (DID520V FJ)
94681-08011-00
Superseded by 94681-87011-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
