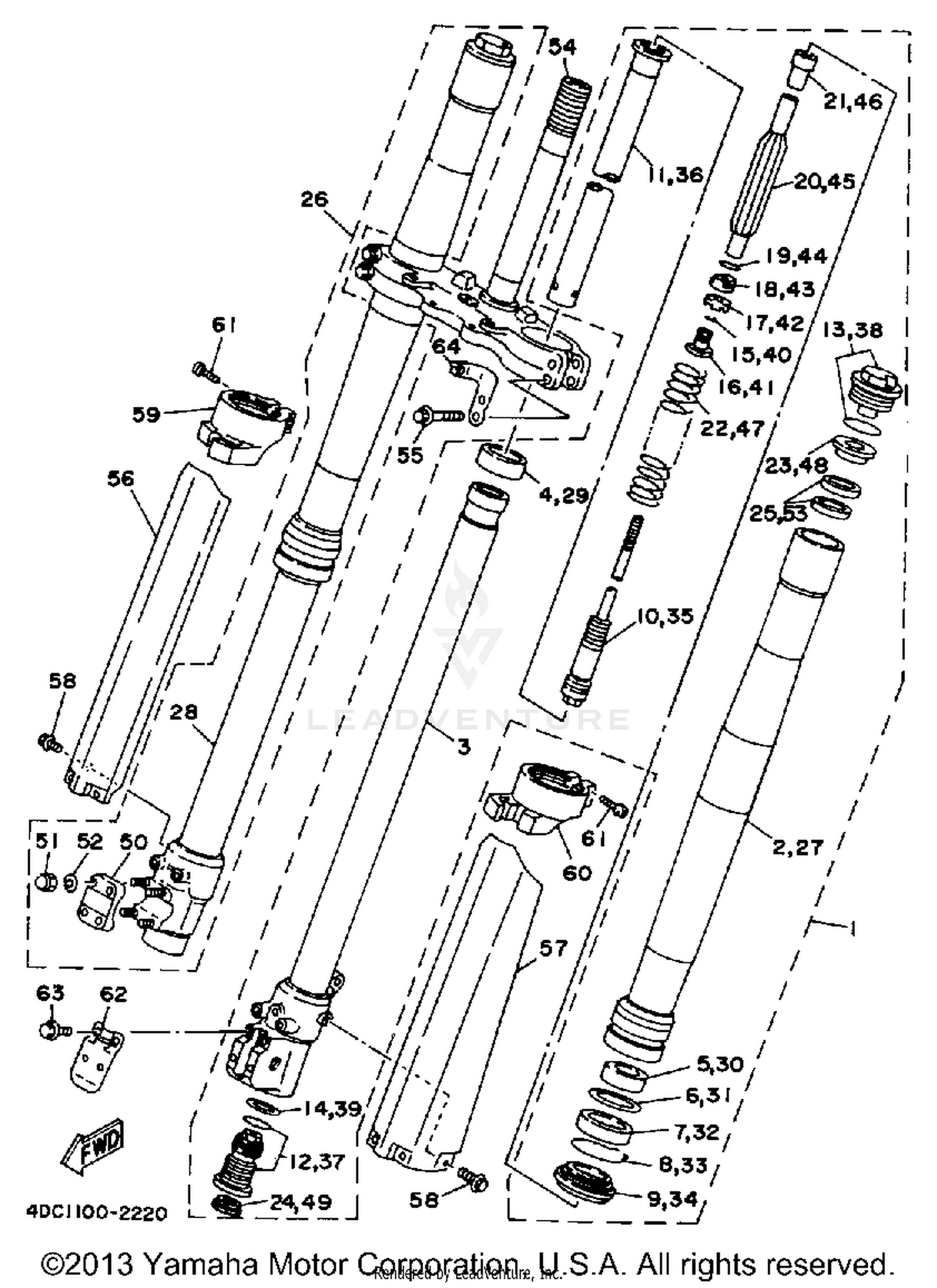

1992 Yamaha WR 250 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRK ASSY (L.H) (L.H)
4DC-23102-M0-00
|
$863.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2 (RIGHT)
4DA-23136-L0-00
|
$665.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
4DA-23120-L0-00
|
$261.99 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
3XJ-23145-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
4V4-23153-L0-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
4DA-23144-L0-00
Superseded by 4PU-23144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON ROD ASSY
4DA-2314A-L0-00
|
$430.99 | ||
|
Unavailable |
|||
|
#11
CYLDR COMP., FRTFKFRONT FORK
4DA-23170-L0-00
|
$459.99 | ||
|
Unavailable |
|||
|
#12
VALVE COMP.
4DC-2316A-M0-00
|
$258.99 | ||
|
Unavailable |
|||
|
#13
BOLT, CAP
4DA-23111-L0-00
|
$202.99 | ||
|
Unavailable |
|||
|
#14
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, SNAP
3XJ-23153-L0-00
|
$4.45 | ||
|
Unavailable |
|||
|
#16
COLLAR
3XJ-23113-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
SPACER, OIL LOCK
3XJ-23166-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#18
NUT
3XJ-23778-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#19
O-RING
36Y-23147-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING UPPER
3XJ-23142-L0-00
|
$18.49 | ||
|
Unavailable |
|||
|
#21
NUT
4DA-23778-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#22
SPRING, FRT FRK .39FRONT FORK
4DA-23141-L0-00
|
$90.99 | ||
|
Unavailable |
|||
|
#23
SEAT, SPRING LOWER
3XJ-23143-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#24
PLUG
3JD-2312G-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR 2
3XJ-23364-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#26
FRONT FRK ASSY (R.H)
4DC-23103-M0-00
|
$863.99 | ||
|
Unavailable |
|||
|
#27
TUBE, OUTER 2 (RIGHT)
4DA-23136-L0-00
|
$665.99 | ||
|
Unavailable |
|||
|
#28
INNER TUBE COMP. 1
4DA-23110-L0-00
|
$321.99 | ||
|
Unavailable |
|||
|
#29
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#30
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#31
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
3XJ-23145-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
RING, SNAP
4V4-23153-L0-00
|
$8.99 | ||
|
Unavailable |
|||
|
#34
SEAL, DUST
4DA-23144-L0-00
Superseded by 4PU-23144-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#35
PISTON ROD ASSY
4DA-2314A-L0-00
|
$430.99 | ||
|
Unavailable |
|||
|
#36
CYLDR COMP., FRTFKFRONT FORK
4DA-23170-L0-00
|
$459.99 | ||
|
Unavailable |
|||
|
#37
VALVE COMP.
4DC-2316A-M0-00
|
$258.99 | ||
|
Unavailable |
|||
|
#38
BOLT, CAP
4DA-23111-L0-00
|
$202.99 | ||
|
Unavailable |
|||
|
#39
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#40
RING, SNAP
3XJ-23153-L0-00
|
$4.45 | ||
|
Unavailable |
|||
|
#41
COLLAR
3XJ-23113-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#42
SPACER, OIL LOCK
3XJ-23166-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#43
NUT
3XJ-23778-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#44
O-RING
36Y-23147-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#45
SEAT, SPRING UPPER
3XJ-23142-L0-00
|
$18.49 | ||
|
Unavailable |
|||
|
#46
NUT
4DA-23778-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#47
SPRING, FRT FRK .39FRONT FORK
4DA-23141-L0-00
|
$90.99 | ||
|
Unavailable |
|||
|
#48
SEAT, SPRING LOWER
3XJ-23143-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#49
PLUG
3JD-2312G-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#50
HOLDER, AXLE
4DA-23167-L0-00
Superseded by 4EW-23167-L0-00
|
$39.99 | ||
|
Unavailable |
|||
|
#51
NUT, SPECIAL
5Y3-23393-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#53
COLLAR 2
3XJ-23364-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#54
UNDER BRACKET COMP
4DA-23340-L0-00
|
$472.99 | ||
|
Unavailable |
|||
|
#55
BOLT, FLANGE
95023-08040-00
Superseded by 95024-08040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PROTECTER COMP., 2
4DA-2314J-L0-00
Superseded by 4MX-2314J-L0-00
|
$133.99 | ||
|
Unavailable |
|||
|
#57
PROTECTER COMP., 1
4DA-2314H-L1-00
Superseded by 4MX-2314H-L1-00
|
$133.99 | ||
|
Unavailable |
|||
|
#58
BOLT 2
3SP-23356-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
PROTECTER GUIDE COMP., 2
4DA-2314G-L0-00
Superseded by 4MX-2314G-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
PROTECTER GUIDE COMP., 1
4DA-2314F-L0-00
Superseded by 4MX-2314F-L0-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW, PAN HEAD
4V4-23194-L0-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#62
COVER, HOSE
3SP-2314E-L0-00
|
$11.99 | ||
|
Unavailable |
|||
|
#63
BOLT, FLANGE
4DA-23346-L0-00
Superseded by 95024-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
GUIDE, CABLE
4DA-2331E-L0-00
Superseded by 4EW-2331E-L1-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
