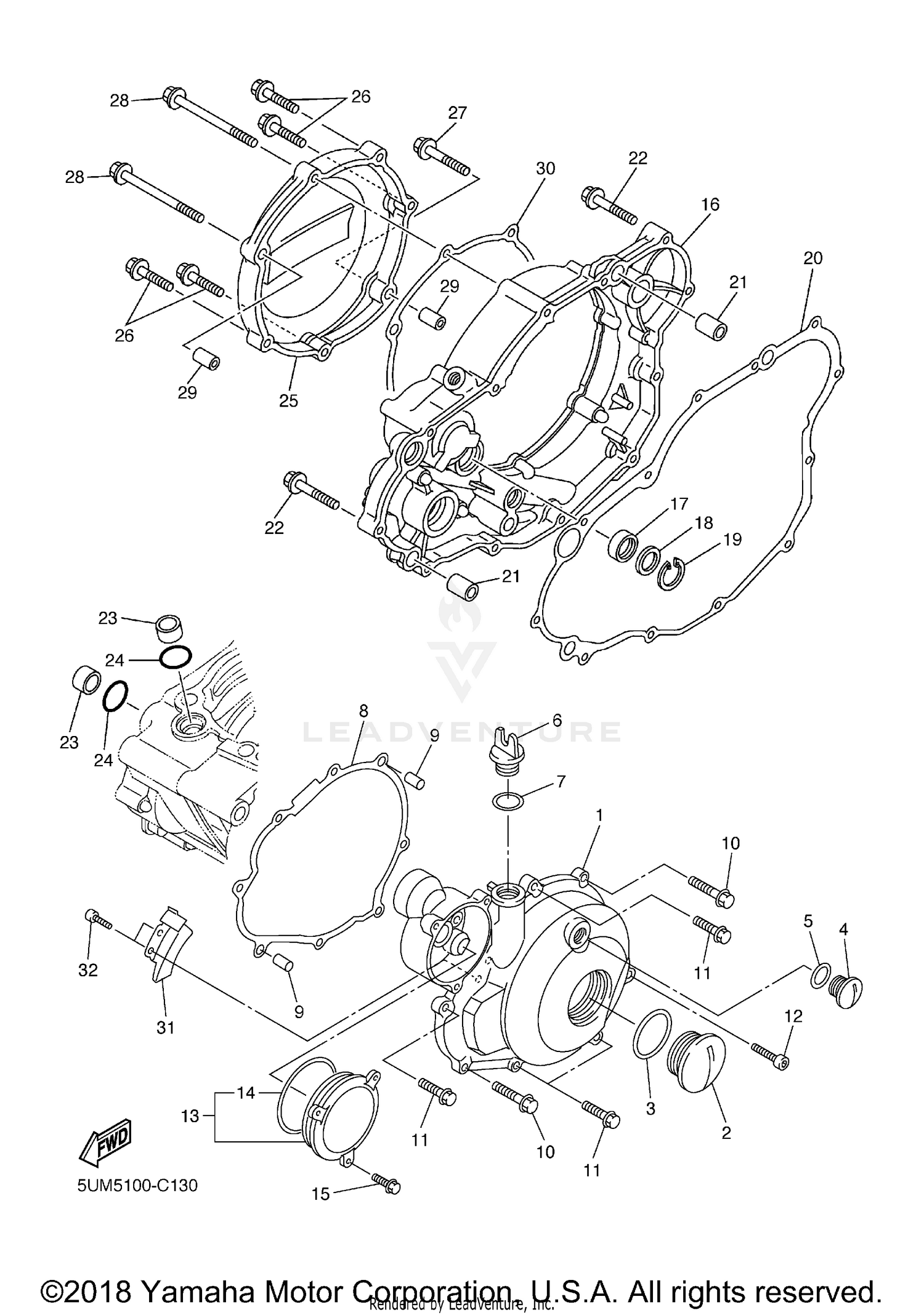

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5UM-15411-10-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-27002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-14128-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, OIL
3Y1-15363-00-00
Superseded by 3Y1-15363-10-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-19123-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CRANKCASE COVER 1
5UM-15451-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06040-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06030-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET HEAD
91317-06110-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER ASSY 2
5UM-1549B-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-60426-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CRANKCASE 3
5NL-15431-10-00
Superseded by 5NL-15431-11-00
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93101-14164-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99009-22500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, CRANKCASE COVER 3
5NL-15462-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
91812-16001-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95027-06035-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, WATER
5NL-12564-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93102-16442-00
|
|||
|
Unavailable |
|||
|
#24
O-RING
93210-16716-00
Superseded by 93210-16772-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER 1
5NL-15415-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-06035-00
|
$2.18 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
90105-065A1-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#30
GASKET
5NL-15453-00-00
Superseded by 5NL-15453-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET 1
5NL-15453-10-00
|
$20.99 | ||
|
Unavailable |
|||
|
#31
CLAMP 1
5UM-81528-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
91317-05012-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
