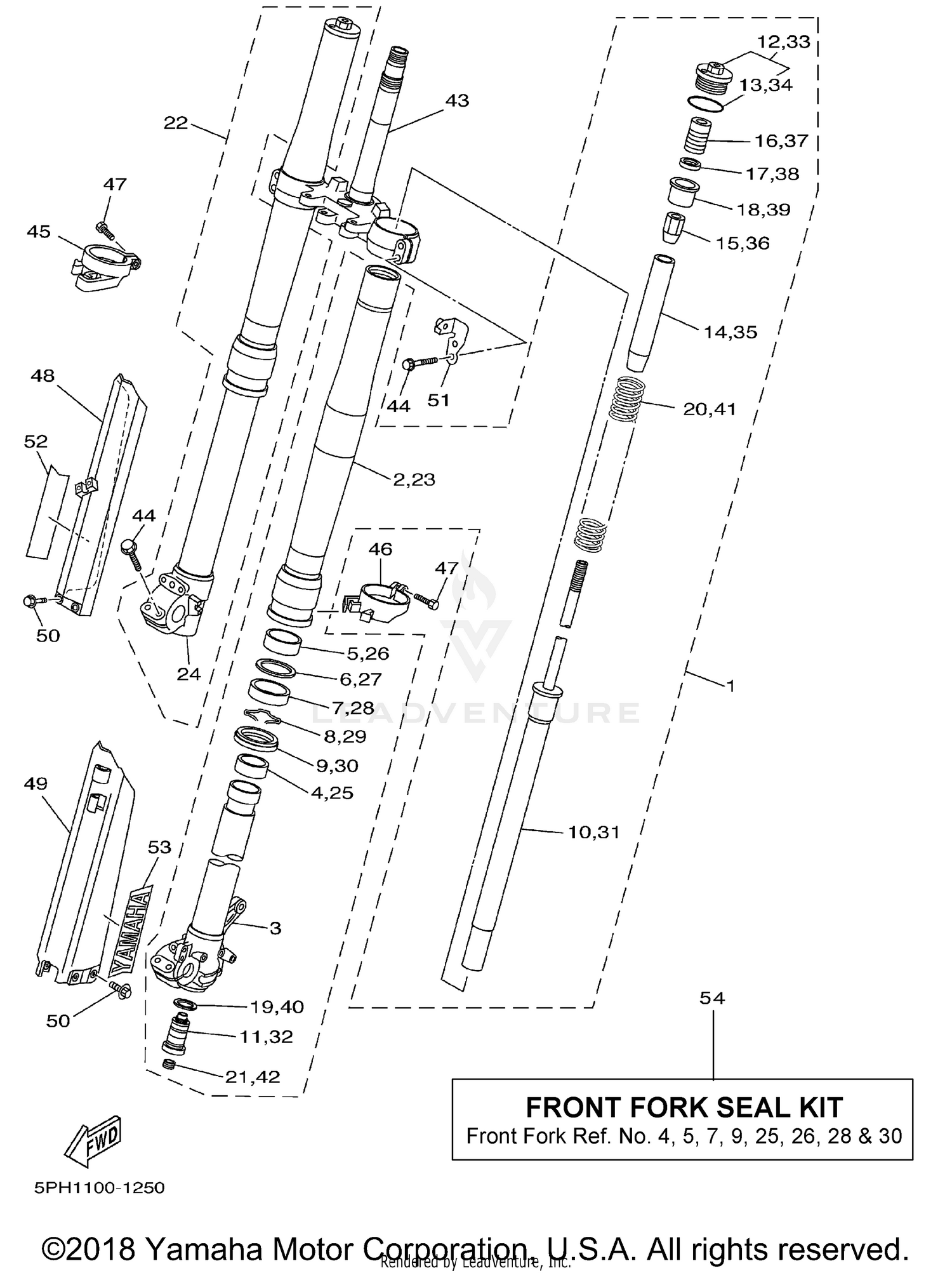

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5PH-23102-00-00
|
$1,243.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
5HD-23136-L0-00
|
$731.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
5DH-23120-L0-00
|
$434.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5ET-23171-L0-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5ET-23125-L0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
4SS-23146-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5ET-23145-L0-00
Superseded by 5UN-23145-L0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
4SS-23153-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5HD-23144-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
5NG-23170-10-00
|
$585.99 | ||
|
Unavailable |
|||
|
#11
VALVE COMP.
5PH-2316A-00-00
|
$213.99 | ||
|
Unavailable |
|||
|
#12
BOLT, CAP
5MV-23111-L0-00
|
$297.99 | ||
|
Unavailable |
|||
|
#13
O-RING
93210-42263-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, SPRING UPPER
5DH-23142-L0-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPECIAL
5HD-23393-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER
5DH-23195-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING UPPER
5DH-23149-L0-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
5DH-23118-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
4SS-23158-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, FRONT FORK (K=4.3N/MM)
5NL-23141-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#21
PLUG, HOLE
3JD-2312G-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRONT FORK ASSY (R.H)
5PH-23103-00-00
|
$1,243.99 | ||
|
Unavailable |
|||
|
#23
TUBE, OUTER (RIGHT)
5HD-23136-L0-00
|
$731.99 | ||
|
Unavailable |
|||
|
#24
INNER TUBE COMP. 1
5BF-23110-L0-00
|
$481.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON, FRONT FORK
5ET-23171-L0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE 1
5ET-23125-L0-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
WASHER, OIL SEAL
4SS-23146-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
OIL SEAL
5ET-23145-L0-00
Superseded by 5UN-23145-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
RING, SNAP
4SS-23153-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
SEAL, DUST
5HD-23144-L0-00
|
$28.99 | ||
|
Unavailable |
|||
|
#31
CYLINDER COMP., FRONT FORK
5NG-23170-10-00
|
$585.99 | ||
|
Unavailable |
|||
|
#32
VALVE COMP.
5PH-2316A-00-00
|
$213.99 | ||
|
Unavailable |
|||
|
#33
BOLT, CAP
5MV-23111-L0-00
|
$297.99 | ||
|
Unavailable |
|||
|
#34
O-RING
93210-42263-00
|
$18.49 | ||
|
Unavailable |
|||
|
#35
SEAT, SPRING UPPER
5DH-23142-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#36
NUT, SPECIAL
5HD-23393-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#37
RUBBER
5DH-23195-L0-00
|
$28.99 | ||
|
Unavailable |
|||
|
#38
WASHER, SPRING UPPER
5DH-23149-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#39
SPACER
5DH-23118-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#40
GASKET
4SS-23158-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
SPRING, FRONT FORK (K=4.3N/MM)
5NL-23141-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#42
PLUG, HOLE
3JD-2312G-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#43
UNDER BRACKET COMP.
5PH-23340-00-00
|
$472.99 | ||
|
Unavailable |
|||
|
#44
BOLT 1
5MV-23346-L0-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#45
PROTECTOR GUIDE COMP., 2
4SS-2314G-L0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTOR GUIDE COMP., 1
5DH-2314F-L0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT 1
4SS-23346-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PROTECTOR COMP., 2
5BF-2314J-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#49
PROTECTOR COMP., 1
5DH-2314H-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT 2
3SP-23356-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
GUIDE, CABLE
5HC-2331E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#54
FORK SEAL KIT
5ET-W003B-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
