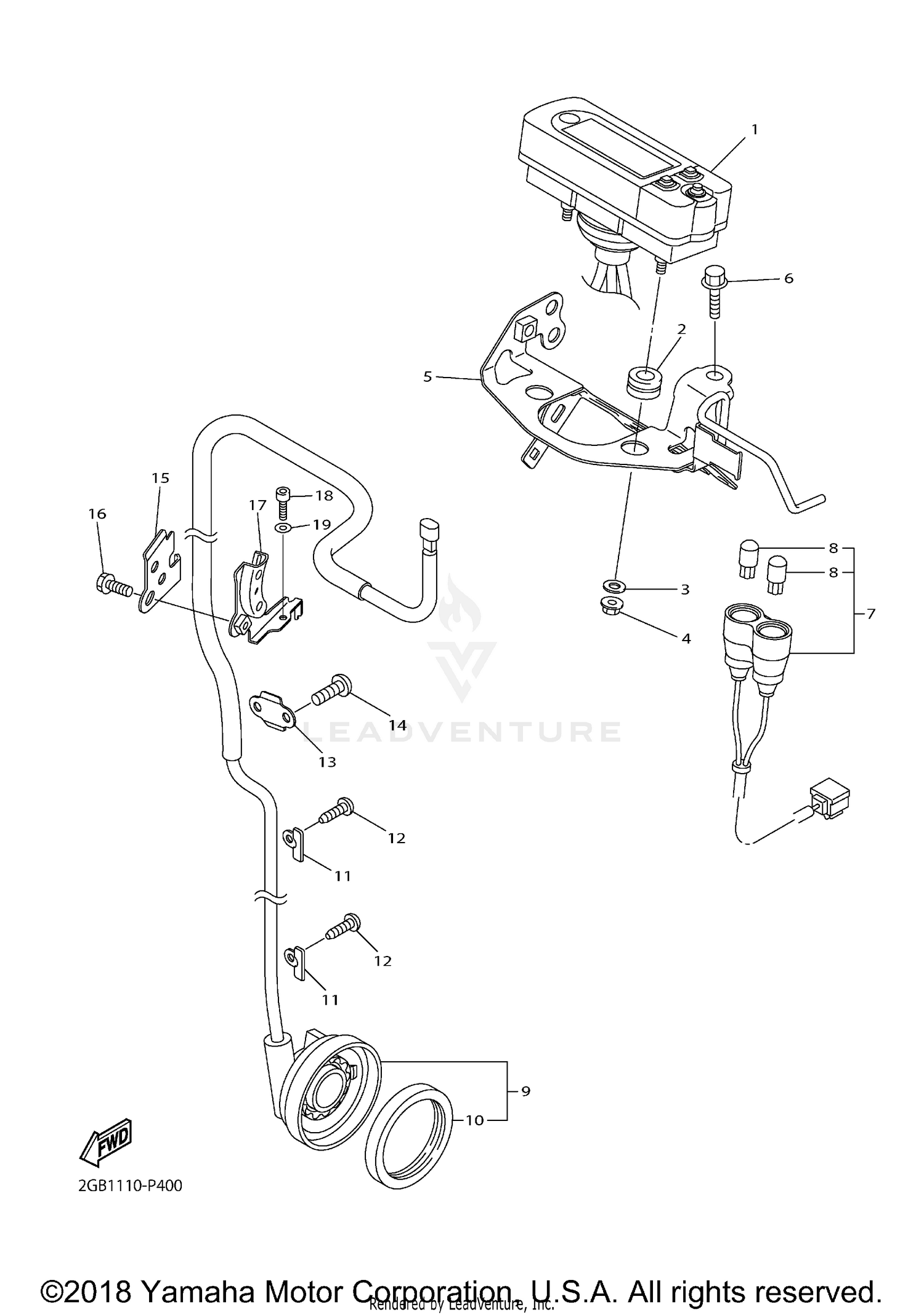

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER ASSY (MPH)
2GB-83500-20-00
|
$466.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14012-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05021-00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95702-05500-00
|
$0.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, METER
2GB-83519-00-00
Superseded by 2GB-83519-01-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06170-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
PILOT LIGHT ASSY
2GB-83530-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, SPEED
2GB-83755-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93105-47007-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE 2
5TJ-8375F-C0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
97702-40010-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE 1
5TJ-8375E-C0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92012-05008-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
2GB-83595-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06105-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 1
2GB-23591-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92012-06012-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
