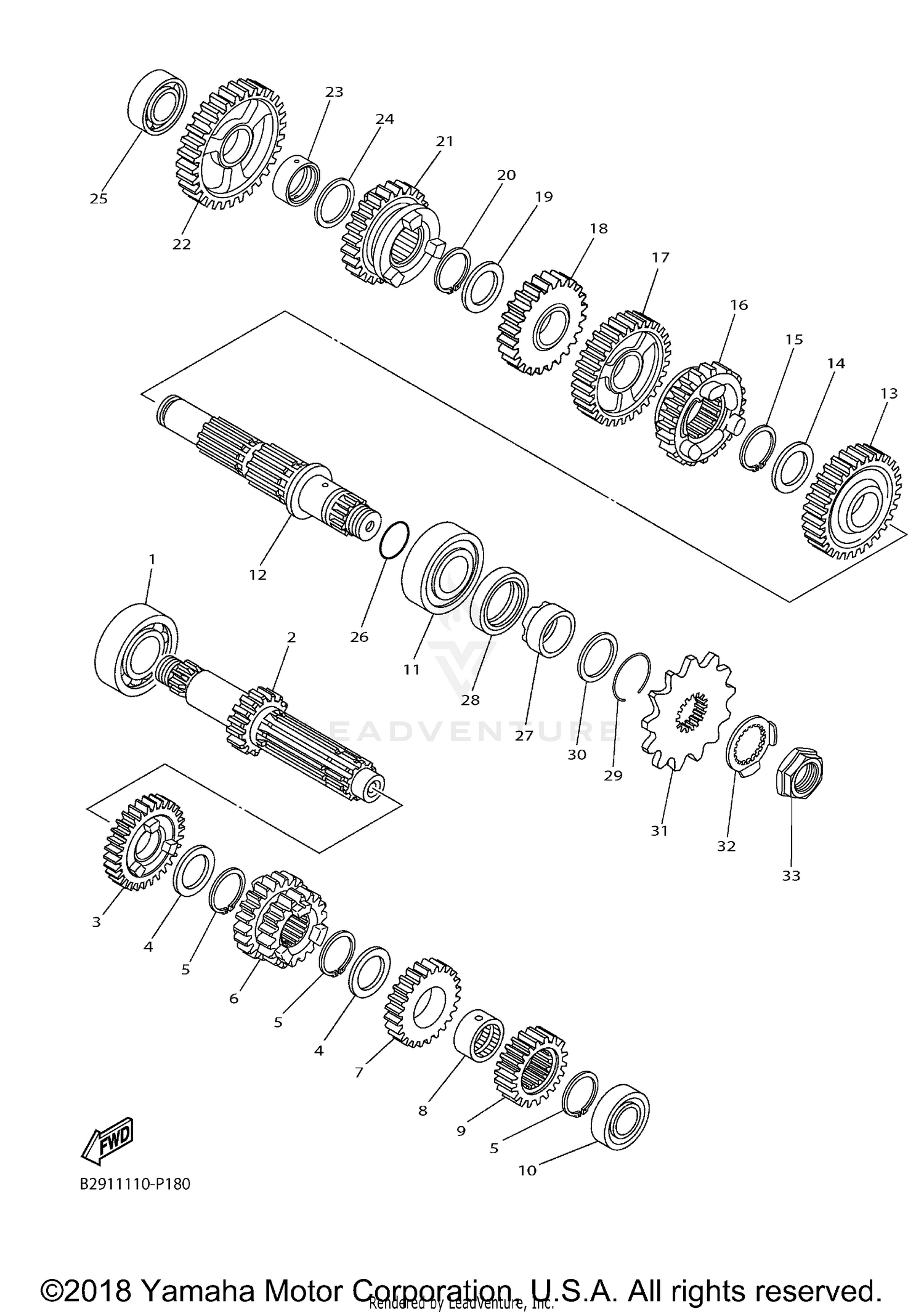

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, MAIN
2GB-17411-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 6TH PINION (27T)
2GB-17161-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-20008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
2GB-17131-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION (23T)
2GB-17151-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-20006-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION
2GB-17121-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20336-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-27209-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVE AXLE ASSY., 2
2GB-1742A-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 2ND WHEEL
2GB-17221-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90209-23012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93410-26067-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 5TH WHEEL (22T)
2GB-17251-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 3RD WHEEL
2GB-17231-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 4TH WHEEL
2GB-17241-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-20008-00
|
$10.49 | ||
|
Unavailable |
|||
|
#20
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
GEAR, 6TH WHEEL (22T)
2GB-17261-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 1ST WHEEL (31T)
2GB-17211-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-17012-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-196A4-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-22033-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93102-28012-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
93450-40N50-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-29M00-00
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPROCKET, DRIVE (13T)
9383B-13218-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK
90215-20003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-18001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
