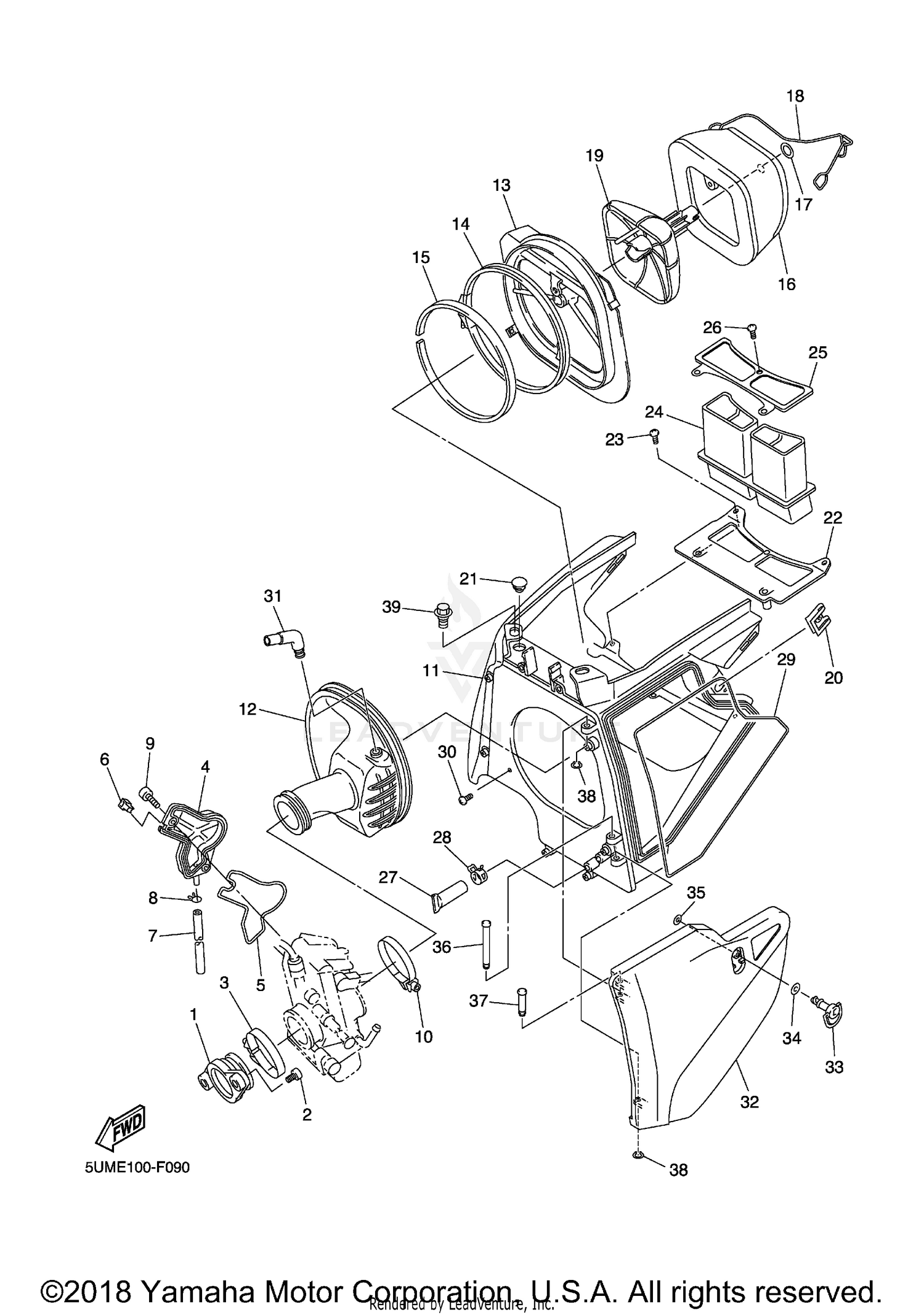

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
5XC-13597-30-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-57010-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 1
5TA-14293-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
5TA-14227-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL
5TA-14239-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE
5TA-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-61002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
5UM-14401-E0-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER 1
5UM-14453-E0-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, GUIDE
5TJ-14459-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5NY-14455-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5NY-14442-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ELEMENT, AIR CLEANER
5UM-14451-E0-00
Superseded by 5UM-14451-E1-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
5TJ-14475-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BINDER 1
5UM-1441G-E0-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE
5TJ-14458-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, SPRING
4XV-2177L-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-07043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUCT
5UM-14437-E0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUCT
5UM-1443A-E0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER 1
5UM-14417-E0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Unavailable |
|||
|
#27
PIPE, DRAIN
5BF-1443E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL
5UM-14462-E0-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Unavailable |
|||
|
#31
PIPE
5TJ-14419-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, CLEANER CASE 1
5UM-1441A-E0-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HEAD
3FV-28386-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPECIAL 1
2TK-21757-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPECIAL 1
5TJ-21757-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN
90249-05005-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN
90249-05004-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
99002-04600-00
Superseded by 99080-04600-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90109-067F4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
