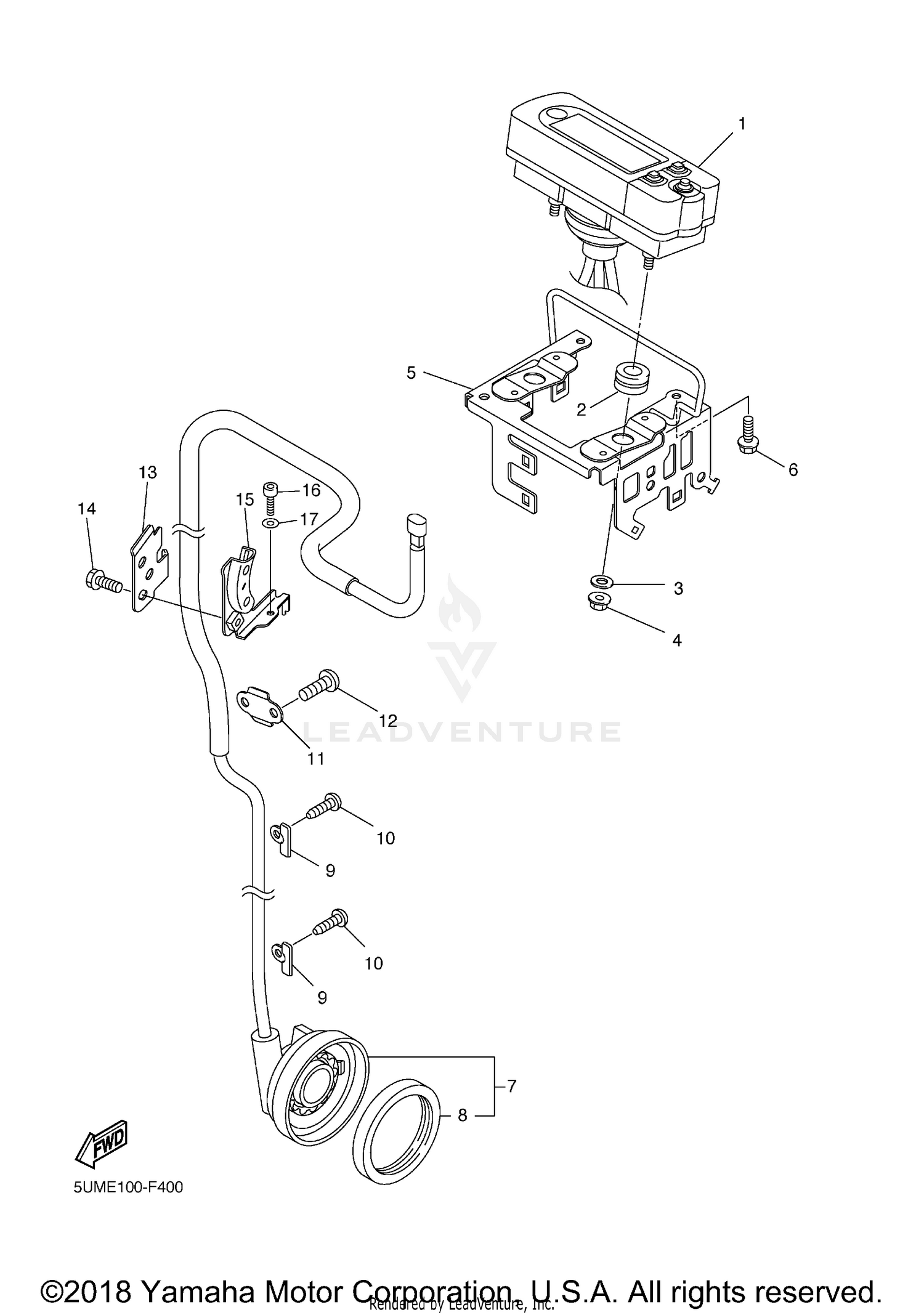

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY (MILE)
5TJ-83500-E0-00
|
$372.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05021-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, METER
5UM-83519-E0-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR, SPEED
5TJ-83755-C1-00
Superseded by 5TJ-83755-C3-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE 2
5TJ-8375F-C0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97702-40010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE 1
5TJ-8375E-C0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92012-05008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
5UM-83595-E0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06105-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 1
5UM-23591-E0-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
