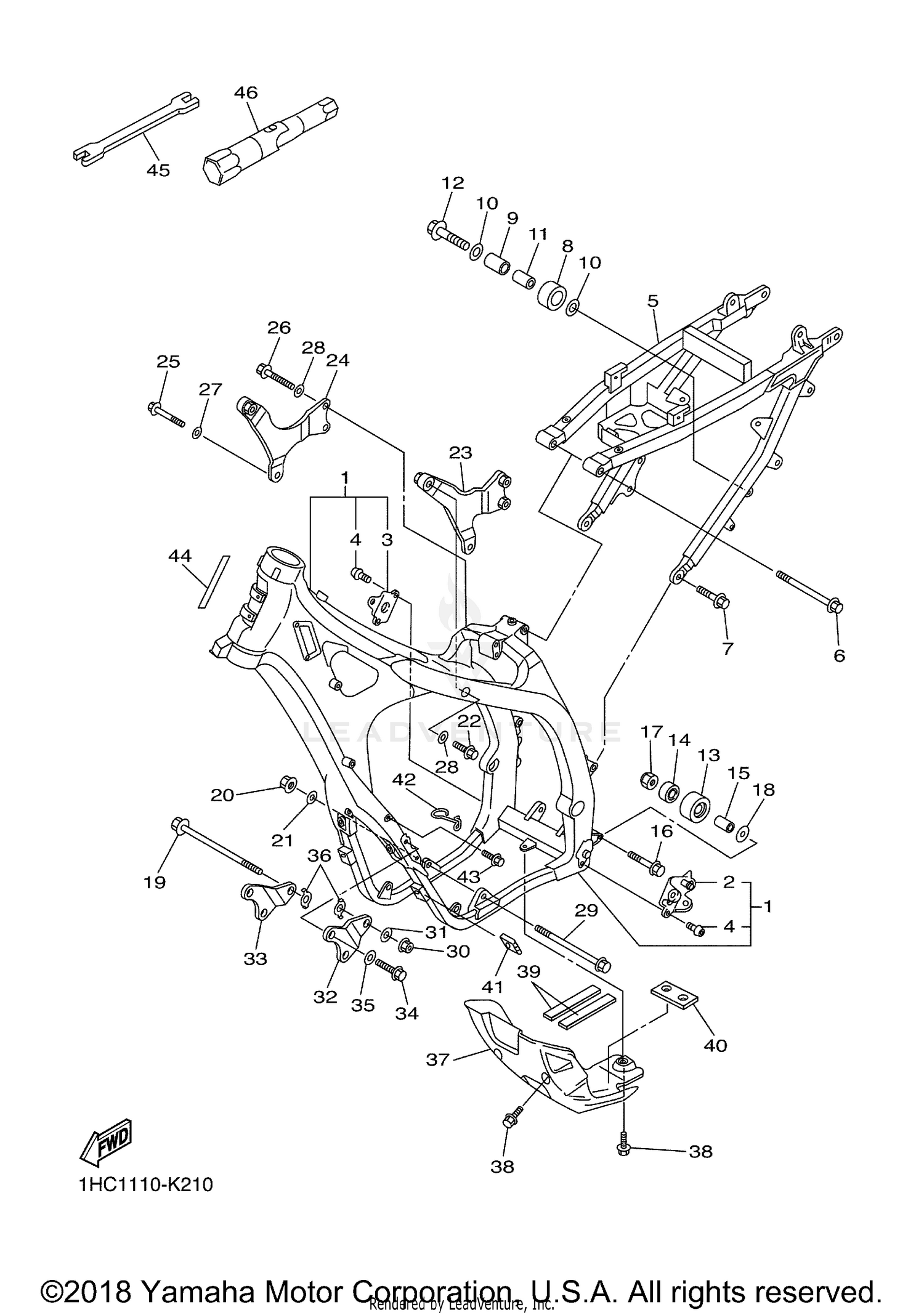

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5UM-21101-E0-00
|
$3,211.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST
5UM-21447-E0-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
1C3-21448-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
REAR FRAME COMP.
5UM-21190-E0-00
|
$474.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-08156-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-08307-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08133-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10174-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-08150-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR UPPER 1
5UM-21425-E0-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, REAR UPPER 2
5UM-21426-E0-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
90105-08147-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
90105-10176-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
BRACKET, FRONT LOWER 1
5UM-21417-E0-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET, FRONT LOWER 2
5UM-21418-E0-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-08143-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
92902-08200-00
|
$0.25 | ||
|
Unavailable |
|||
|
#36
PLATE, PATCH
5XC-21456-90-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUARD, ENGINE 1
5UM-2147A-E0-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, WITH WASHER
90119-06166-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER 2
5UM-21486-E0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
DAMPER, RUBBER 1
5UM-21485-E0-00
Superseded by 5UM-21485-E1-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, PATCH
5UM-21455-E0-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GUIDE, CABLE
5XC-21288-90-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
90105-05014-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#44
SEAL
5UM-21268-E0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WRENCH, HEXAGON
5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOX, SPARK PLUG
5TA-2814F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
