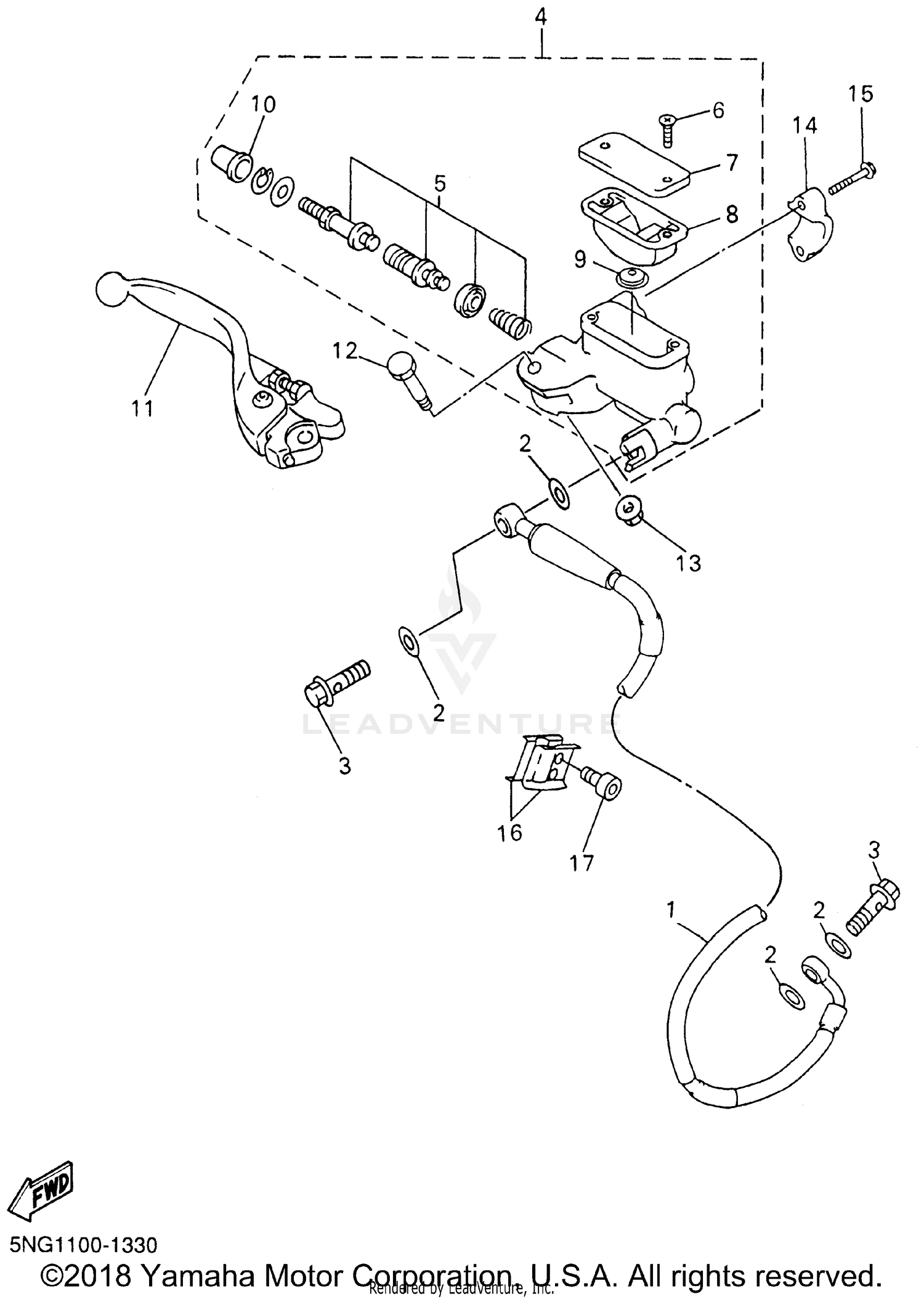

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BRAKE 1
5GS-25872-00-00
|
$229.49 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB
5MV-W2587-00-00
Superseded by 5MV-W2587-01-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER KIT, MASTER
5MV-W0041-00-00
Superseded by 5MV-W0041-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, RESERVOIR
5MV-25852-00-00
Superseded by 5MV-25852-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM, RESERVOIR
56A-25854-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR ASSY
8CR-25715-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#10
BOOT, MASTER CYLINDER
5G2-25868-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER 2
5MV-83922-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, LEVER
5MV-2589F-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, MASTER CYLINDER
5MV-25867-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FITTING
5MV-25833-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-16258-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
