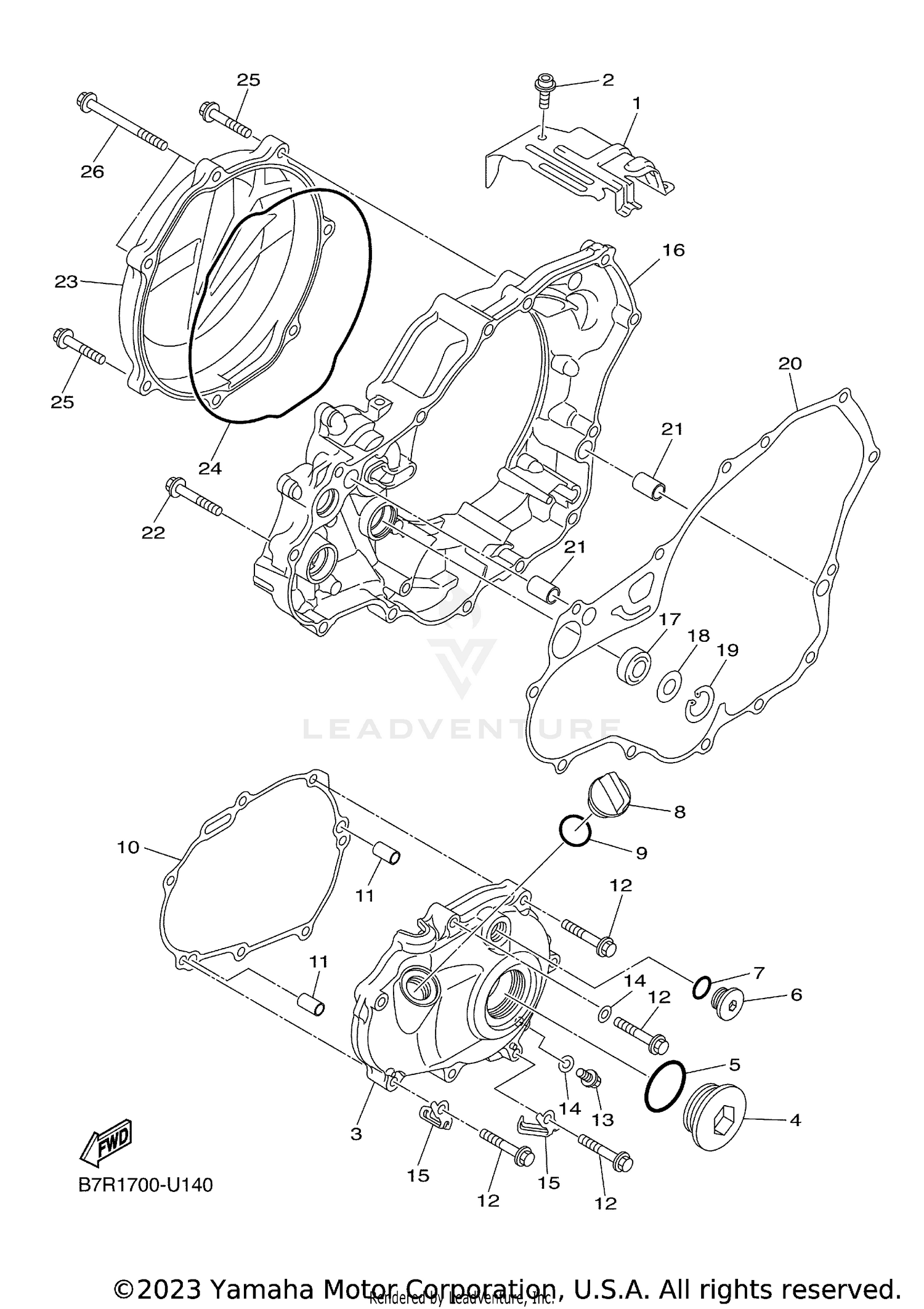

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, STARTING MOTO
B3J-15436-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET
90110-06427-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CRANKCASE 1
BR9-15411-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-36007-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-357A3-00
Superseded by 93210-35804-00
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14021-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, OIL
3Y1-15363-10-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-19123-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CRANKCASE COVER 1
BR9-15451-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-06030-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06012-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90465-08062-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CRANKCASE 3
BR9-15431-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93101-14164-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99009-22500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, CRANKCASE COVER 3
BR9-15462-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06030-00
|
$3.64 | ||
|
Unavailable |
|||
|
#23
COVER, 1
33D-15415-20-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Gasket
33D-15453-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95022-06025-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95022-06070-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
