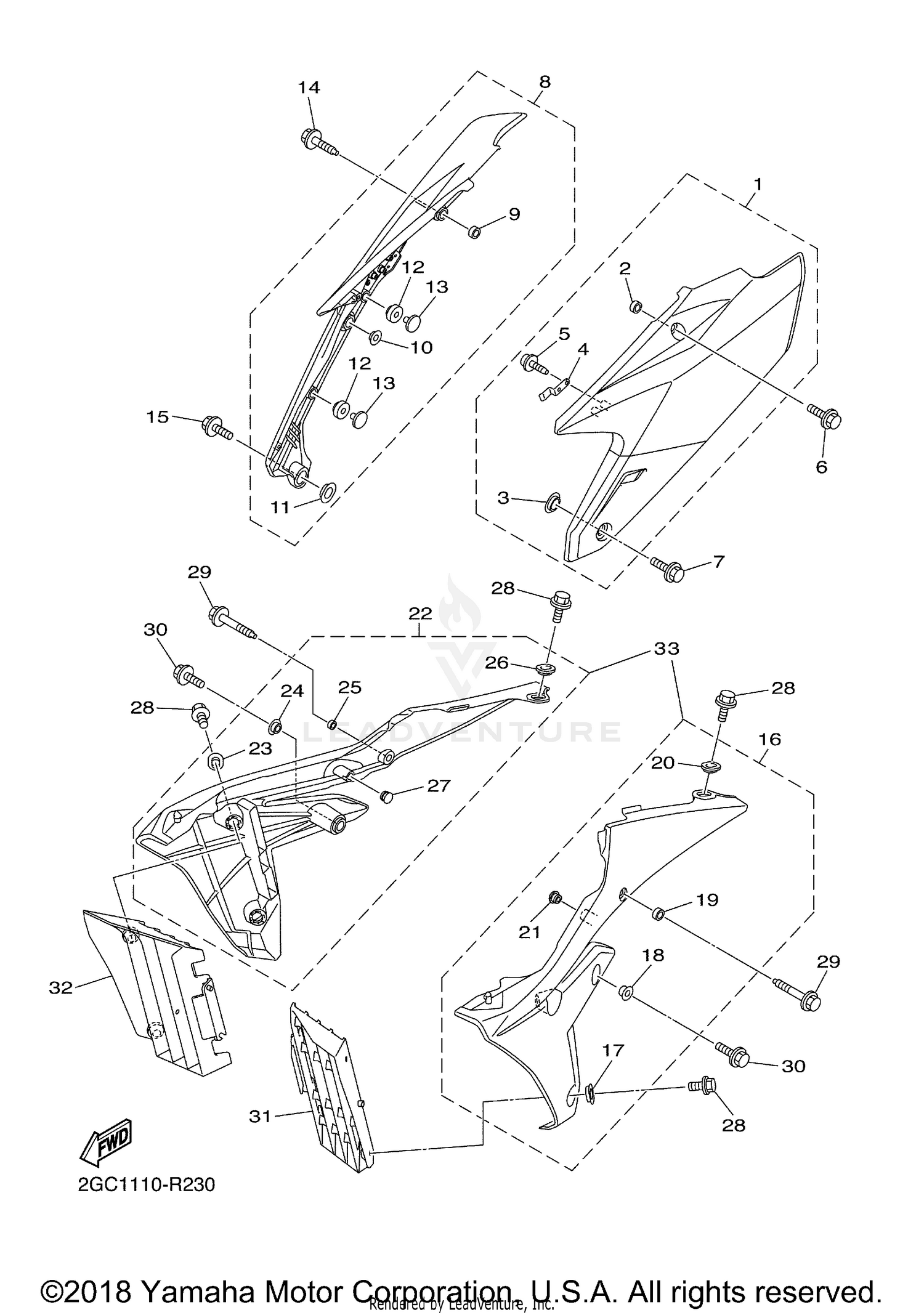

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSY 1
1SL-21710-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-08057-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
5TA-21749-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK
1SL-2176M-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-40012-00
Superseded by 97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-08230-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
SIDE COVER ASSY 2
2GB-21720-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-08057-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
COLLAR
5BE-21749-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
5TA-21749-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
GROMMET
1SL-21719-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
1DX-21746-00-00
Superseded by 1DX-21746-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08230-00
|
$4.05 | ||
|
Unavailable |
|||
|
#15
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Unavailable |
|||
|
#16
SIDE COVER INSERT ASSY. 3
2GC-217R0-60-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SIDE COVER ASSY 3 (W/O GRAPHIC)
2GC-21730-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
17D-21749-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-11009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
1SL-21748-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SIDE COVER ASSY 4 (W/O GRAPHIC)
2GC-21740-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SIDE COVER INSERT ASSY. 4
2GC-217S0-60-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
17D-21749-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#24
COLLAR
90387-11009-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
COLLAR
1SL-21748-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#27
GROMMET
90480-10068-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
90105-06179-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-06203-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
PANEL 1
1SL-2172A-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PANEL 2
1SL-2172F-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SIDE COVER KIT
1SL-W003D-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
