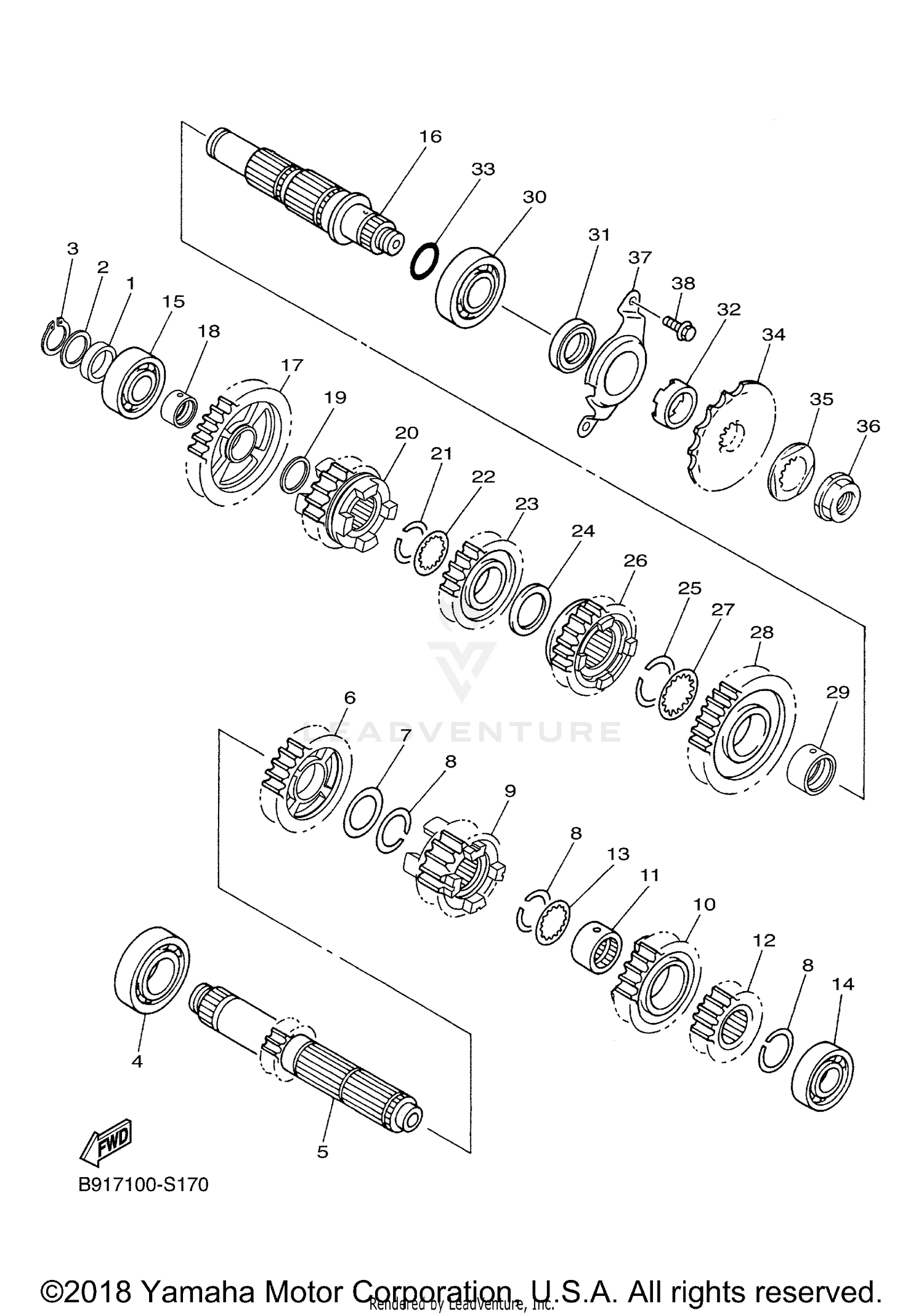

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR
90387-20031-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-20272-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20532-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, MAIN
5TJ-17411-30-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH PINION
5TJ-17151-20-00
Superseded by 5TJ-17151-21-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 3RD PINION (16T)
2GC-17131-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 4TH PINION (20T)
5TJ-17141-20-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-21005-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND PINION
5TJ-17121-20-00
Superseded by 5TJ-17121-30-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-21332-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-00447-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVE AXLE ASSY
1SL-17402-00-00
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 1ST WHEEL (29T)
5TJ-17211-20-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-20028-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-203E7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 5TH WHEEL (21T)
2GC-17251-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
WASHER
90209-22008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 3RD WHEEL
5TJ-17231-20-00
Superseded by B3J-17231-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
CIRCLIP
93440-28062-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH WHEEL (21T)
5TJ-17241-20-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
90209-26348-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 2ND WHEEL
5TJ-17221-20-00
Superseded by 5TJ-17221-30-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-28012-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-205A5-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-32014-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-2513F-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING
93210-22164-00
Superseded by 93210-22298-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE (13T)
9383E-13233-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-21003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-20001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, COVER
1SL-17471-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
90105-06081-00
Superseded by 95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
