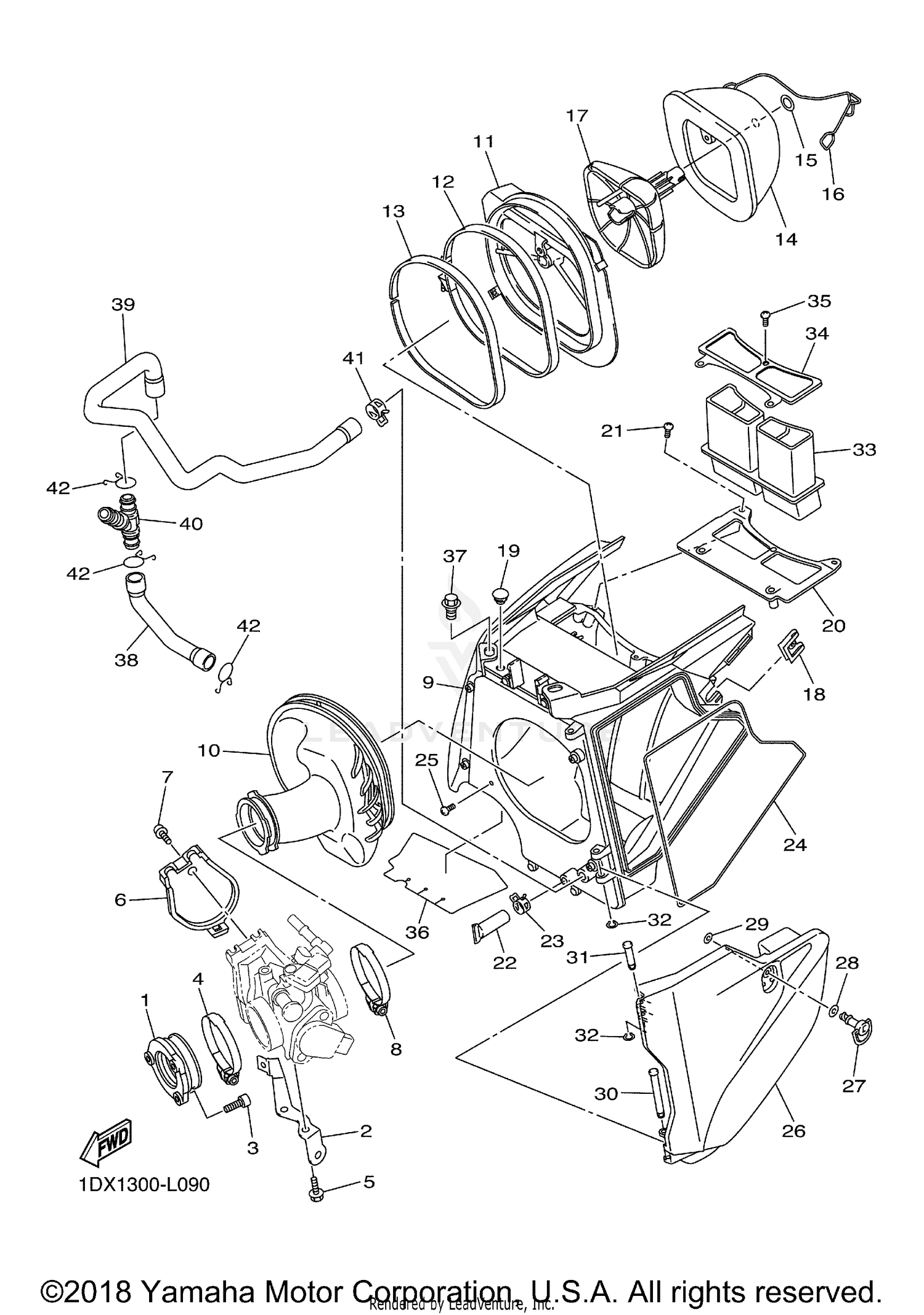

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
1DX-13597-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET 1
1DX-14291-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-58006-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER 1
1DX-14293-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-05066-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP ASSY
90450-58006-00
|
$18.99 | ||
|
Unavailable |
|||
|
#9
AIR CLEANER CASE ASSY
1DX-14401-00-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, AIR CLEANER 1
1DX-14453-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, GUIDE
5TJ-14459-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
5NY-14455-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
5NY-14442-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ELEMENT, AIR CLEANER
5UM-14451-E0-00
Superseded by 5UM-14451-E1-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
5TJ-14475-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BINDER 1
5UM-1441G-E0-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE
5TJ-14458-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, SPRING
4XV-2177L-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG
90338-07043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUCT
5UM-14437-E0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, DRAIN
5BF-1443E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL
5UM-14462-E0-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Unavailable |
|||
|
#26
COVER, CLEANER CASE 1
1DX-1441A-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HEAD
3FV-28386-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPECIAL 1
2TK-21757-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPECIAL 1
5TJ-21757-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN
90249-05005-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN
90249-05004-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
99002-04600-00
Superseded by 99080-04600-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUCT
5UM-1443A-E0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER 1
5UM-14417-E0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Unavailable |
|||
|
#36
INSULATOR
1DX-14271-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
90109-06245-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, BREATHER 2
1DX-11167-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE, BREATHER 3
1DX-11126-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WAY 3
90413-14001-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
CLIP
90467-160A4-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
