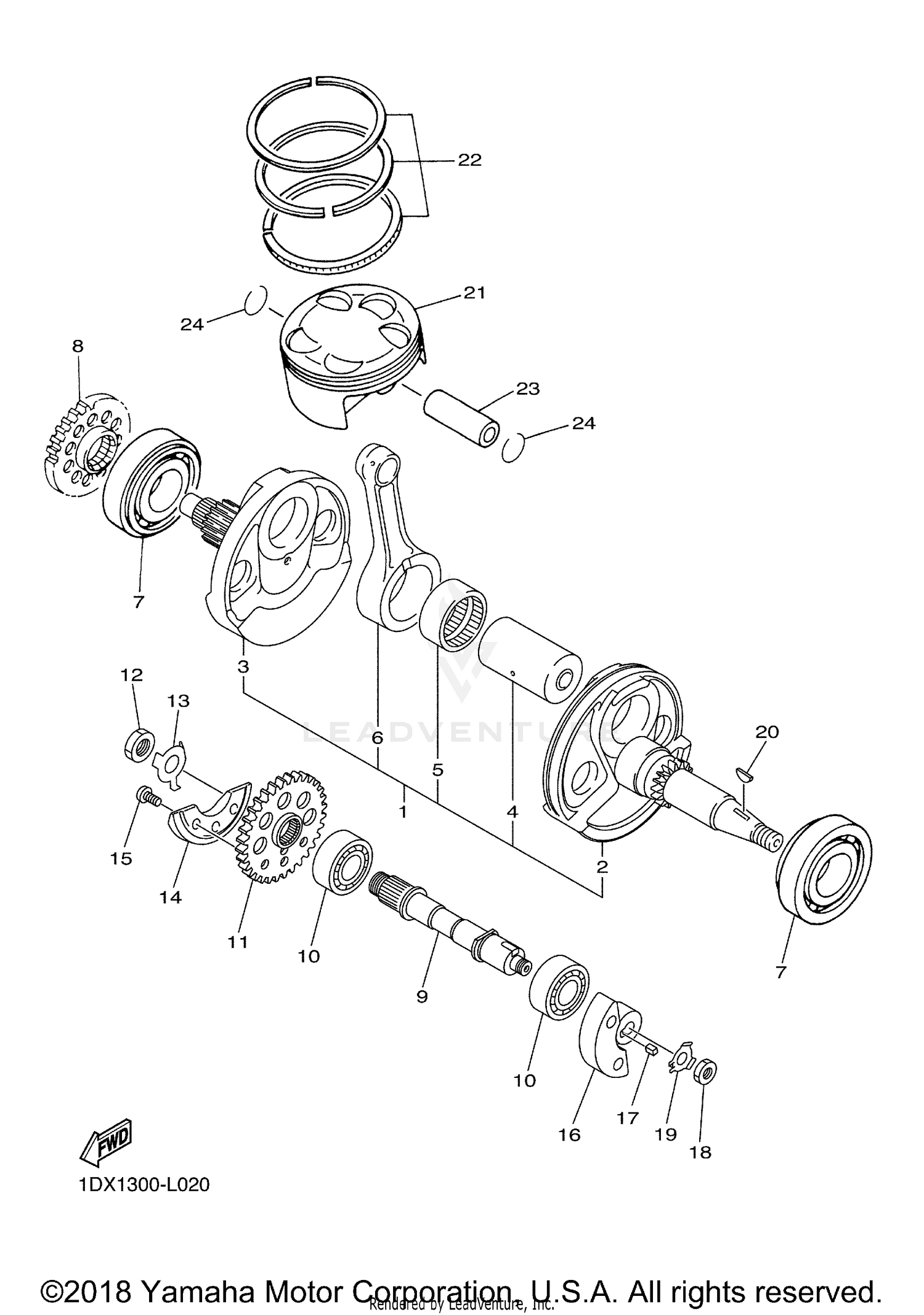

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
1DX-11400-00-00
|
$622.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
1DX-11412-00-00
|
$256.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1DX-11422-00-00
|
$277.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
5TG-11681-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63458-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
1DX-11651-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30633-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
2S2-11536-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 1
2S2-11455-00-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93304-20310-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, BALANCE WEIGHT
2S2-11531-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-14287-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WEIGHT 1
1DX-11454-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WEIGHT 2
2S2-11464-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, STRAIGHT
90282-05034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-10405-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, LOCK
90215-10009-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
KEY, WOODRUFF
90280-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON (STD)
1DX-11631-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON RING SET (STD)
5JG-11603-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, PISTON
33D-11633-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP, INNER
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
