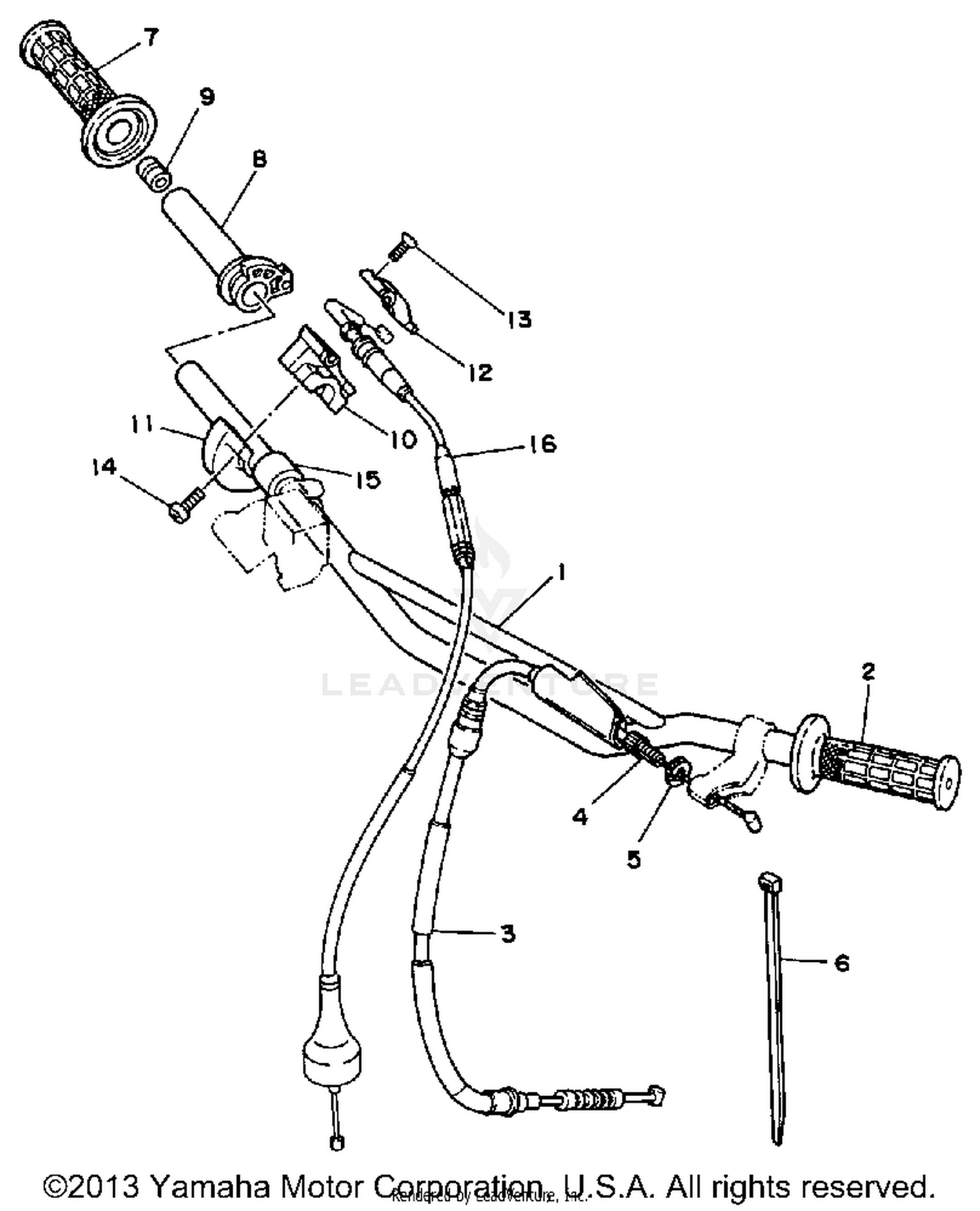

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3XJ-26111-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#2
GRIP (LEFT)
1LX-26241-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CLUTCH
4AA-26335-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90123-08090-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-08401-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-14117-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP (RIGHT)
1LX-26242-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, THROTTLE GUIDE
23X-26243-00-00
Superseded by 23X-26243-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-12192-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, GRIP UPPER
23X-26281-00-00
Superseded by 23X-26281-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, GRIP UNDER
431-26282-01-98
Superseded by 431-26282-03-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, WIRE
5X2-2628H-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
90560-22281-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, THROTTLE 1
4AA-26311-00-00
|
$41.99 | ||
|
Unavailable |
|||
