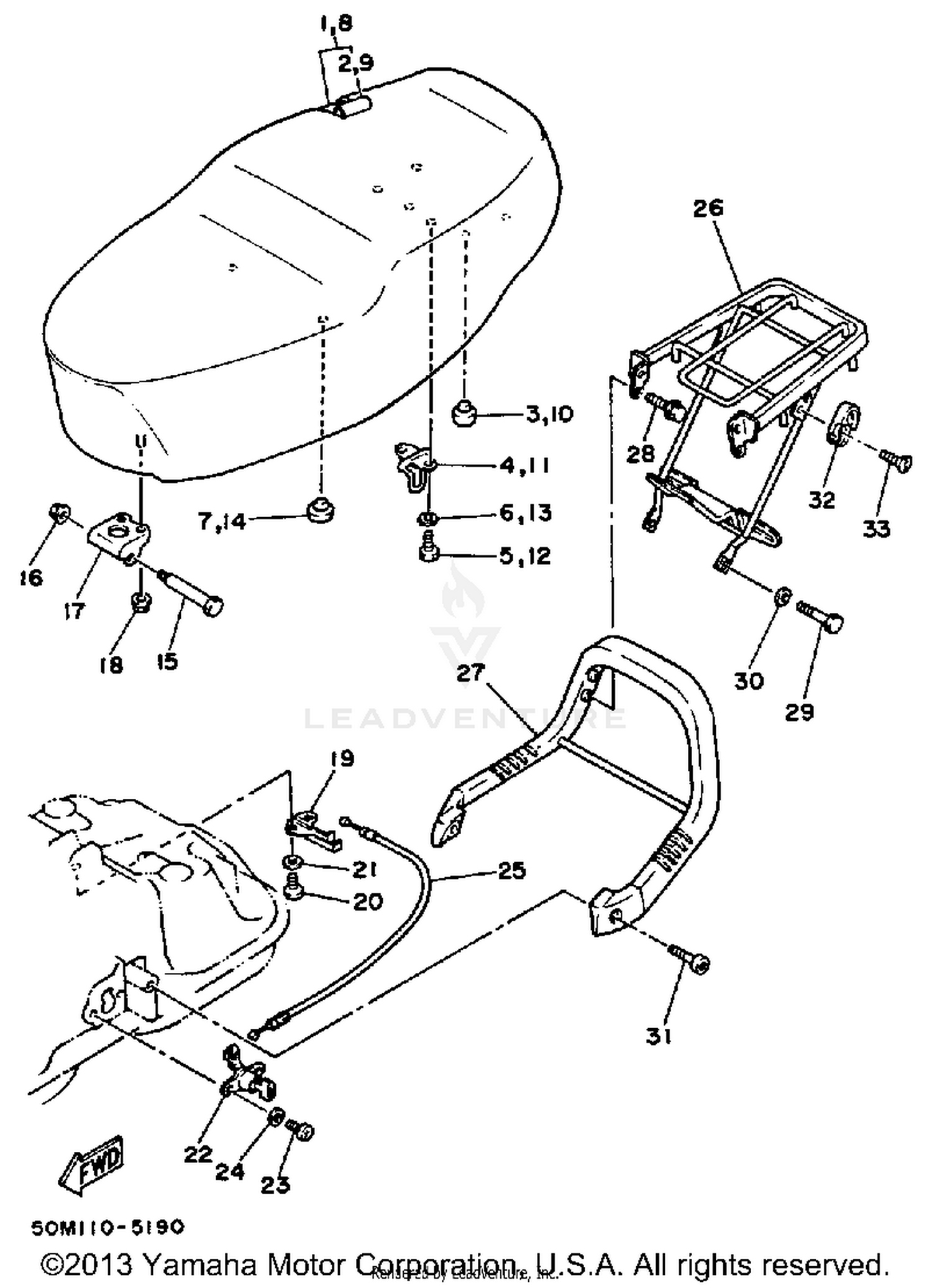

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLYASSY
50V-W2472-00-00
|
$362.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT YAMAHA BLACK
50M-24731-00-00
Superseded by 50M-24731-20-00
|
$190.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, SEAT
4G0-24723-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
50W-24728-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOUBLE SEAT ASSY
50M-W2472-10-00
Superseded by 3KR-24730-00-00
|
$396.99 | ||
|
Unavailable |
|||
|
#9
COVER, SEAT YAMAHA BLACK
50M-24731-20-00
|
$190.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, SEAT
4G0-24723-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#11
BRACKET, SEAT
50W-24728-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-06504-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
HINGE, SEAT
2T4-24726-10-00
|
$11.99 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Unavailable |
|||
|
#19
SEAT LOCK ASSY
50W-W247E-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT LOCK ASSY
3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
WIRE, SEAT HOOK
50W-2478E-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#26
CARRIER, REAR
50M-24842-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#27
STAY, REAR
50W-24819-00-00
|
$319.99 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HELMET HANGER ASSY
55E-21308-00-00
Superseded by 5H0-21308-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
