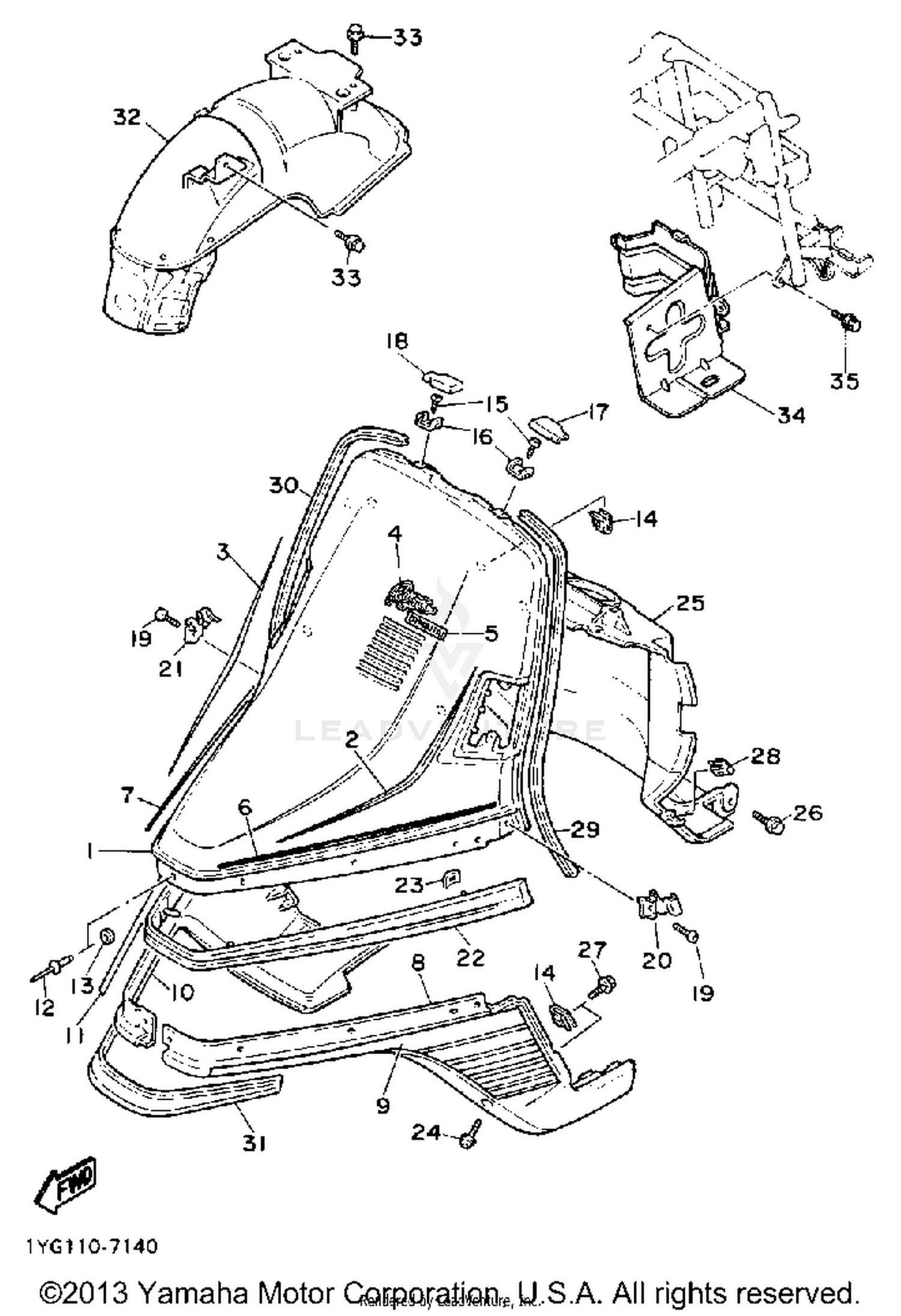

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
25G-21511-00-JW
|
$259.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FRONT FENDER 1
1YG-21571-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FRONT FENDER 2
1YG-21572-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM (RIVA)
50M-28328-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM
4X8-24786-00-00
|
$4.11 | ||
|
Unavailable |
|||
|
#6
GRAPHIC 1
1YG-21569-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#7
GRAPHIC 2
1YG-21579-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#8
OVER, FENDER
25G-21551-00-KE
|
$104.99 | ||
|
Unavailable |
|||
|
#9
GRAPHIC, FRONT FENDER 3
1XX-21573-20-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
FENDER, OVER 2
25G-21555-00-KE
|
$94.99 | ||
|
Unavailable |
|||
|
#11
GRAPHIC, FRONT FENDER 4
1XX-21574-20-00
|
$29.99 | ||
|
Unavailable |
|||
|
#12
RIVET, BLIND
90267-48107-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-04325-00
Superseded by 90201-04027-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT 1
25G-21535-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
|
$0.60 | ||
|
Unavailable |
|||
|
#16
WASHER, LEG SHIELD
25G-28323-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
CAP
25G-28349-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
CAP 2
25G-2834J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, LEG SHIELD L (L)
46T-28321-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#21
STAY, LEG SHIELD R (R)
46T-28322-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#22
MOLD, FENDER
46T-21529-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#23
NUT, SPRING
90183-05003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, WITH WASHER
90159-06067-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FENDER, INNER
25G-21552-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#26
BOLT, WITH WASHER
90119-06052-00
Superseded by 90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WITH WASHER
90119-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT 1
25G-21535-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
MOLD 1
46T-28345-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#30
MOLD 2
46T-28346-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#31
FLAP, FRONT FENDER
46T-21521-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#32
MUD GUARD
25G-W2162-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#33
BOLT, WITH WASHER
90119-06018-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
FLAP
1XX-21691-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
