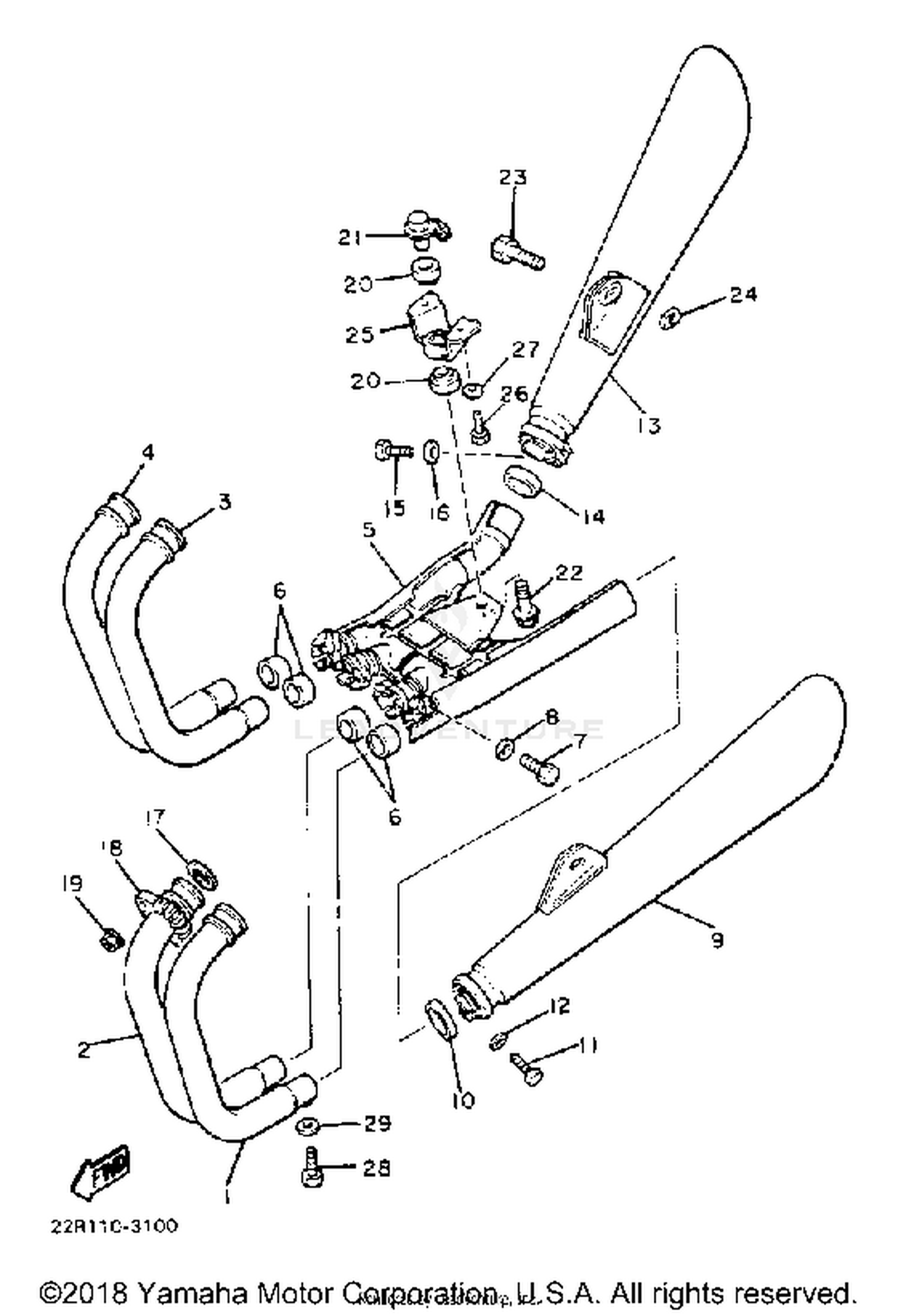

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
22N-14611-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST R
22N-14621-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
PIPE, EXHAUST 3
22N-14631-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#4
PIPE, EXHAUST 4
22N-14641-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#5
JOINT, EXHAUST L
33N-14615-00-00
|
$290.99 | ||
|
Unavailable |
|||
|
#6
GASKET, MUFFLER
4H7-14714-00-00
Superseded by 4DN-14714-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-08020-00
Superseded by 97017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUFFLER L
33N-14711-00-00
|
$224.99 | ||
|
Unavailable |
|||
|
#10
GASKET, EXHAUST 4
3JJ-14653-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97016-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#13
MUFFLER R
33N-14721-00-00
|
$216.99 | ||
|
Unavailable |
|||
|
#14
GASKET, EXHAUST 4
3JJ-14653-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97016-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#17
GASKET, EXHAUST PIPE
4H7-14613-00-00
Superseded by 4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, RING
22N-14612-00-00
Superseded by 5G2-14612-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#19
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, MUFFLER
36Y-14747-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
1AE-14638-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95816-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-10761-00
Superseded by 90109-101E6-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPEC''L SHAPE
90179-10276-00
|
$3.80 | ||
|
Unavailable |
|||
|
#25
STAY, MUFFLER
4K0-14791-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97016-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
