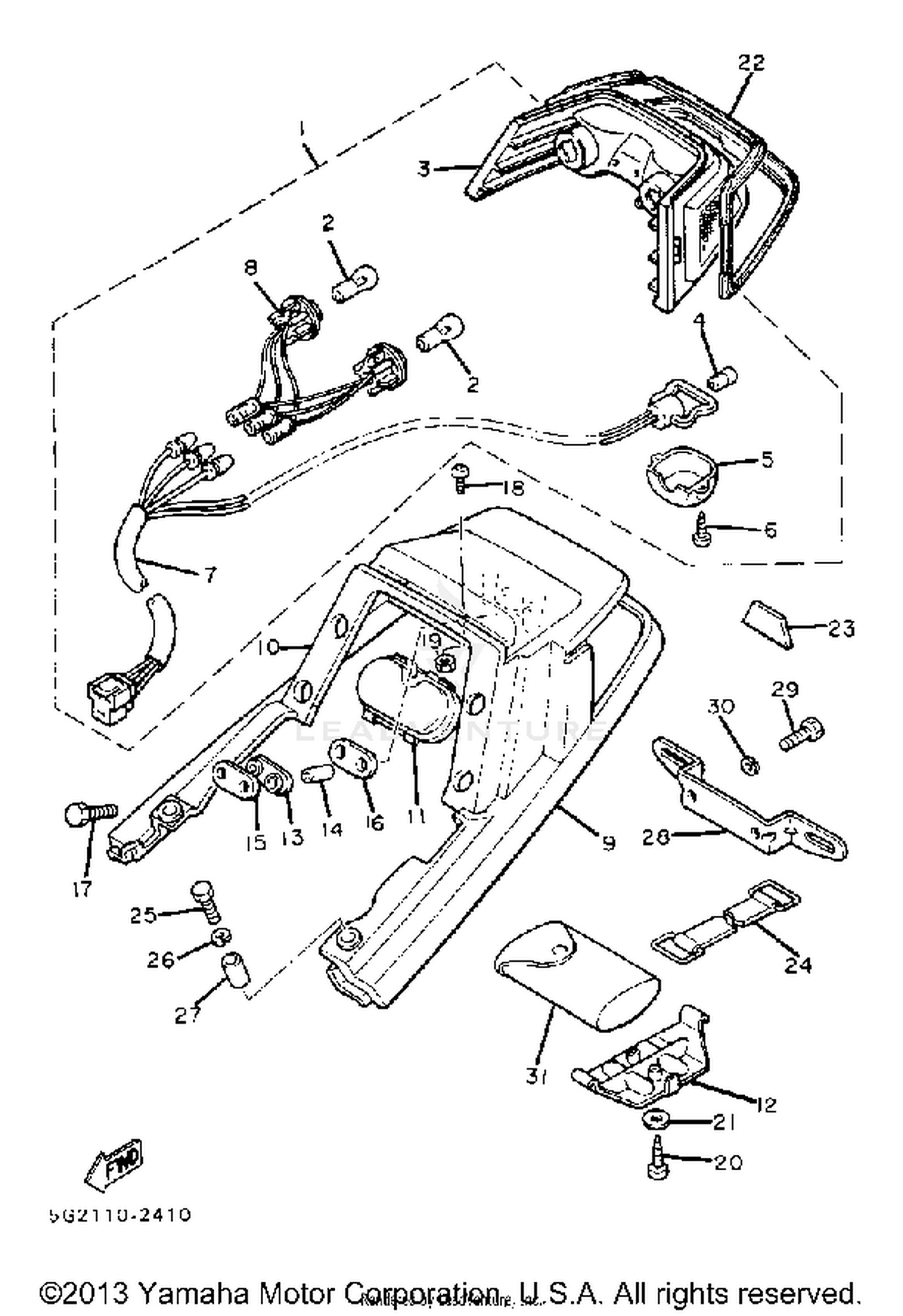

Taillight Tail Cover Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
5G2-84710-60-00
|
$148.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSEMBLY
5G2-84540-60-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
BULB
4H7-84744-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS, LICENSE LITE
5G2-84743-60-00
|
$2.97 | ||
|
Unavailable |
|||
|
#6
SCREW, TAPPING
97702-40516-00
Superseded by 97780-40116-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CORD ASSEMBLY
5G2-84735-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
SOCKET CORD ASSEMBLY
5G2-84732-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#9
COVER, TAILLIGHT
5G2-84716-00-6M
|
$130.99 | ||
|
Unavailable |
|||
|
#
COVER, TAILLIGHT
5G2-84716-00-63
|
$103.99 | ||
|
Unavailable |
|||
|
#10
BOX
5G2-2160E-00-00
|
$40.00 | ||
|
Unavailable |
|||
|
#11
LID
5G2-2160F-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#12
HOOK
5G2-2162A-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#13
DAMPER, tail 1
5G2-84736-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#14
COLLAR
5G2-84557-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL
5G2-84725-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#16
SPACER
5G2-84729-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#17
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BIND
98906-05012-00
Superseded by 98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, TAILLIGHT
5G2-84704-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#23
EMBLEM 7
5G2-21787-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#24
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-06500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, LICENSE
5G2-84751-00-98
|
$25.99 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
TOOL KIT (5G2-28100-10)
5G2-28100-00-00
|
$77.99 | ||
|
Unavailable |
|||
