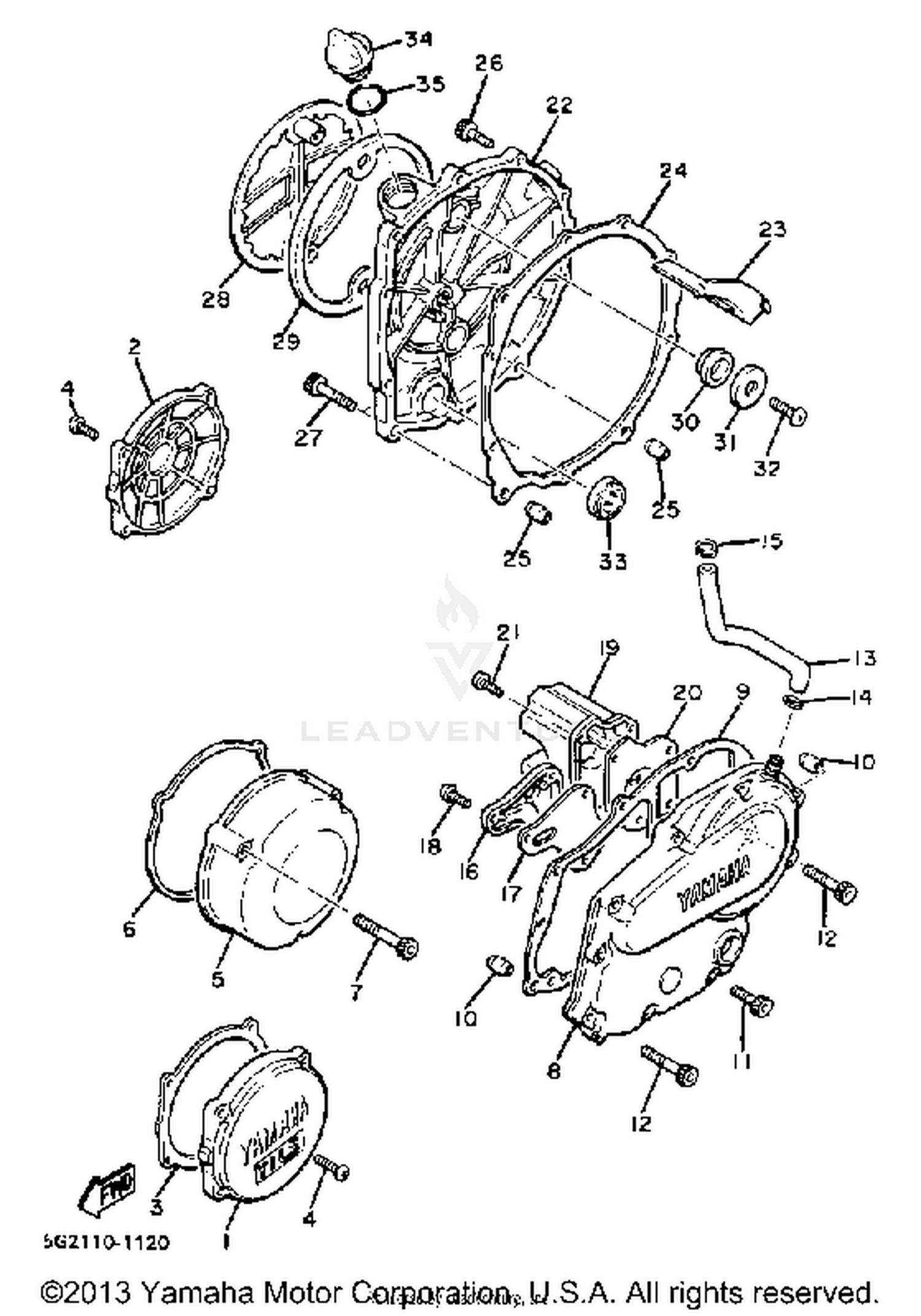

1983 Yamaha XJ750RK SECA CRANKCASE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL PUMP
4V8-15416-01-00
|
$93.99 | ||
|
Unavailable |
|||
|
#2
COVER, OIL PUMP R
4V8-15426-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#3
GASKET, O/PUMP COVER 1
4BB-15456-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98906-06020-00
Superseded by 98907-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, GENERATOR
5G2-15415-00-00
|
$74.82 | ||
|
Unavailable |
|||
|
#6
GASKET 1
4BB-15455-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKCASE COVER ASSEMBLY
5G2-15409-10-00
|
$160.99 | ||
|
Unavailable |
|||
|
#9
GASKET, COVER CASES
4BB-15451-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, BREATHER 1
5G2-11166-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#14
CLIP
90467-14015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90468-08104-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BREATHER 1
4H7-15346-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#17
GASKET
4BB-15457-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BREATHER 2
4H7-15347-00-00
Superseded by 4H7-15347-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
4BB-15467-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
COVER, CRANKCASE R
4K0-15421-01-00
|
$214.99 | ||
|
Unavailable |
|||
|
#23
COVER, OIL PUMP
4H7-15412-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#24
GASKET, CRANKCASE COVER
4BB-15461-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Unavailable |
|||
|
#26
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.50 | ||
|
Unavailable |
|||
|
#28
COVER, CAP
5G2-15417-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#29
RING, RUBBER
4H7-15449-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#30
GROMMET
4H7-15486-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
90209-06096-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
GAUGE, LEVEL
2H7-15361-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG, OIL
2H9-15363-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
93210-27778-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
