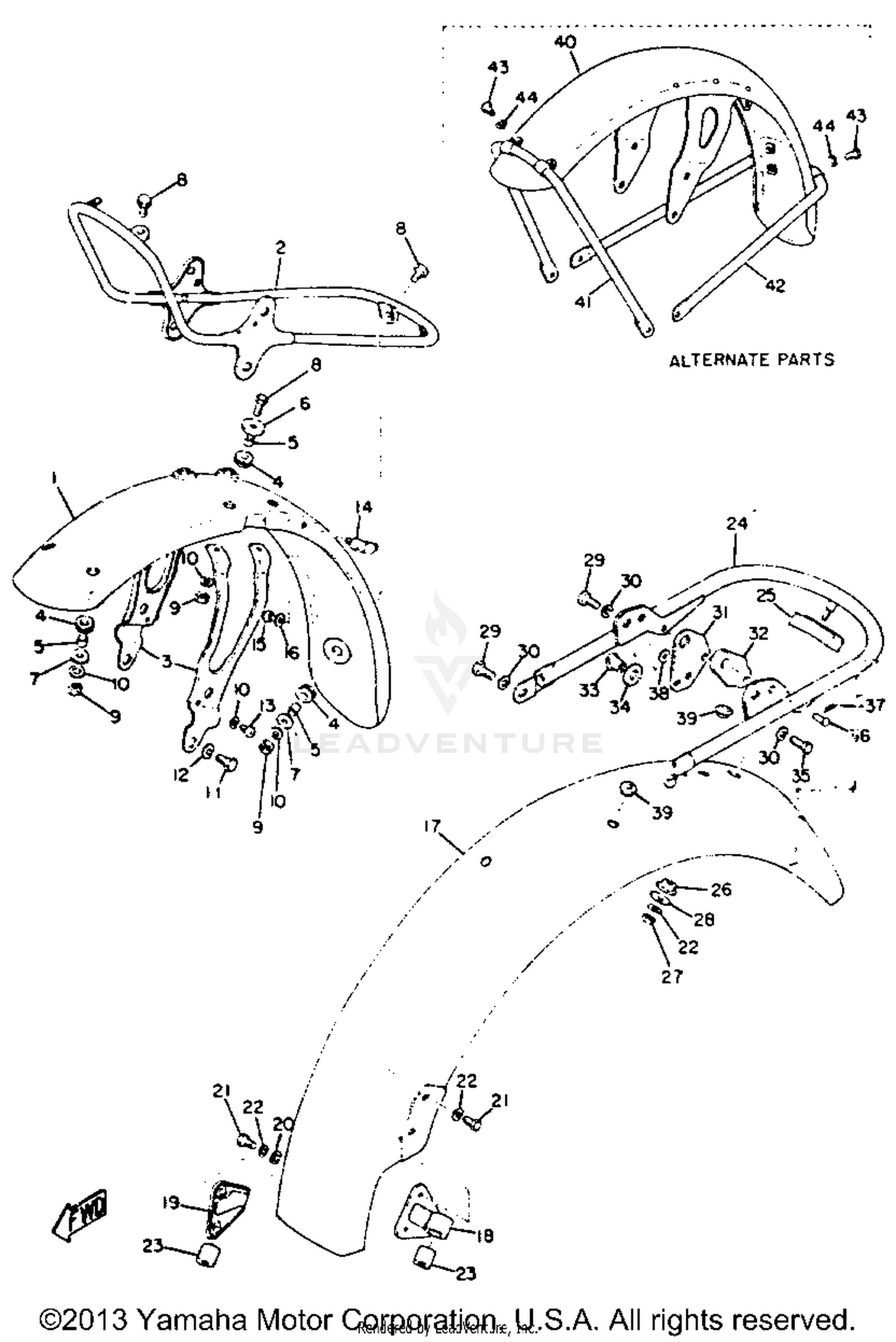

Front Fender - Rear Fender (xs1 - Xs1b) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
256-21510-10-93
|
$94.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FENDER
256-21512-00-00
|
$37.30 | ||
|
Unavailable |
|||
|
#3
STAY, FENDER 1
256-21513-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-062N2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPEC''L SHAP (256-21515
90209-06026-00
|
$3.00 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE
174-21518-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
FENDER, REAR
256-21611-00-93
|
$111.99 | ||
|
Unavailable |
|||
|
#18
STAY, FENDER 1
256-21613-00-00
|
$12.28 | ||
|
Unavailable |
|||
|
#19
STAY, FENDER 2
256-21614-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
DAMPER 1
256-21638-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#24
STAY, REAR
256-21645-00-00
|
$38.38 | ||
|
Unavailable |
|||
|
#
STAY, REAR
256-21645-01-00
|
$47.04 | ||
|
Unavailable |
|||
|
#25
DAMPER 2
256-21639-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#26
DAMPER
256-21649-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#27
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-06072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
STAY, FLASHER 1
256-83318-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#32
DAMPER, FLASHER
256-83341-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#33
NUT, REAR FENDER
248-21635-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-12190-00
Superseded by 90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, CLEVIS
91503-06018-00
|
$0.60 | ||
|
Unavailable |
|||
|
#37
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
GROMMET
90480-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
FENDER, FRONT
256-21510-10-93
|
$94.99 | ||
|
Unavailable |
|||
|
#41
STAY, FENDER 1
256-21513-10-93
|
$15.04 | ||
|
Unavailable |
|||
|
#42
STAY, FENDER 2
256-21514-10-93
|
$15.26 | ||
|
Unavailable |
|||
|
#43
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#44
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
