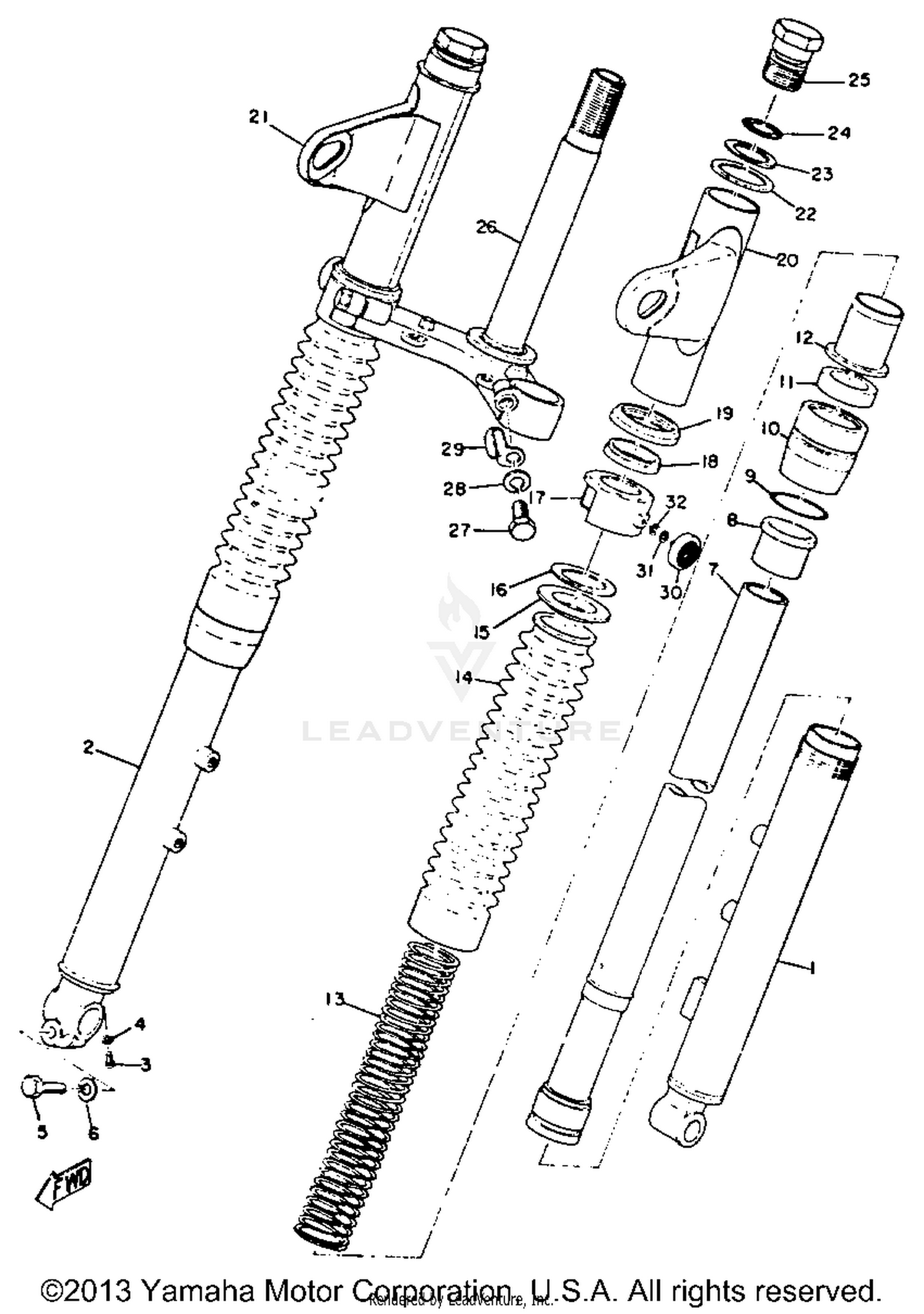

Front Fork (xs1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
256-23100-61-64
|
$254.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
256-23126-62-93
|
$102.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
256-23136-62-93
|
$102.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, INNER 1
256-23124-60-00
|
$99.16 | ||
|
Unavailable |
|||
|
#8
METAL, SLIDE 1
168-23125-01-00
|
$10.40 | ||
|
Unavailable |
|||
|
#9
O-RING
156-23147-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
OUTER NUT
211-23150-40-00
|
$35.99 | ||
|
Unavailable |
|||
|
#11
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, SPRING LOWER
168-23143-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#13
SPRING, FRONT FORK
256-23141-60-00
|
$14.62 | ||
|
Unavailable |
|||
|
#14
BOOT, FRONT FORK
211-23191-40-00
|
$31.54 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING UPPER
211-23142-40-00
|
$3.76 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL SEAL
168-23146-00-00
|
$0.41 | ||
|
Unavailable |
|||
|
#17
COVER, OUTER 1
256-23122-60-00
|
$18.22 | ||
|
Unavailable |
|||
|
#18
GASKET
256-23163-60-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
GUIDE, COVER LOWER
256-23116-60-00
|
$10.60 | ||
|
Unavailable |
|||
|
#20
COVER, UPPER 1
256-23121-60-64
|
$40.99 | ||
|
Unavailable |
|||
|
#21
COVER, UPPER 2
256-23131-60-64
|
$46.99 | ||
|
Unavailable |
|||
|
#22
GUIDE, COVER UPPER
168-23115-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#23
WASHER, CAP
256-23112-61-00
|
$4.80 | ||
|
Unavailable |
|||
|
#24
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#25
BOLT, CAP
256-23111-60-00
|
$20.99 | ||
|
Unavailable |
|||
|
#26
UNDER BRACKET
306-23340-09-33
|
$124.99 | ||
|
Unavailable |
|||
|
#27
BOLT 1
5J0-23346-00-00
Superseded by 122-23346-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#30
REFLECTOR, FRONT 1
341-85111-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
