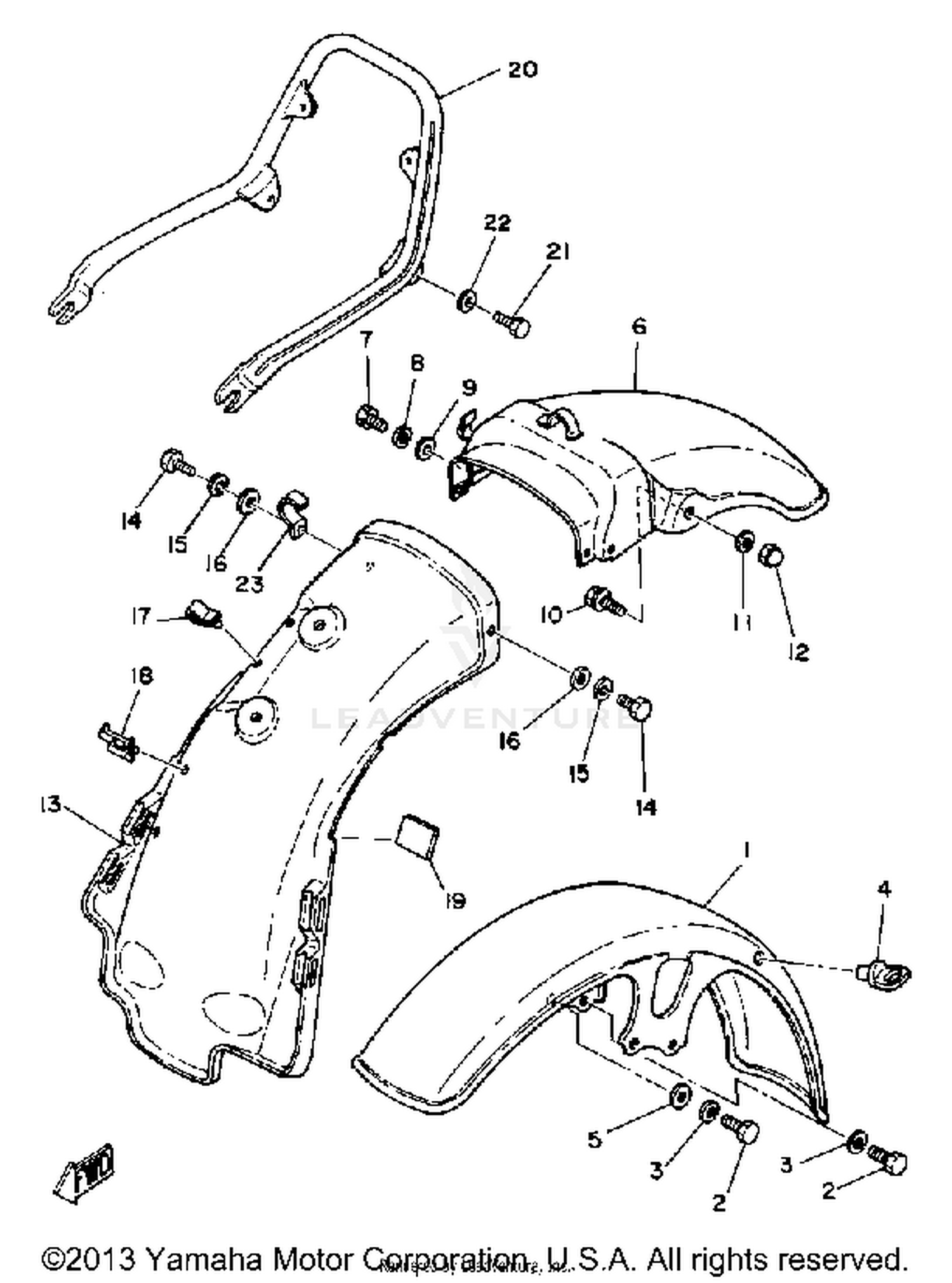

Front Fender Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3H3-21511-00-93
|
$178.99 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A0-21518-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, REAR
3J6-21610-00-93
|
$156.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, MUD
3H3-21629-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#14
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
2H7-21628-00-00
Superseded by 22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, REAR
3J6-21645-00-00
|
$175.99 | ||
|
Unavailable |
|||
|
#21
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90462-06009-00
Superseded by 90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
