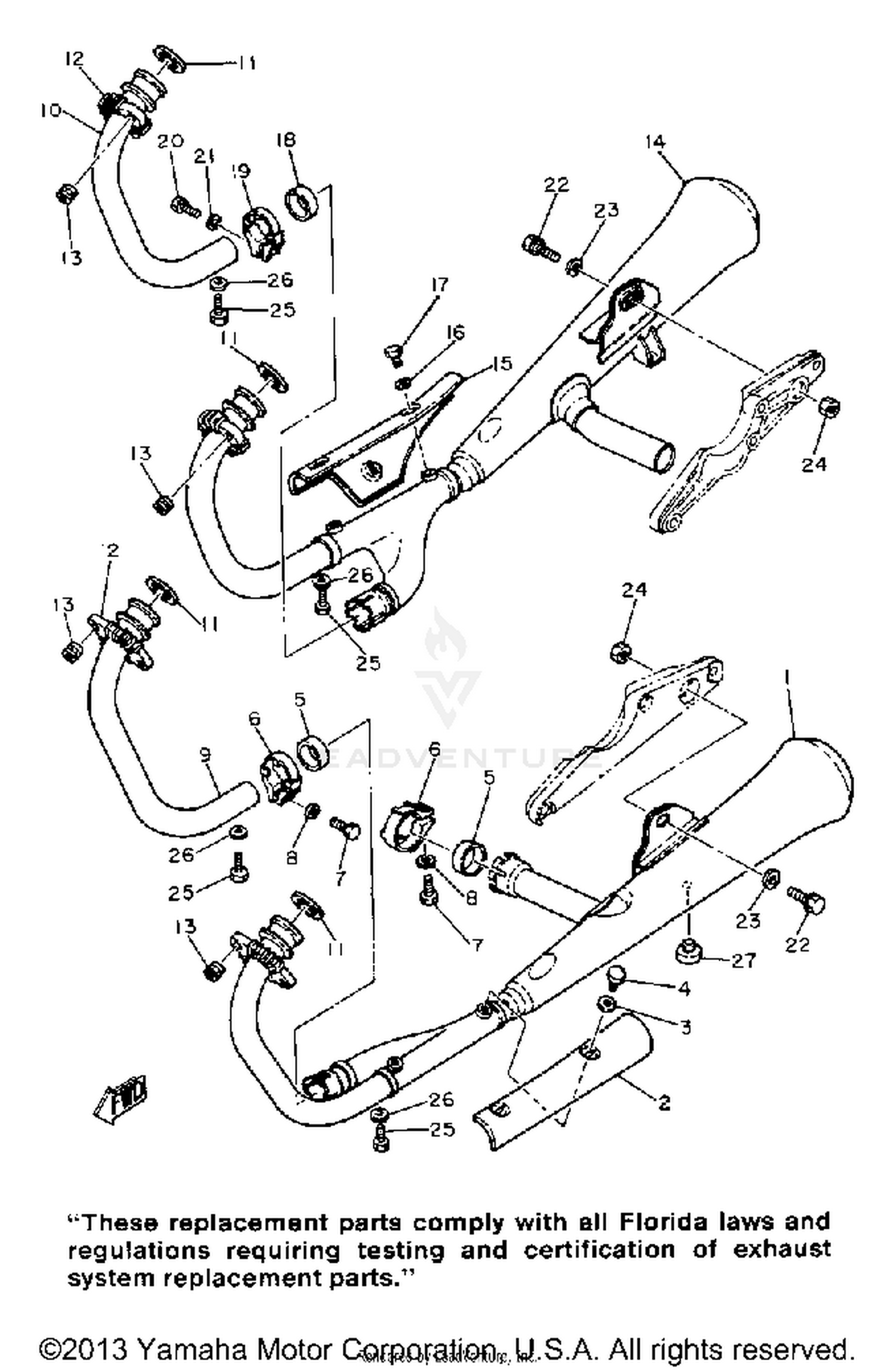

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER (LH) 3H3
99999-01231-00
|
$504.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, MUFF 1
3H3-14718-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXHAUST 4
1L9-14714-01-00
Superseded by 3JJ-14653-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, silence 4
26H-14797-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, EXHAUST R
2H7-14621-02-00
|
$111.99 | ||
|
Unavailable |
|||
|
#10
PIPE, EXHAUST 3
2H7-14631-02-00
|
$97.99 | ||
|
Unavailable |
|||
|
#11
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, RING
2H7-14612-00-00
|
$30.48 | ||
|
Unavailable |
|||
|
#13
NUT
90179-08599-00
Superseded by 90179-08004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
MUFFLER (RH) 3H3
99999-01232-00
|
$504.99 | ||
|
Unavailable |
|||
|
#15
PROTECTER, MUFF 2
3H3-14728-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Unavailable |
|||
|
#17
BOLT
90101-06576-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
GASKET, EXHAUST 4
1L9-14714-01-00
Superseded by 3JJ-14653-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#19
BAND, silencer 4
26H-14796-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#20
BOLT
97013-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-10669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPEC''L SHAPE
90179-10276-00
|
$3.80 | ||
|
Unavailable |
|||
|
#25
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
STOPPER, MAIN STAND
1A0-27114-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
