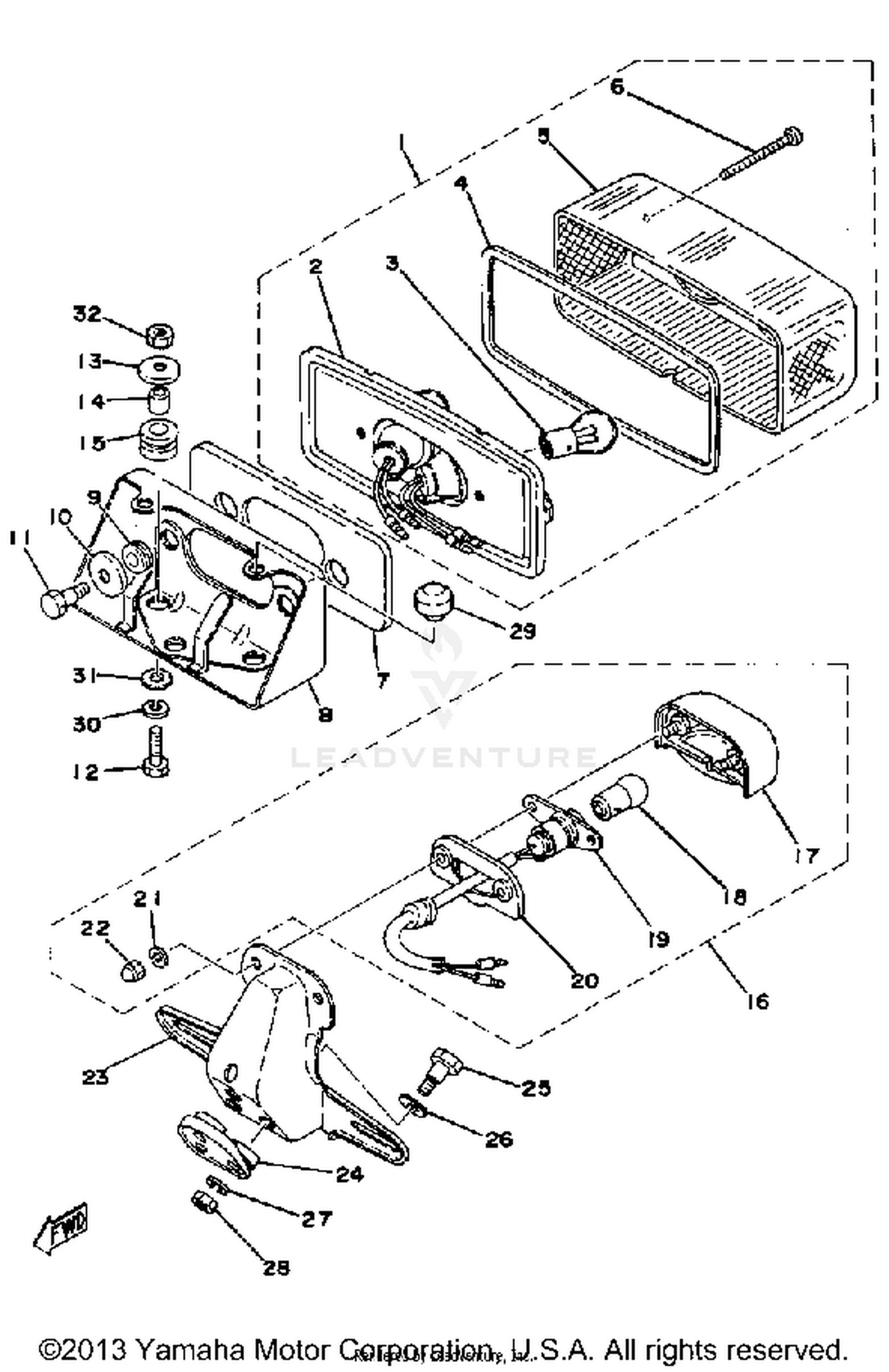

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
1L9-84710-60-00
|
$53.99 | ||
|
Unavailable |
|||
|
#2
BASE, TAILLIGHT
1L9-84711-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, TAIL LENS
1A0-84723-60-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
LENS, TAILLIGHT
1A8-84733-61-00
Superseded by 1A8-84721-61-00
|
$31.99 | ||
|
Unavailable |
|||
|
#6
SCREW, LENS FITTING
341-84724-60-00
Superseded by 98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
1A8-84736-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#8
BRACKET, TAILLIGHT
1L9-84702-60-33
|
$18.86 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-12071-00
Superseded by 90480-12237-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, TAILLAMP
1A0-84726-60-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97301-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-14123-00
|
|||
|
Unavailable |
|||
|
#16
LICENSE LAMP UNIT ASSEMBLY
1A8-84745-60-00
|
$35.38 | ||
|
Unavailable |
|||
|
#17
COVER, LICENSE LAMP
1A8-84743-60-00
|
$10.09 | ||
|
Unavailable |
|||
|
#18
BULB
136-83311-20-00
Superseded by 4H7-84744-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
CORD ASSEMBLY, LICENSE LIGHT
1A8-84747-60-00
|
$8.88 | ||
|
Unavailable |
|||
|
#20
GASKET
1A8-84742-60-00
|
$3.57 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING
92903-05100-00
Superseded by 92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#23
BRACKET, LICENSE
1A8-84751-60-33
|
$38.38 | ||
|
Unavailable |
|||
|
#24
DAMPER
1L9-84753-01-00
|
$2.17 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90109-05017-00
Superseded by 90110-05076-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN
92903-08200-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEXAGON
95301-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOPPER
1L9-24768-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, HEXAGON
95301-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
