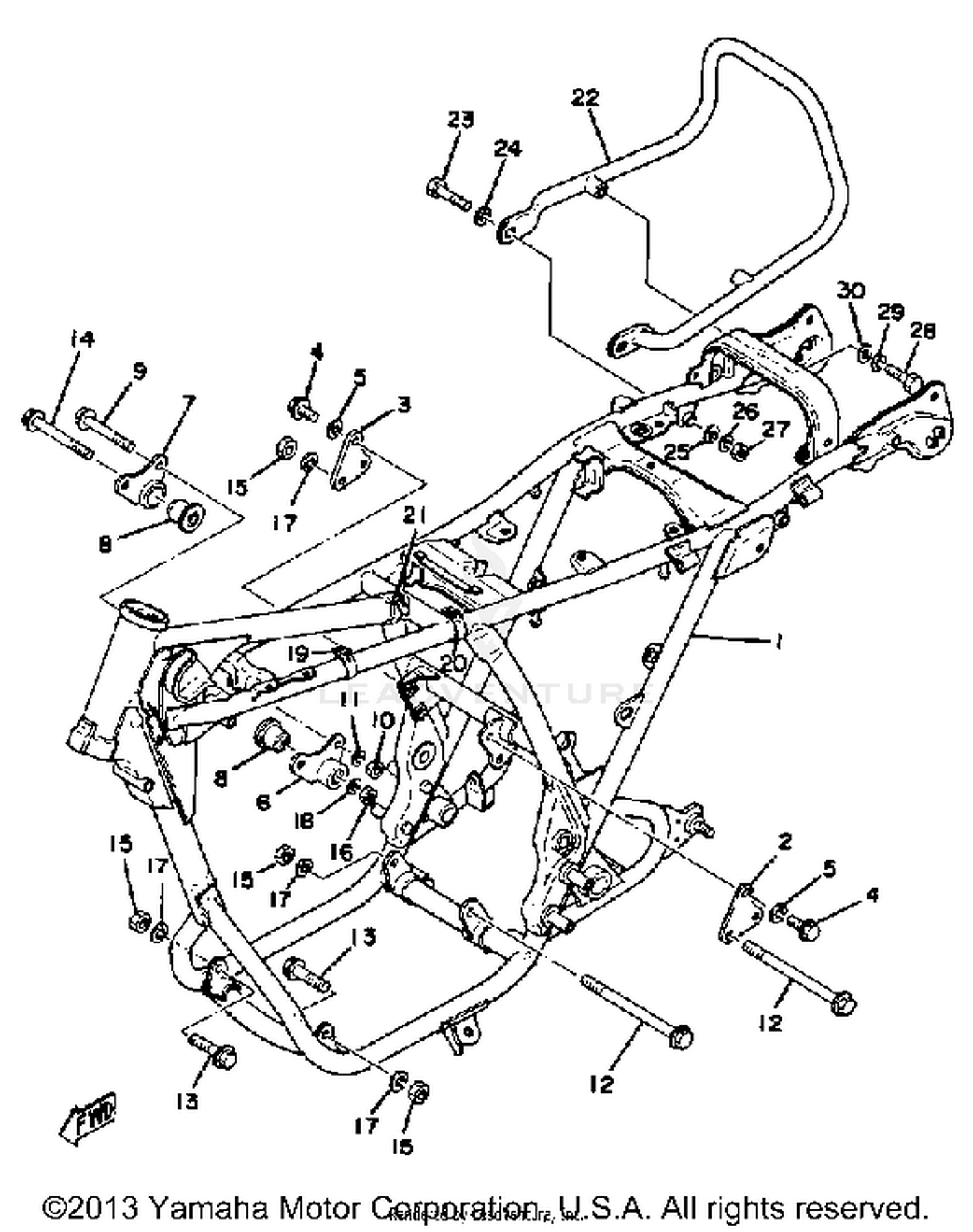

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2L0-21110-00-33
|
$302.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
2A2-21315-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 2
1L9-21315-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 3
1L9-21316-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
STAY, ENGINE 4
1L9-21317-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#8
DAMPER, ENG MOUNT 1
1A1-15316-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95811-08070-00
Superseded by 95817-08070-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95821-10145-00
|
$2.52 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-10045-00
Superseded by 95817-10045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-10159-00
Superseded by 90170-10011-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, REAR
2L0-21645-00-00
|
$51.88 | ||
|
Unavailable |
|||
|
#23
BOLT,HEX
97313-08050-00
Superseded by 97013-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#28
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
