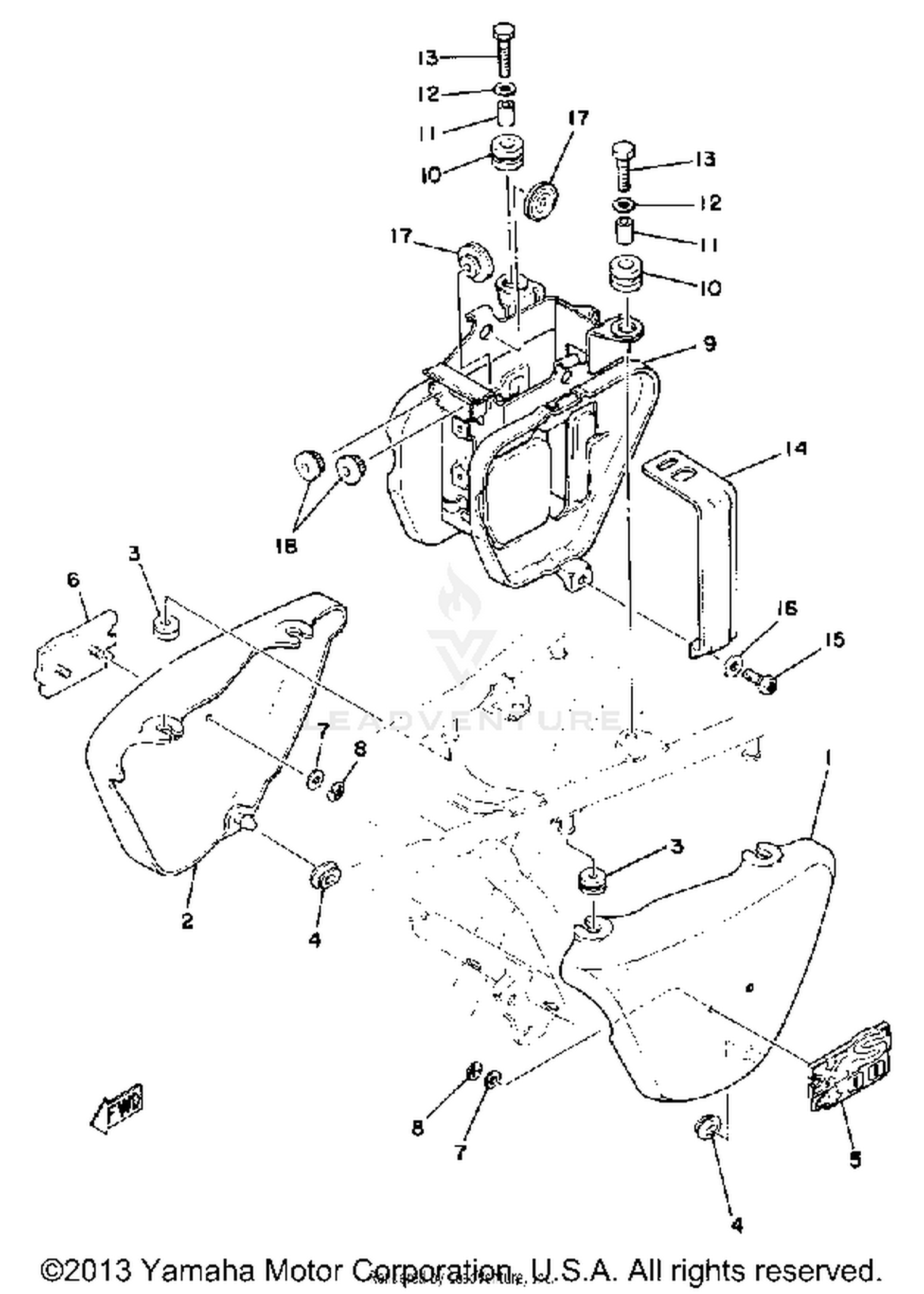

Side Cover - Battery Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2L0-21711-00-H9
|
$50.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
2L0-21711-00-E9
|
$27.87 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
2L0-21721-00-H9
|
$50.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
2L0-21721-00-E9
|
$24.85 | ||
|
Unavailable |
|||
|
#3
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM 1
2L0-21781-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM 2
2L0-21782-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90202-04003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-04005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOX, BATT.
2L0-21240-00-00
|
$35.92 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, TANK FITTING
1L9-21776-01-00
|
$6.66 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
1J7-21746-00-00
|
$4.56 | ||
|
Unavailable |
|||
