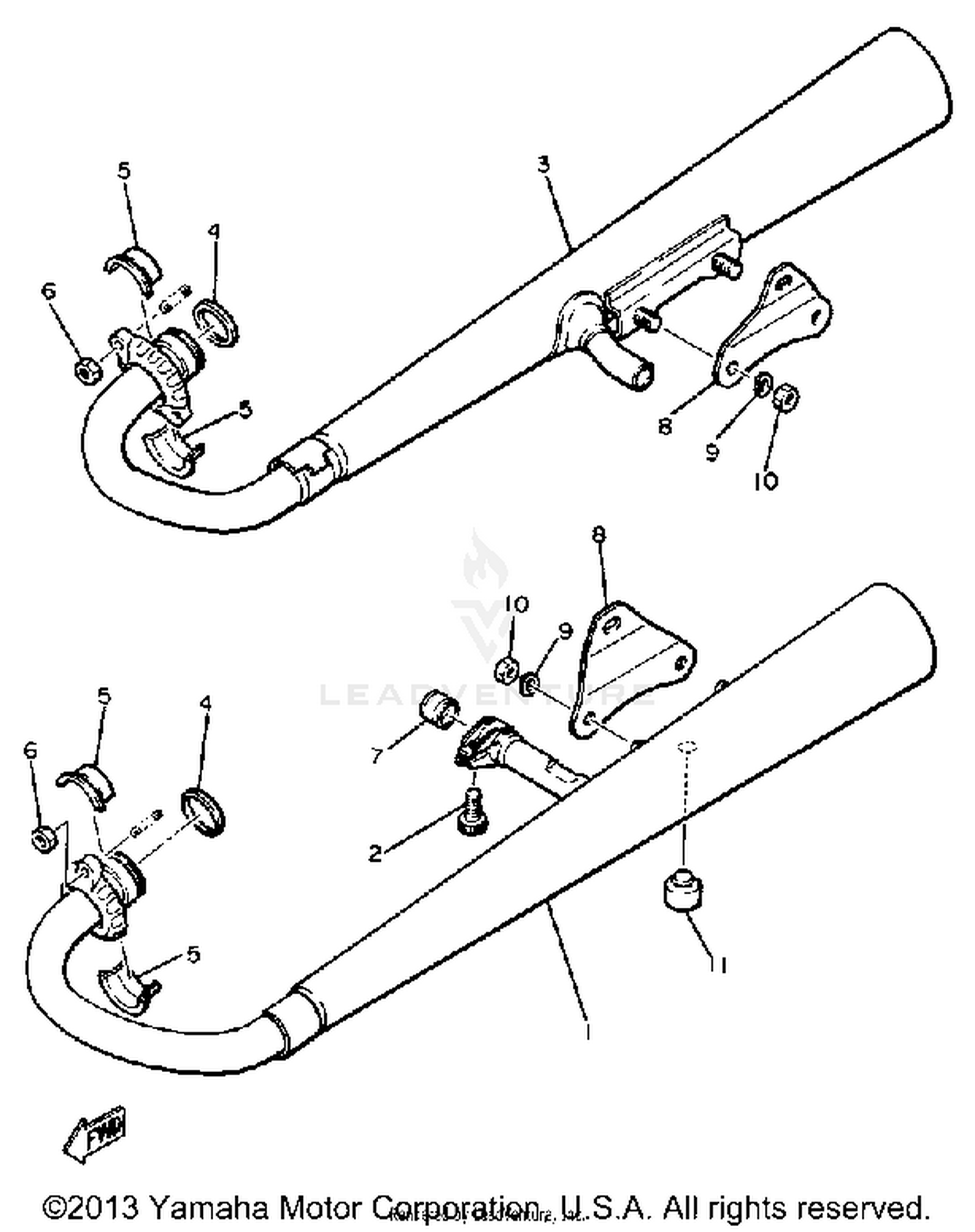

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER ASY L
3F9-14710-80-00
|
$406.99 | ||
|
Unavailable |
|||
|
#2
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER ASY R
3F9-14720-80-00
|
$406.99 | ||
|
Unavailable |
|||
|
#4
GASKET
1L9-14613-00-00
Superseded by 1L9-14613-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLANGE, EXST PIPE
1J7-14614-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, MUFFLER
1JK-14714-00-00
Superseded by 3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, MUFFLER 1
3F9-14771-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#11
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
