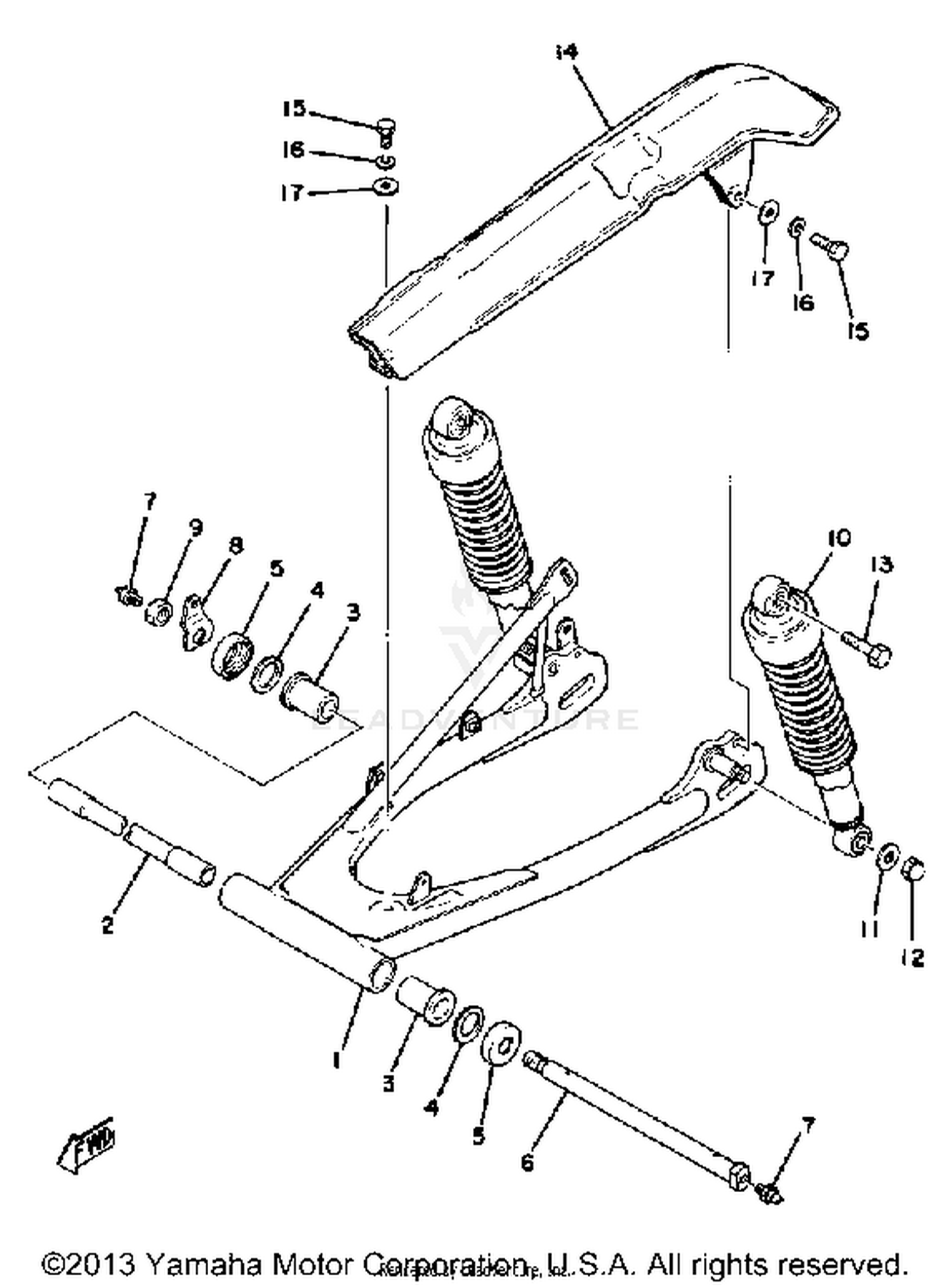

Rear Arm - Rear Cushion - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2V6-22110-00-33
|
$59.94 | ||
|
Unavailable |
|||
|
#2
BUSH
341-22184-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#3
BUSH, SPEC''L NYLON
90386-22102-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
371-22128-00-00
Superseded by 322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
371-22141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#7
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, LOCK
90215-14055-00
|
$8.99 | ||
|
Unavailable |
|||
|
#9
NUT
90170-14403-00
Superseded by 90170-14800-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHK/ABS ASY,REAR
2L0-22210-00-00
Superseded by 2L0-22210-A0-00
|
$204.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, DOME HEAD
90106-10025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, CHAIN
3F9-22311-00-93
|
$69.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
