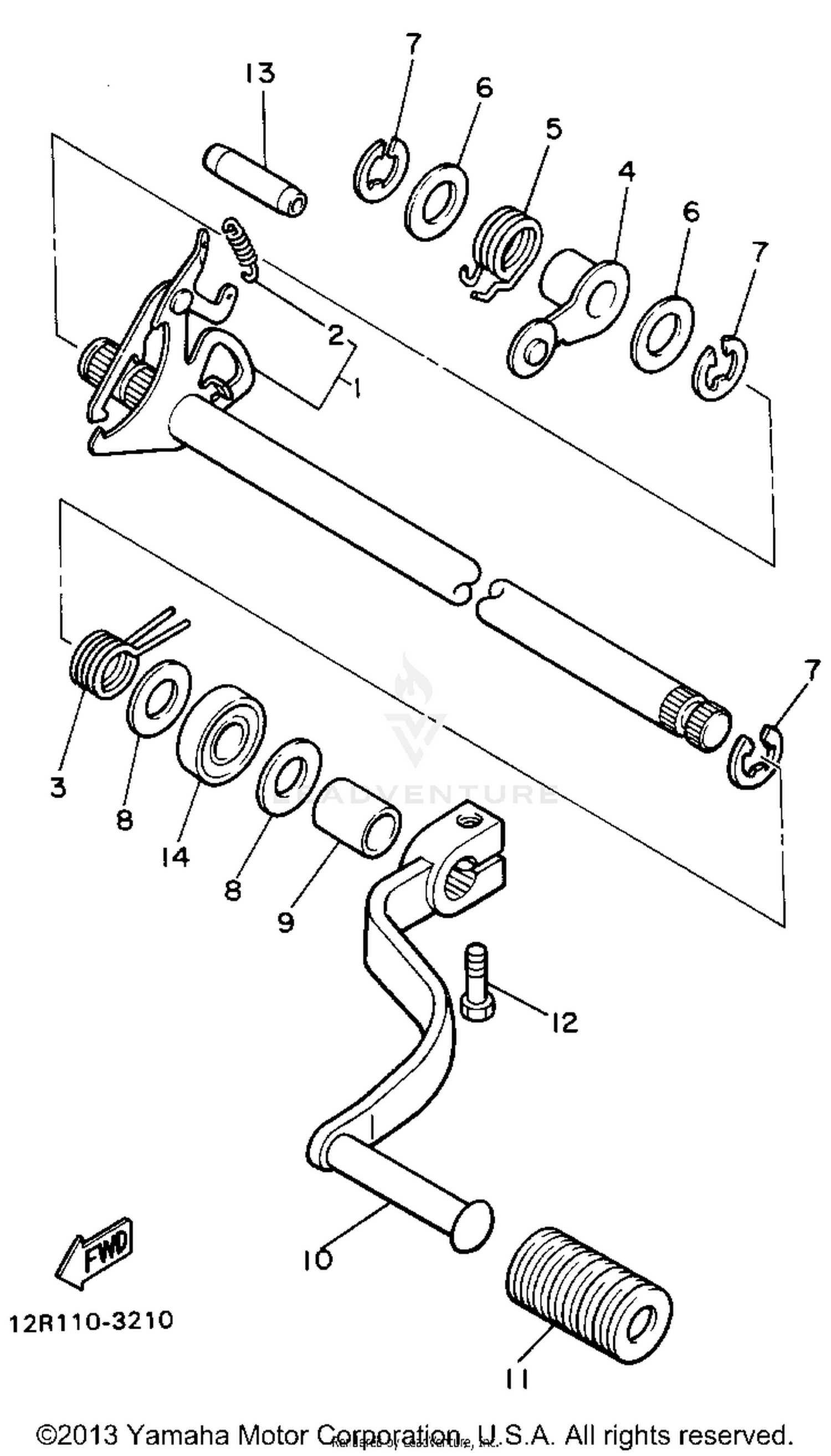

1982 Yamaha XS400J MAXIM SHIFT SHAFT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT LEVER ASSEMBLY
12R-18120-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90506-08227-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-29547-00
|
$5.99 | ||
|
Unavailable |
|||
|
#4
STOPPER LEVER ASSEMBLY
12R-18140-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
SPRING, TORSION
90508-29546-00
|
$1.09 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-125A8-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT PEDAL ASSEMBLY
22U-18110-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#11
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
93608-50158-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-12321-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
