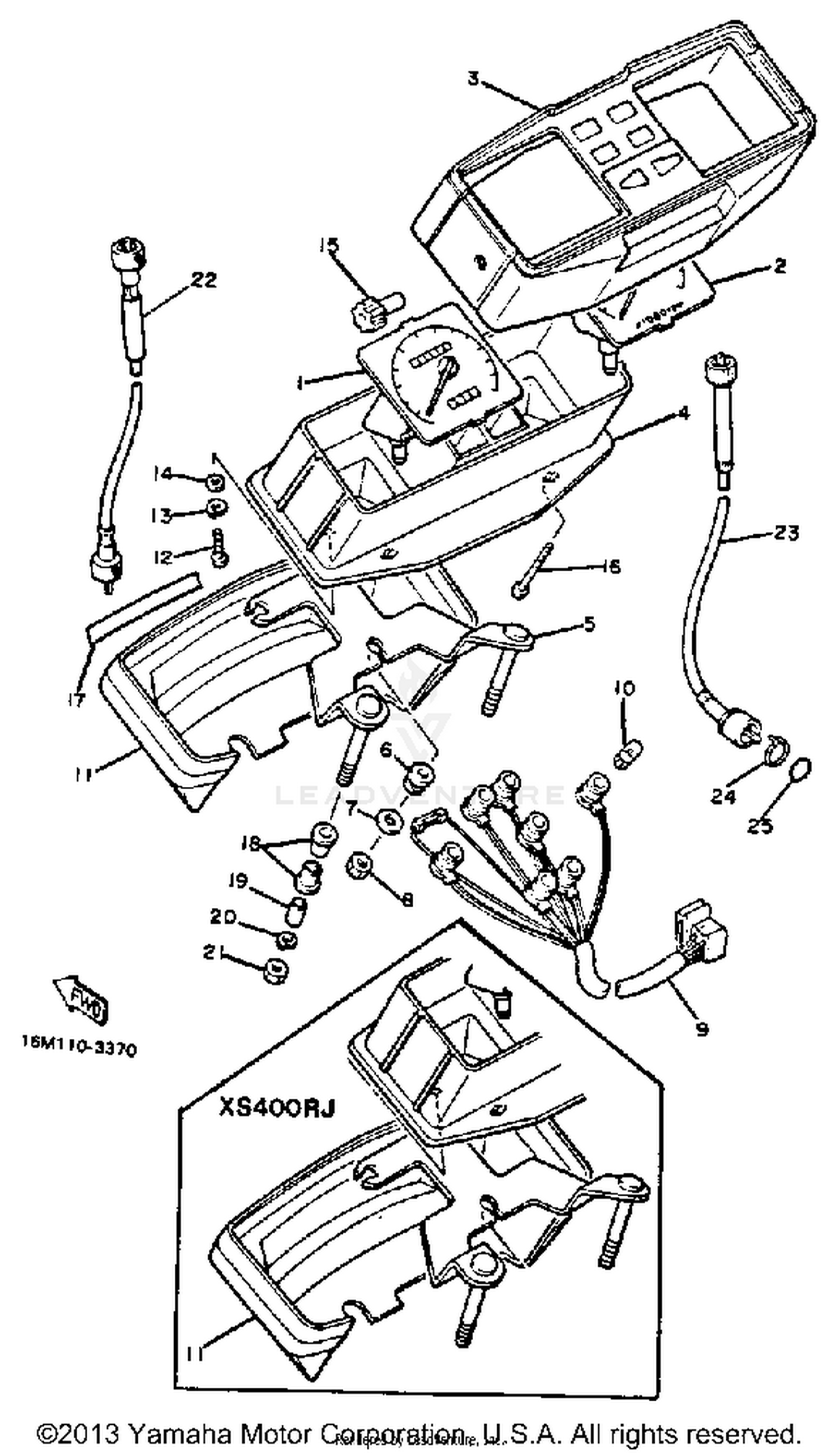

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
16M-83570-A0-00
|
$257.99 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASSEMBLY (16M-83540-
12E-83540-F0-00
|
$212.99 | ||
|
Unavailable |
|||
|
#3
COVER, METER
16M-83559-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#4
CASE, INNER
16M-8353H-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, METER
16M-83519-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#6
DAMPER
4X7-83523-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-052E2-00
Superseded by 90201-05032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOCKET CORD ASSEMBLY
16M-83509-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#10
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, METER 2
16M-83579-00-00
|
$76.67 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
KNOB, TRIP METER
1AE-83578-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
EMBLEM 1
3L6-21781-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#18
DAMPER
1JK-83541-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-06249-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
TACHOMETER CABLE (341-83560-00)
341-83560-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#24
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
