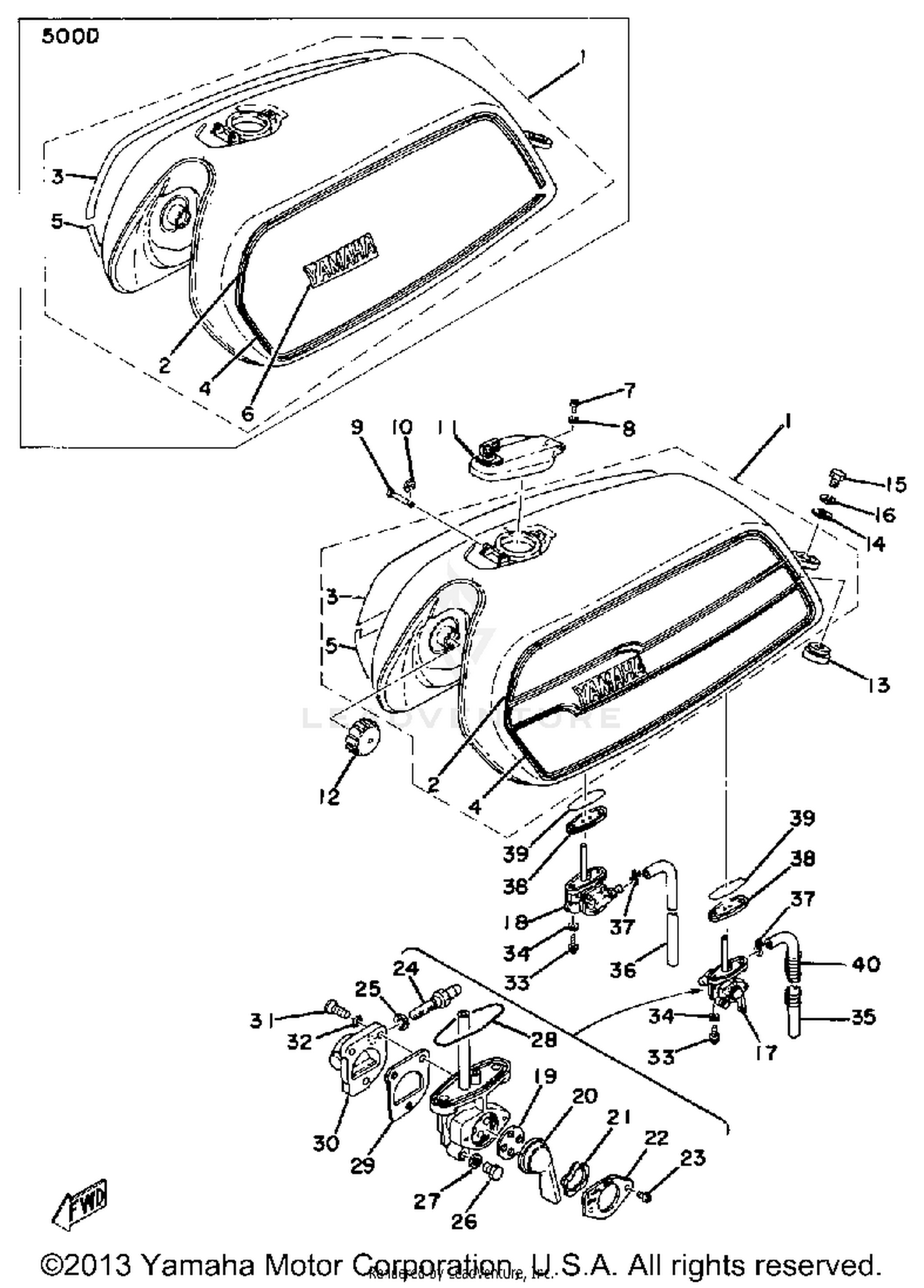

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1A8-24110-01-09
|
$258.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
1A8-24110-01-02
|
$258.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1A8-24244-10-00
|
$3.96 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 1
1J3-24244-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
1A8-24245-10-00
|
$4.84 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
1J3-24245-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
1A8-24246-10-00
|
$5.24 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 3
1J3-24246-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
1A8-24247-10-00
|
$4.35 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 4
1J3-24247-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#6
EMBLEM 1
1H2-24161-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SPECIAL SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSEMBLY
1E7-24602-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
1A8-24181-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUEL COCK ASSEMBLY 1
447-24500-02-00
|
$137.99 | ||
|
Unavailable |
|||
|
#18
FUEL COCK ASSEMBLY 2
447-24510-02-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, COCK
447-24524-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#21
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, LEVER FITTING
447-24525-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
PLATE, LVR FITTING
447-24546-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
NIPPLE
256-24537-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#25
GASKET
256-24528-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98580-05006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, BODY 4
801-24437-00-00
|
$3.92 | ||
|
Unavailable |
|||
|
#28
GASKET
256-24512-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
447-24522-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, FILTER
447-24547-00-00
|
$2.08 | ||
|
Unavailable |
|||
|
#
COVER, FILTER
447-24547-10-00
|
$2.08 | ||
|
Unavailable |
|||
|
#31
SCREW, FLAT HEAD
98701-04010-00
Superseded by 98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, EX.TOOTH
92901-04500-00
|
$0.75 | ||
|
Unavailable |
|||
|
#33
SCREW, BIND
98980-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE 5
90445-09094-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE 5
90445-09073-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER, FUEL COCK
366-24545-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#39
GASKET
256-24512-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#40
SPRING, COMPRESSION
90501-06028-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
