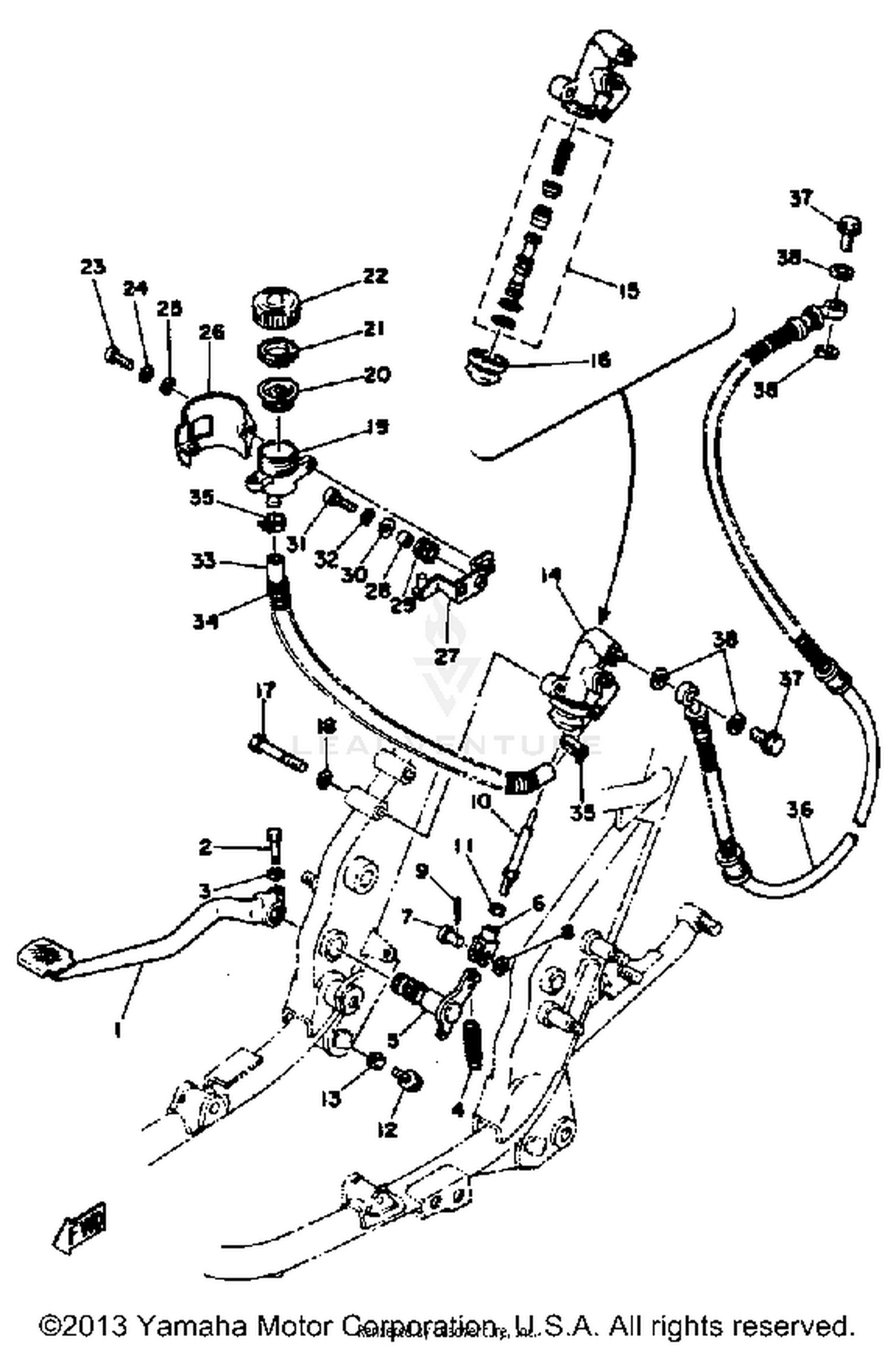

1979 Yamaha XS650S SPECIAL BRAKE PEDAL-REAR MASTER CYLINDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
533-27211-01-93
|
$157.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-26178-00
Superseded by 90506-23204-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
SHAFT, BRAKE PEDAL
2M0-27212-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#6
JOINT
1A1-27222-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#7
PIN, CLEVIS
90240-08013-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08083-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, BRAKE
1J7-27231-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#11
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
MSTR CYLINDER ASSEMBLY
2M0-25850-50-00
|
$126.99 | ||
|
Unavailable |
|||
|
#15
CYLINDER KIT, MASTER (1J3-200
1J3-W0042-50-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, MASTER CYLINDER
1J3-25862-50-00
|
$7.94 | ||
|
Unavailable |
|||
|
#17
BOLT
97026-08055-00
Superseded by 97017-08055-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (661)
97321-08055-00
Superseded by 97013-08055-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TANK, RESERVOIR
1A1-25894-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH,DIAPHRAGM
2GU-25855-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, RESERVOIR
2KF-25852-50-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER
92906-06200-00
Superseded by 92907-06200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, RESVR TANK
2M0-25888-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#27
BRACKET, DAMPER
2M0-21798-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#28
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
HOSE, RESERVOIR
2M0-25895-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#34
SPRING, COMPRESSION
90501-10502-00
|
$1.98 | ||
|
Unavailable |
|||
|
#35
CLAMP, HOSE
90601-11525-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE, BRAKE 1
2M0-25872-50-00
|
$59.99 | ||
|
Unavailable |
|||
|
#37
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
