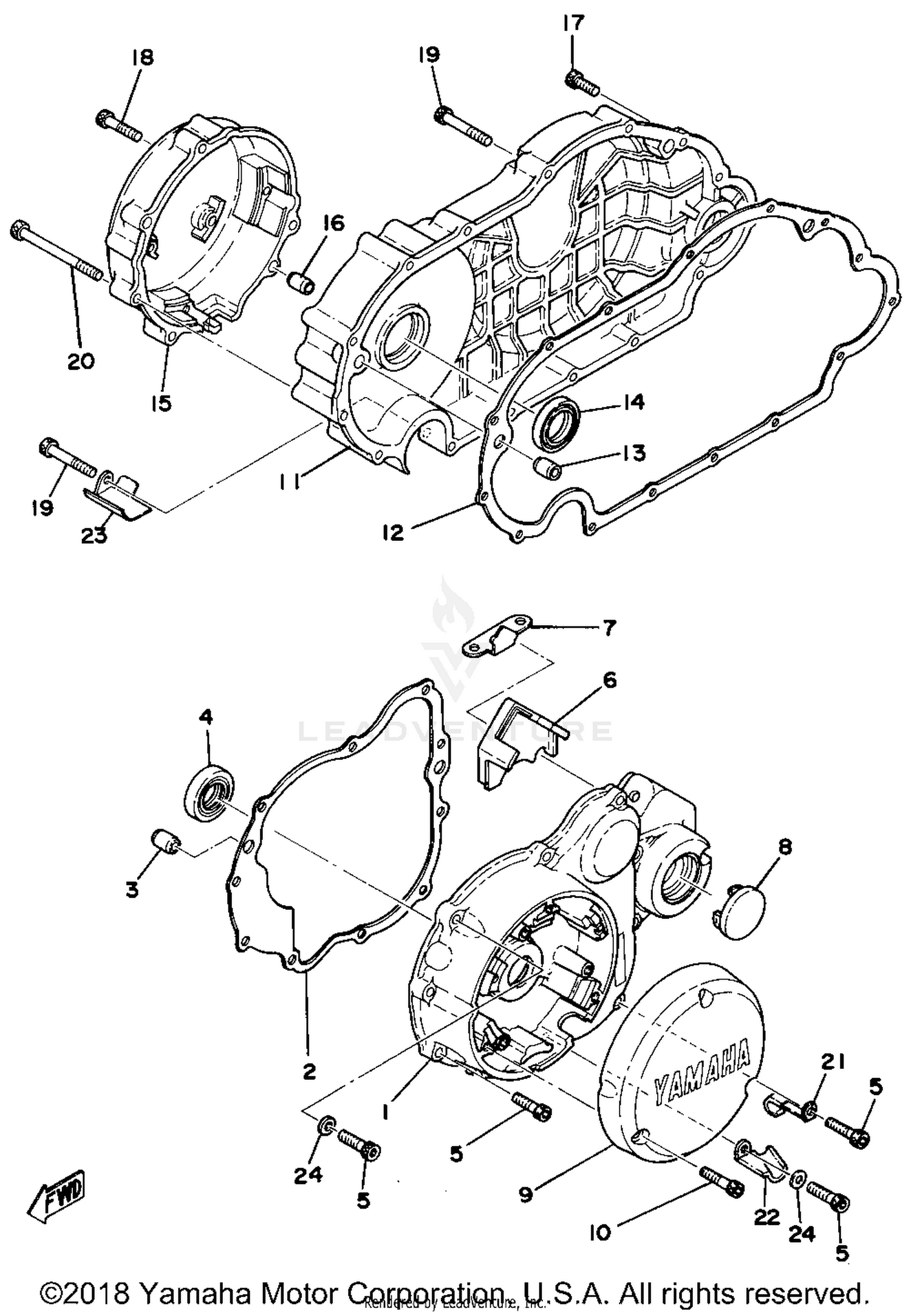

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRCS COVER ASSEMBLY L (1J7-1541
1J7-15410-01-00
|
$168.99 | ||
|
Unavailable |
|||
|
#2
GASKET,CRCS CVR 2
1J7-15461-00-00
Superseded by 1J7-15461-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SD-TYPE
93102-24154-00
|
$12.99 | ||
|
Unavailable |
|||
|
#5
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, AIR DUCT
1J7-15474-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#7
PLATE, DUST SEAL
1J7-15497-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#8
COVER, CAP
1J7-15417-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
COVER, OIL PUMP
1J7-15416-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, CRANKCASE 3
1J7-15431-09-00
|
$83.99 | ||
|
Unavailable |
|||
|
#12
GASKET,CRCS COVER
1J7-15451-00-00
Superseded by 1J7-15451-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GSKTKT XS750E/F
2F3-00000-20-00
|
$41.30 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#14
OIL SEAL
93102-25153-00
Superseded by 93102-25090-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, GENERATOR
1J7-15415-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#16
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
91316-06080-00
Superseded by 91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90465-08116-00
|
$2.05 | ||
|
Unavailable |
|||
|
#22
PLATE, CONTACT BRKR
1T4-81624-00-00
|
$3.70 | ||
|
Unavailable |
|||
|
#23
CLAMP
90465-10113-00
|
$1.65 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
