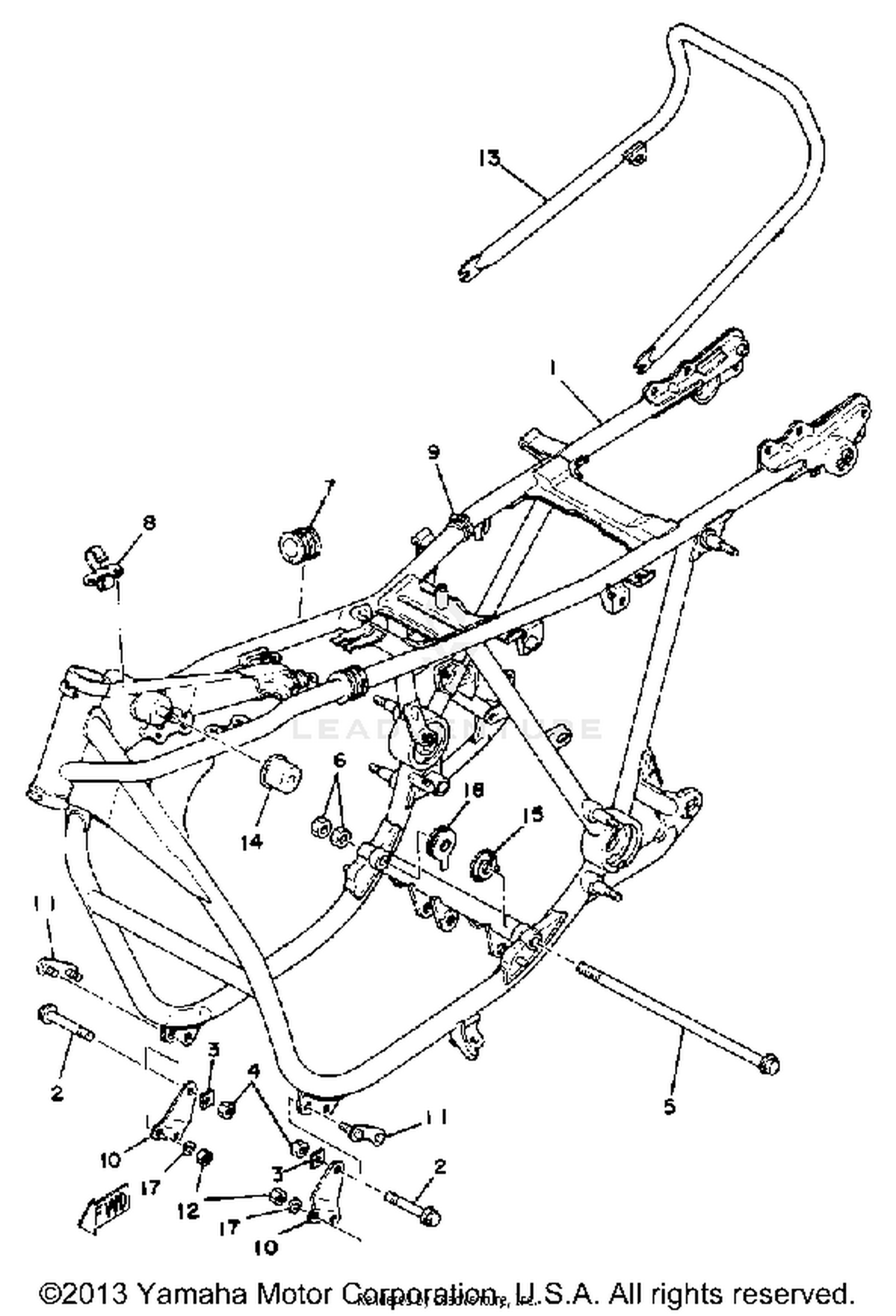

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2G2-21110-01-33
|
$541.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPEC''L SHAP
90209-10147-00
|
$0.94 | ||
|
Unavailable |
|||
|
#4
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-12501-00
|
$10.33 | ||
|
Unavailable |
|||
|
#6
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
1J7-24183-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
2G2-82594-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#9
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, ENGINE 3
2G2-21316-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#11
BRACKET, FRT LWR 2
2G2-21418-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#12
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, REAR
2G2-21645-00-00
|
$57.16 | ||
|
Unavailable |
|||
|
#14
BRACKET, TANK FTNG
2G2-21347-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
DAMPER, RUBBER 1
2G2-21485-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#16
DAMPER 2
2G2-21486-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
