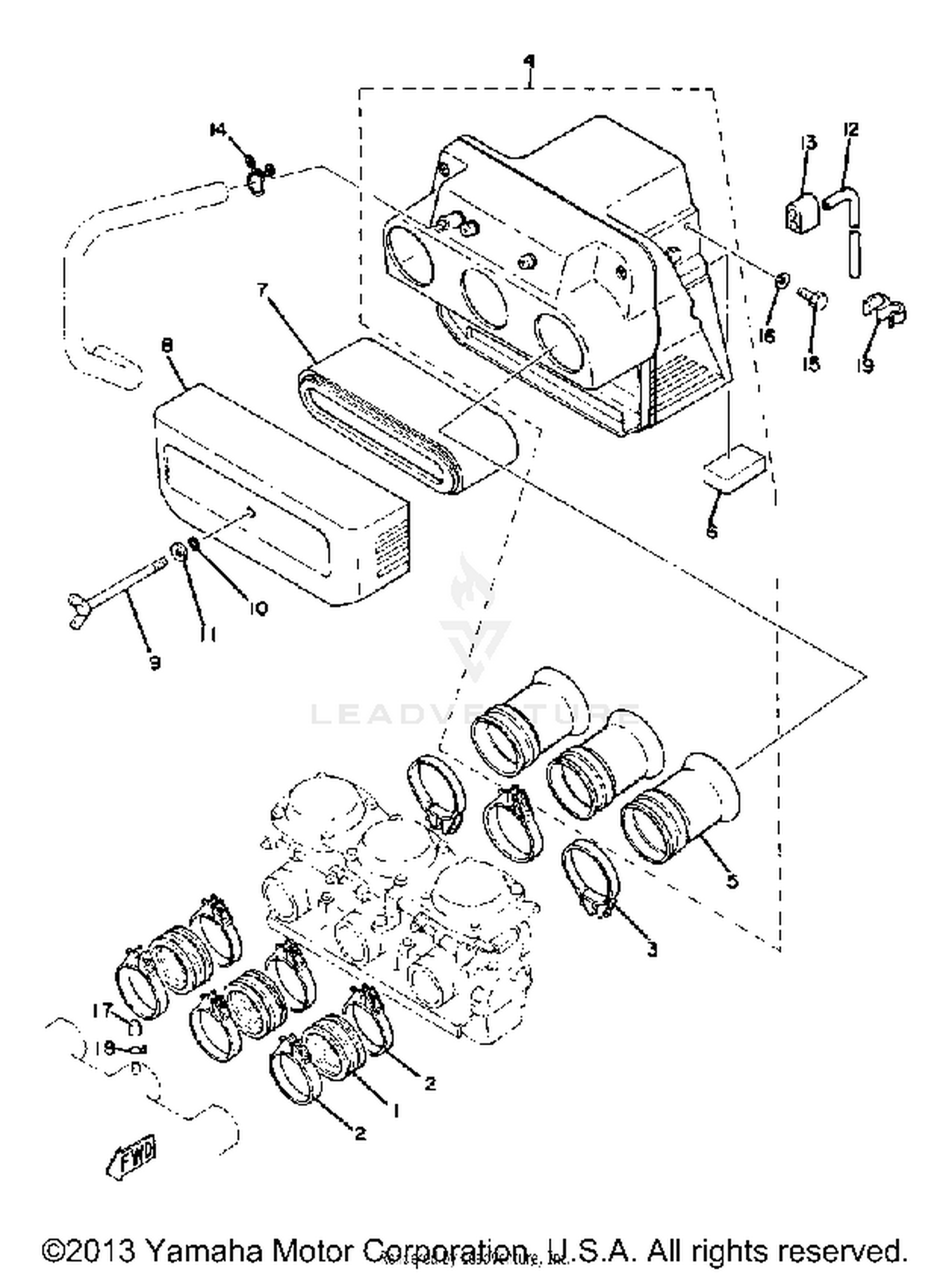

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1 (2F3-13586-
2F3-13586-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90460-54137-00
Superseded by 90450-54008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
AIR CLEANER CASE
2F3-W1441-05-00
|
$99.99 | ||
|
Unavailable |
|||
|
#5
JOINT, AIR CLNR 1
2F3-14453-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#6
SEAL
2F3-14452-01-00
|
$0.60 | ||
|
Unavailable |
|||
|
#7
ELEMENT, AIR CLNR
4E2-14451-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, CLEANER CASE 2
2F3-14422-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#9
BOLT, WING
90122-06006-00
|
$4.50 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-06257-00
|
$2.85 | ||
|
Unavailable |
|||
|
#11
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L310)
90445-07434-00
Superseded by 90445-072G8-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
2F3-14445-00-00
|
$2.54 | ||
|
Unavailable |
|||
|
#14
CLIP, PIPE
4H1-11189-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#15
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Unavailable |
|||
|
#17
PLUG, BLIND
16G-13569-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-10039-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT
2F3-14454-00-00
|
$3.16 | ||
|
Unavailable |
|||
