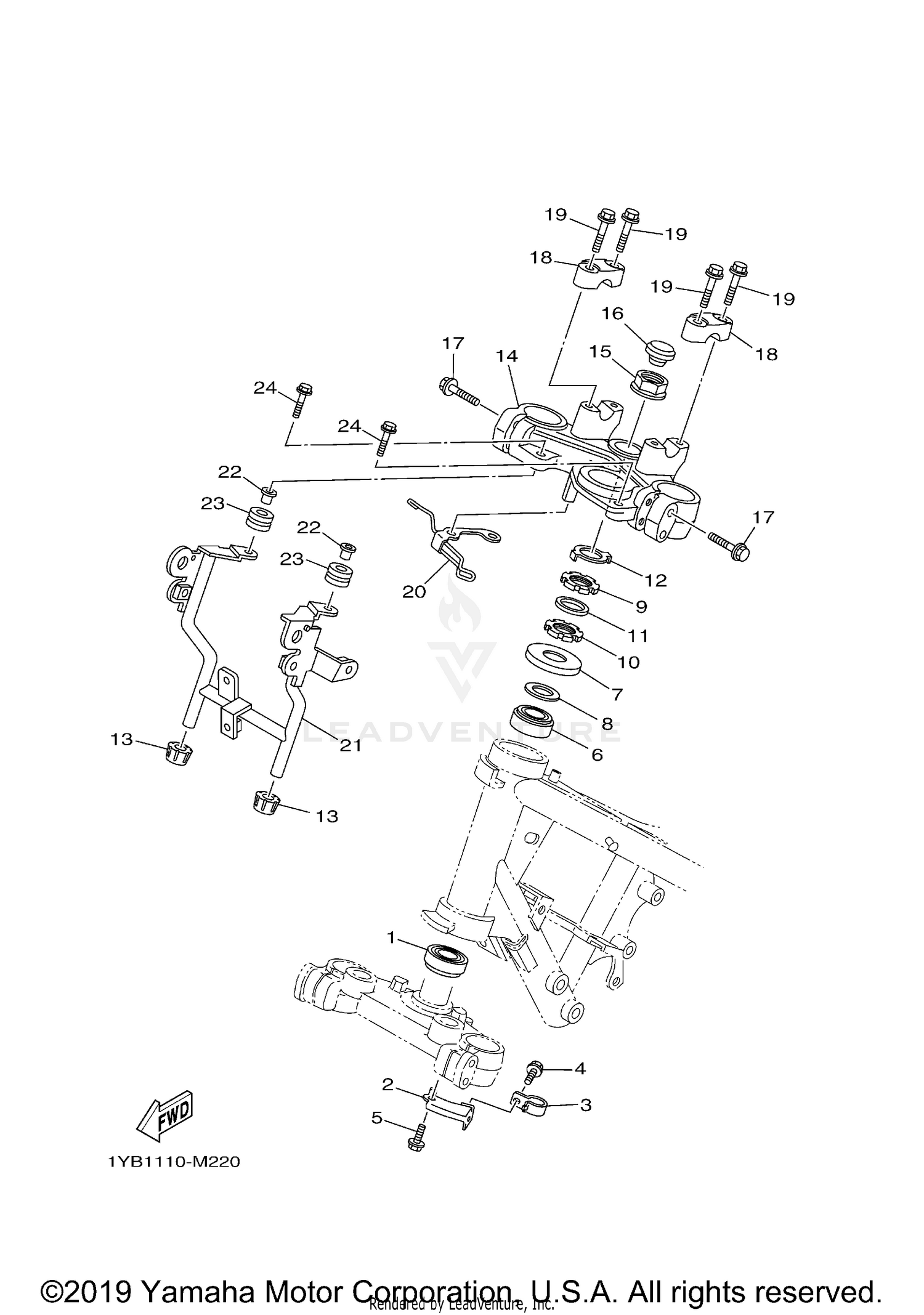

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93332-00079-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, BRAKE HOSE 1
3C5-25875-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, BRAKE HOSE 2
3C5-25876-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93332-00079-00
|
$64.99 | ||
|
Unavailable |
|||
|
#7
COVER, BALL RACE 1
1J7-23415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE (0.5T)
90201-256K5-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-25615-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-25003-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90202-26142-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL
3YF-23418-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
3C5-23426-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
CROWN, HANDLE
3C5-23435-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-22007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
5HP-2319U-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (SMALL HEAD)
95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, HANDLE UPPER
1E6-23441-10-P2
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95822-08035-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY 1
3C5-2317E-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER STOPPER 1
3C5-23348-10-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06161-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-14011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06040-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
