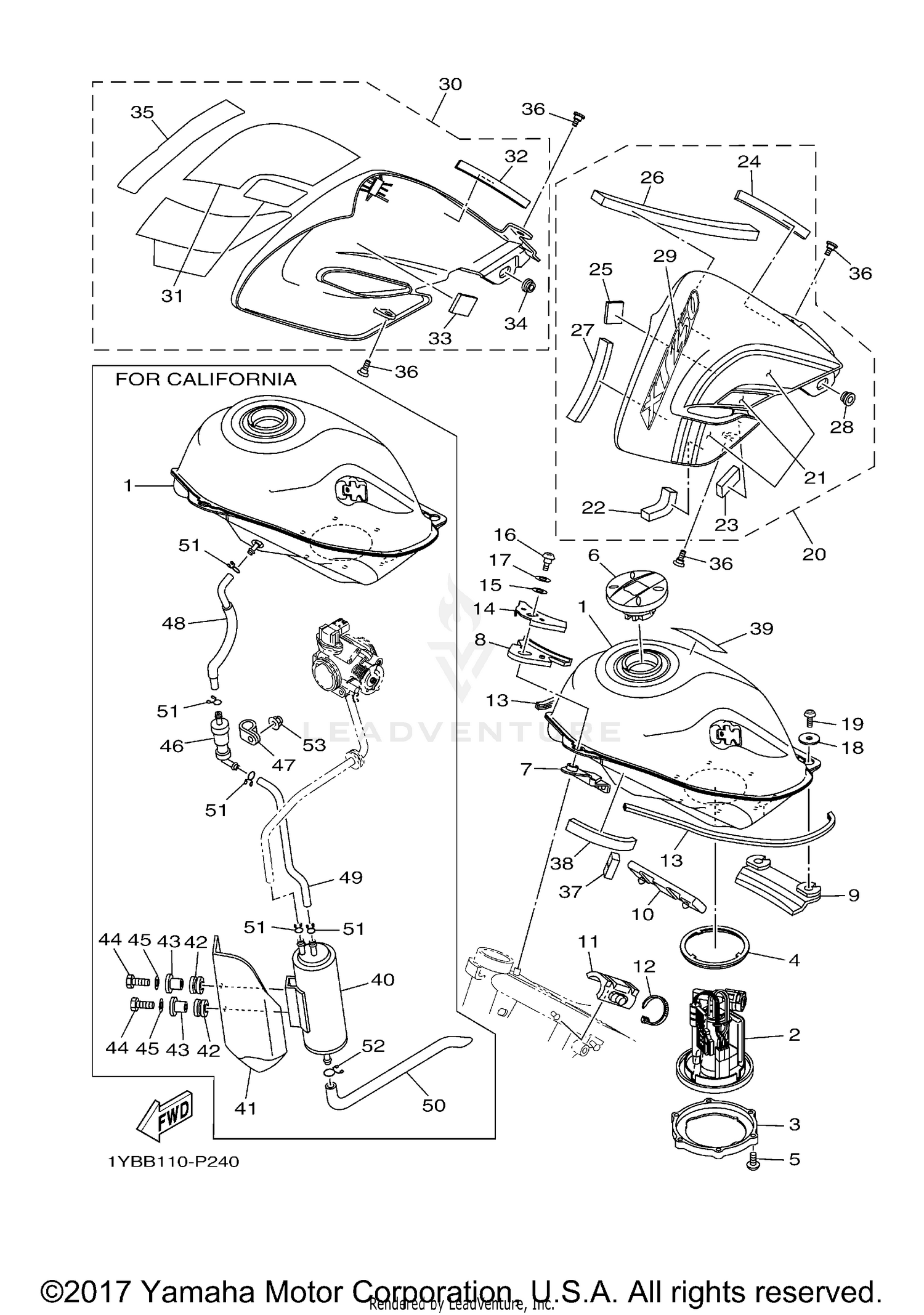

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3C5-24110-40-P0
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FUEL TANK COMP.
3C5-24110-20-P0
|
$477.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL PUMP COMP
5XT-13907-11-00
Superseded by 5XT-13907-13-00
|
$268.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3D7-24491-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S4-24486-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92012-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
5VK-24602-30-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
5VK-24602-20-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 1
3C5-24181-10-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 3
3C5-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 2
3C5-24182-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 5
3C5-24185-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 4
3C5-24184-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
MOLD, FUEL TANK
3C5-24188-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPECIAL
3C5-24186-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-10165-00
Superseded by 90202-10120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06265-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-10003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCOOP COMP, AIR 1
3C5-Y217W-BA-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-P0-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, AIR SHROUD 1
3C5-24125-00-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, AIR SHROUD 2
3C5-24126-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, PLATE 1
3C5-2414H-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, PLATE 2
3C5-2414J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, PLATE 3
3C5-2414K-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, PLATE 4
3C5-2414N-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
EMBLEM 1
1YB-24161-30-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCOOP COMP., AIR 2
3C5-Y217X-BA-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GRAPHIC, SCOOP AIR SET 2
3C5-2137D-P0-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, PLATE 1
3C5-2414H-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
DAMPER, PLATE 2
3C5-2414J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
GROMMET
90480-01559-00
|
$4.95 | ||
|
Unavailable |
|||
|
#35
EMBLEM 1
1YB-24161-30-00
|
$13.49 | ||
|
Unavailable |
|||
|
#36
BOLT, HEX. SOCKET BUTTON
90111-05045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER, PLATE 5
3C5-2414P-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
LABEL, CAUTION
1TP-2118K-A1-00
Superseded by 1TP-2118K-A2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CANISTER ASSY
3C5-24170-00-00
|
$390.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, CANISTER
3C5-2419E-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GROMMET
90480-15342-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE 10
1YB-24321-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIPE 11
1YB-24322-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIPE 13
3C5-24324-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
