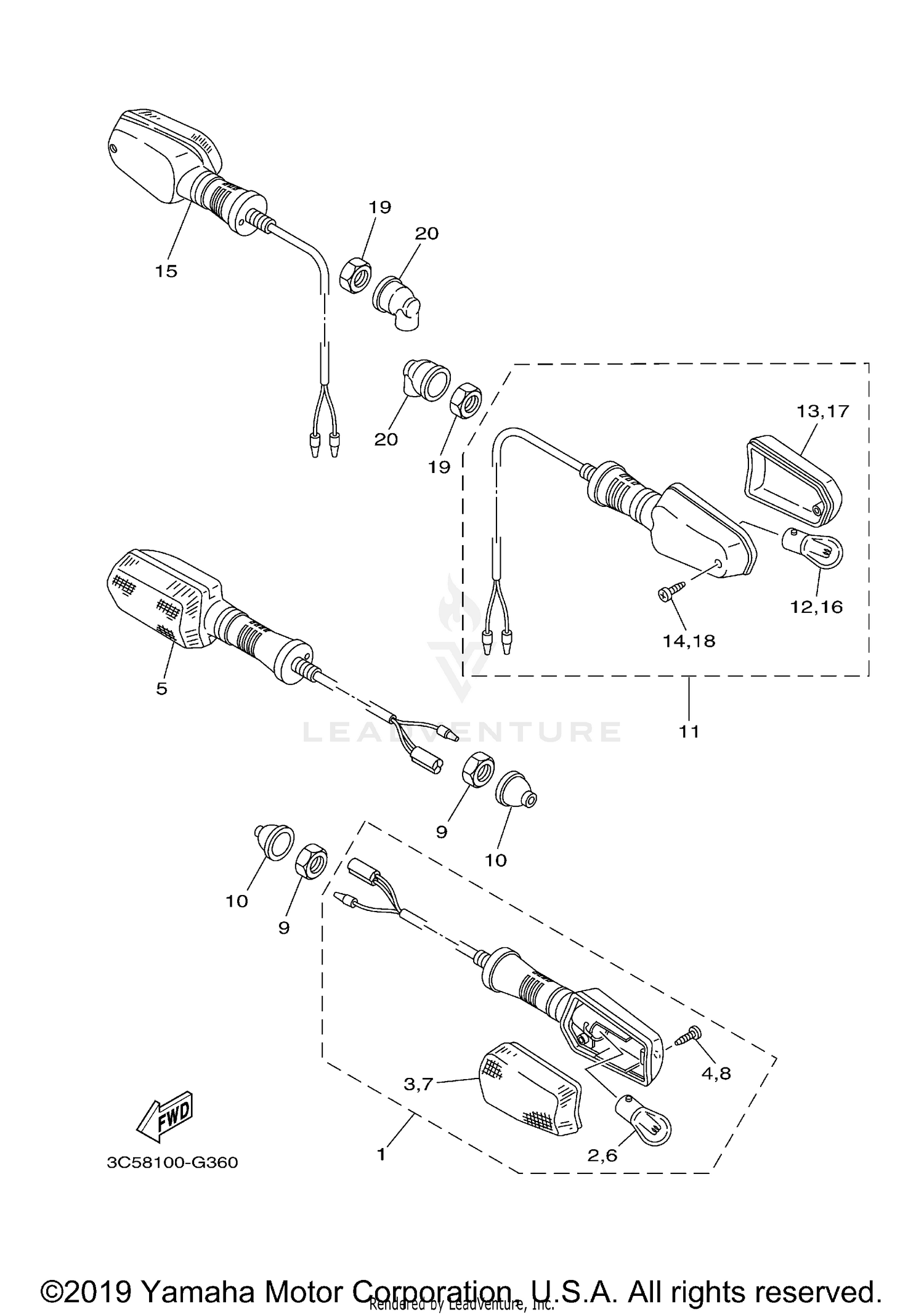

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
3C5-83310-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, FLSHER (12V-278W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER 2
1LJ-83342-00-00
Superseded by 51L-83342-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97707-40520-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONT FLASHER LIGHT ASSY 2
3C5-83320-10-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, FLSHER (12V-278W)
256-84714-61-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
LENS, FLASHER
1LJ-83332-00-00
Superseded by 51L-83332-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
NUT
95302-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
10V-83365-00-00
Superseded by 10V-83365-01-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
REAR FLASHER LIGHT ASSY 1
3C5-83330-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB (12V-32CP)
256-83311-70-00
Superseded by 256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS, FLASHER
1LJ-83332-00-00
Superseded by 51L-83332-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING
97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
REAR FLASHER LIGHT ASSY 2
4BE-83340-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB (12V-32CP)
256-83311-70-00
Superseded by 256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#17
LENS, FLASHER 2
1LJ-83342-00-00
Superseded by 51L-83342-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
NUT
95302-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
CAP
18G-83365-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
