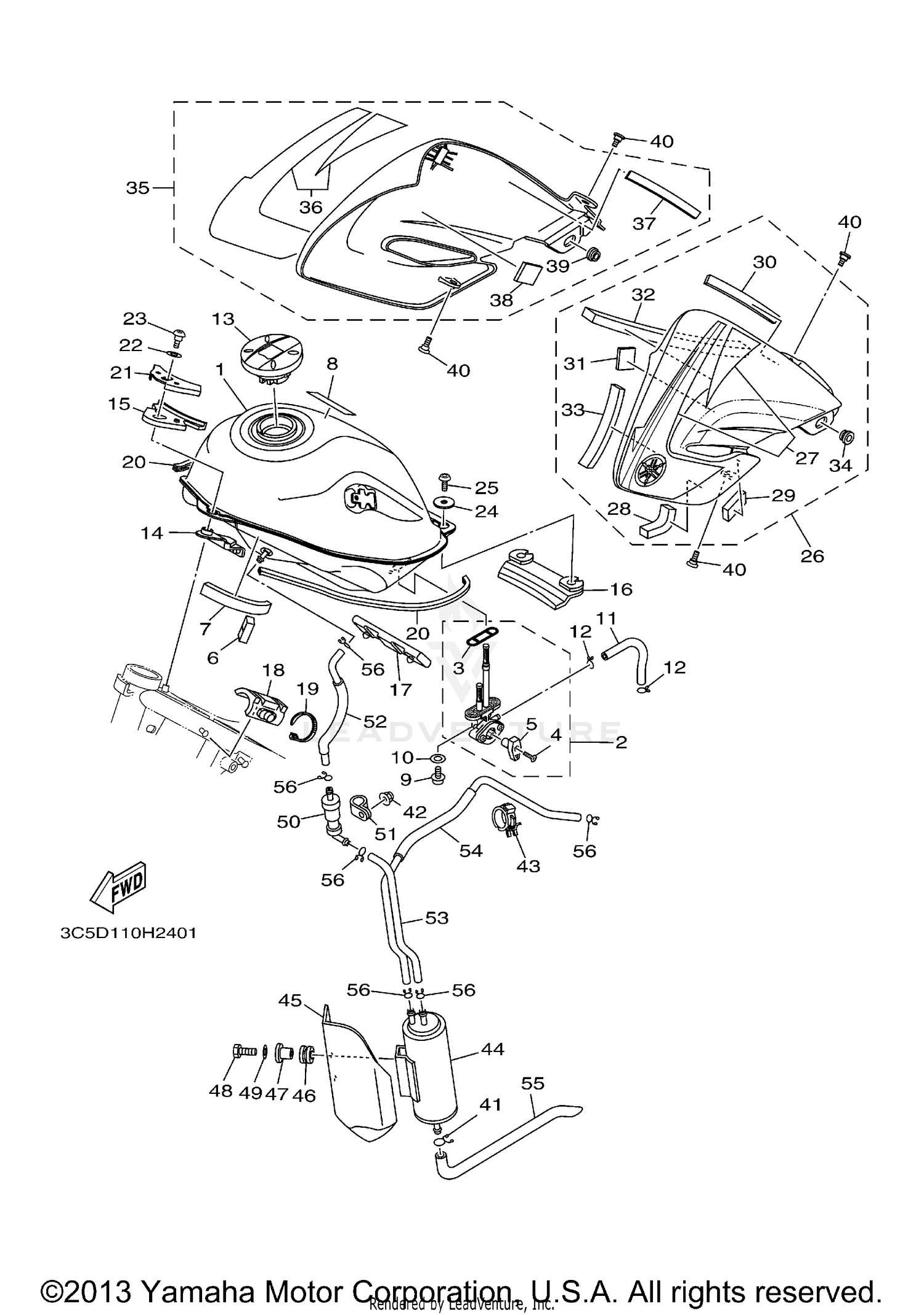

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3C5-24110-10-P0
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FUEL TANK COMP.
3C5-24110-30-P1
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL COCK ASSY 1
3C5-24500-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
1P6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, LEVER FITTING
3D5-24535-00-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, COCK
3C5-24524-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, PLATE 5
3C5-2414P-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, CAUTION
5GK-2118K-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06108-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE
90445-10041-00
Superseded by 90445-10829-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY
5VK-24602-00-00
Superseded by 5VK-24602-20-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
5VK-24602-10-00
Superseded by 5VK-24602-30-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 1
3C5-24181-00-00
|
$3.25 | ||
|
Unavailable |
|||
|
#
DAMPER, LOCATING 1
3C5-24181-10-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 3
3C5-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 2
3C5-24182-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER, LOCATING 2
3C5-24182-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 5
3C5-24185-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
DAMPER, LOCATING 5
3C5-24185-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 4
3C5-24184-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
DAMPER, LOCATING 4
3C5-24184-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
MOLD, FUEL TANK
3C5-24188-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPECIAL
3C5-24186-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-10003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-06084-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCOOP COMP, AIR 1
3C5-Y217W-90-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-70-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL, AIR SHROUD 1
3C5-24125-00-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL, AIR SHROUD 2
3C5-24126-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, PLATE 1
3C5-2414H-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, PLATE 2
3C5-2414J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, PLATE 3
3C5-2414K-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER, PLATE 4
3C5-2414N-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCOOP COMP, AIR 2
3C5-Y217X-90-00
|
$167.99 | ||
|
Unavailable |
|||
|
#36
GRAPHIC, SCOOP AIR SET 2
3C5-2137D-70-00
|
$120.99 | ||
|
Unavailable |
|||
|
#37
DAMPER, PLATE 1
3C5-2414H-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#38
DAMPER, PLATE 2
3C5-2414J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
GROMMET
90480-01559-00
|
$4.95 | ||
|
Unavailable |
|||
|
#40
BOLT, HEX. SOCKET BUTTON
90111-05011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#44
CANISTER ASSY
3C5-24170-00-00
|
$390.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, CANISTER
3C5-2419E-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GROMMET
90480-15342-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#50
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIPE 10
3C5-24321-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#53
PIPE 11
3C5-24322-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#54
PIPE 12
3C5-24323-00-00
|
$138.30 | ||
|
Unavailable |
|||
|
#55
PIPE 13
3C5-24324-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLIP
90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
