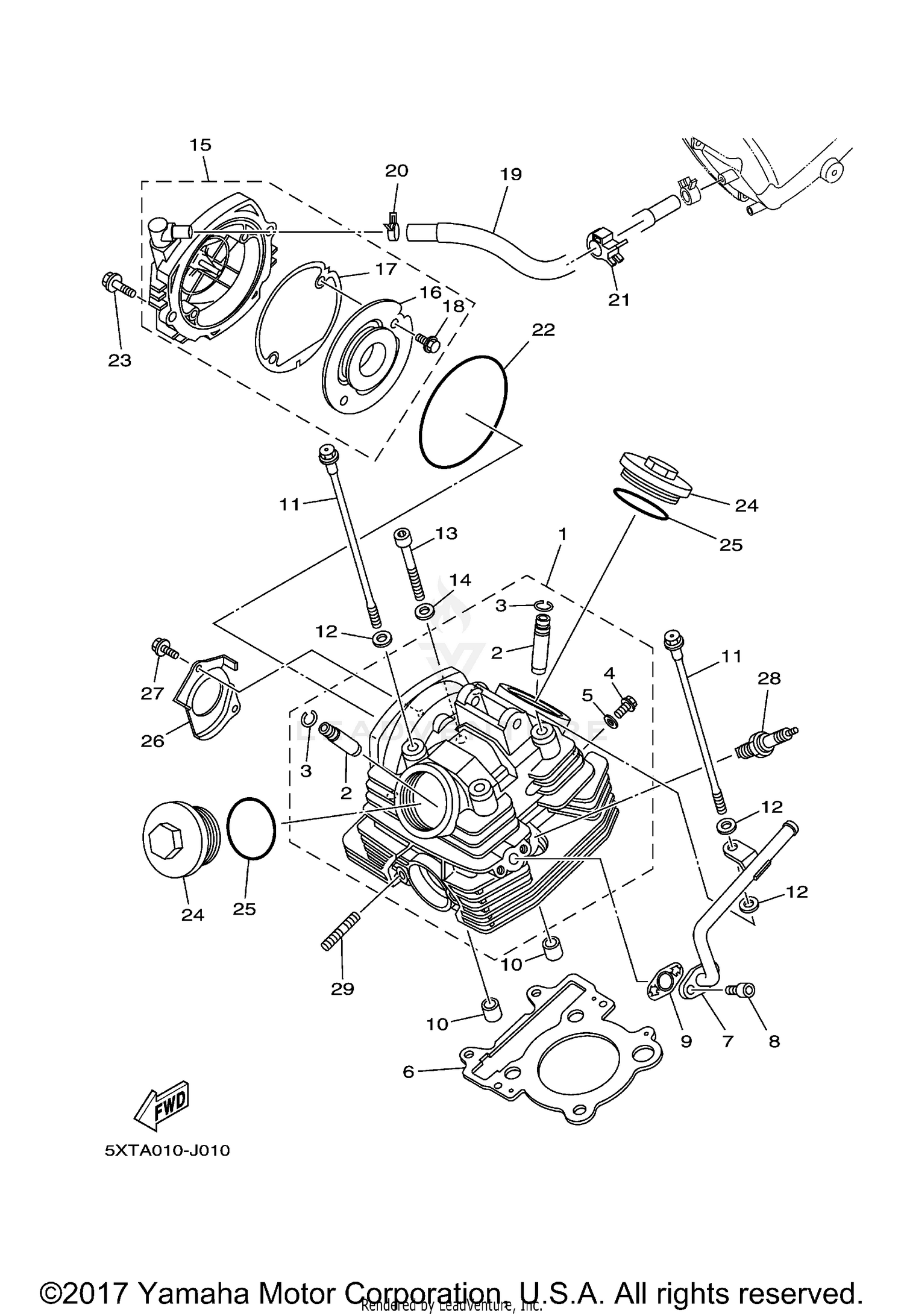

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5XT-11102-10-00
|
$463.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5H0-11133-11-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-10085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEXAGON
90153-06002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
5XT-11181-20-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 1
5XT-14871-20-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
5XT-14815-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08117-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06018-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, CYLINDER HEAD 1
5XT-11190-20-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, BREATHER
5XT-11165-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CYLINDER HEAD SIDE
4D3-11196-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06126-00
Superseded by 95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, BREATHER 1
5XT-11166-20-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93211-05471-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLG.(SMALL HEAD)
95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CYLINDER HEAD SIDE 2
5XT-11186-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-54001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
5XT-1111F-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-06078-00
Superseded by 95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, SPARK (NGK DR7EA)
94701-00345-00
Superseded by DR7-EA000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#29
BOLT, STUD
90116-08023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
