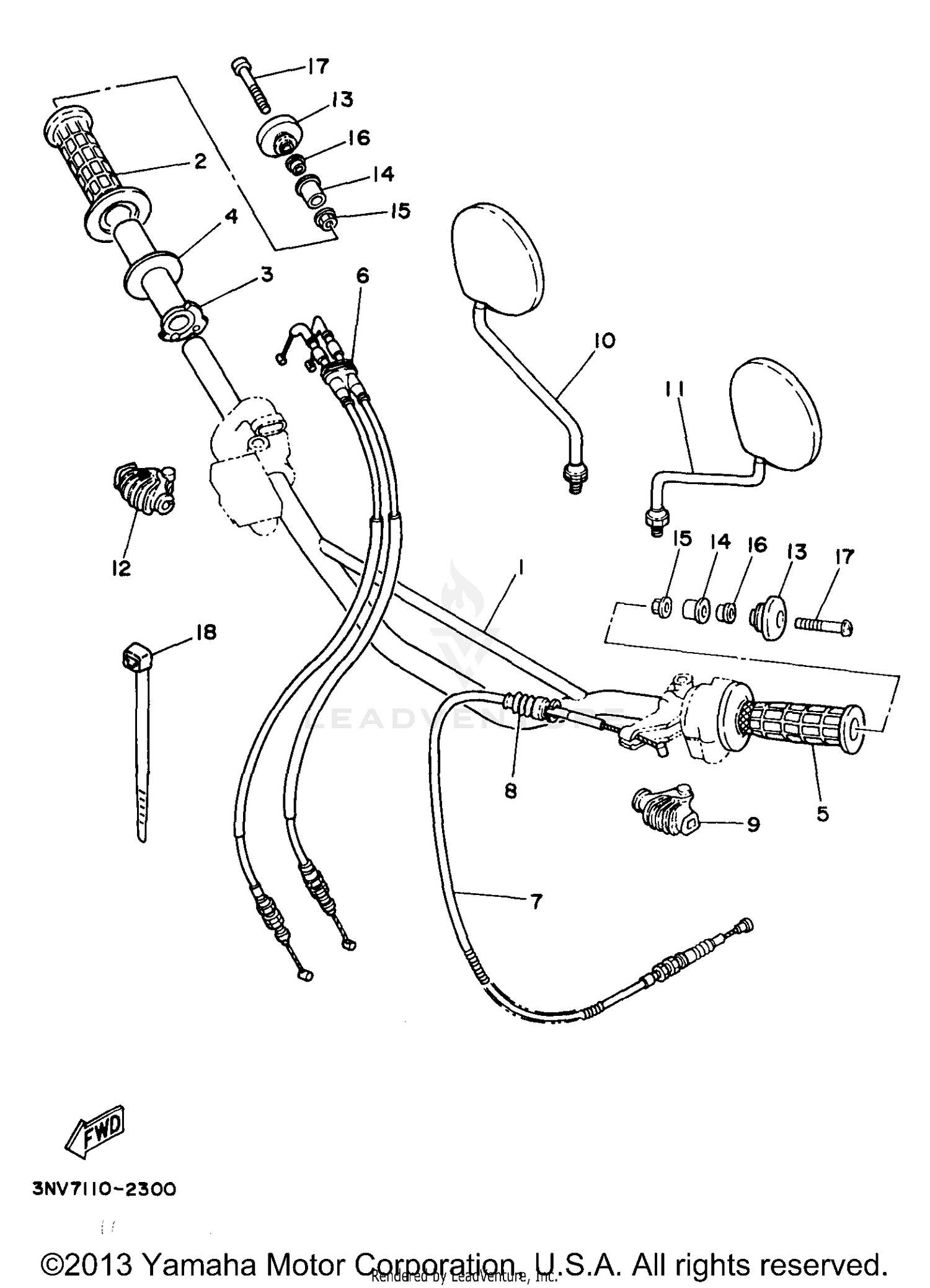

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1EU-26111-20-00
|
$84.99 | ||
|
Unavailable |
|||
|
#2
GRIP (RIGHT)
55V-26242-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
1RF-26243-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
3Y1-26249-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP (LH)
55V-26241-00-00
Superseded by 55V-26241-01-00
|
$15.99 | ||
|
Unavailable |
|||
|
#6
THROTTLE CABLE ASSEMBLY
30X-26302-00-00
Superseded by 30X-26302-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, CLUTCH
30X-26335-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR ASSY., 2
5Y1-26290-10-00
Superseded by 5Y1-26290-11-00
|
$72.99 | ||
|
Unavailable |
|||
|
#12
COVER, HANDLE LEVER 1
1T5-26372-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
END, GRIP
55V-26246-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#14
DAMPER, LOCATING 1 (55V-2622F-0
21A-2622F-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
NUT
90179-06498-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98507-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
