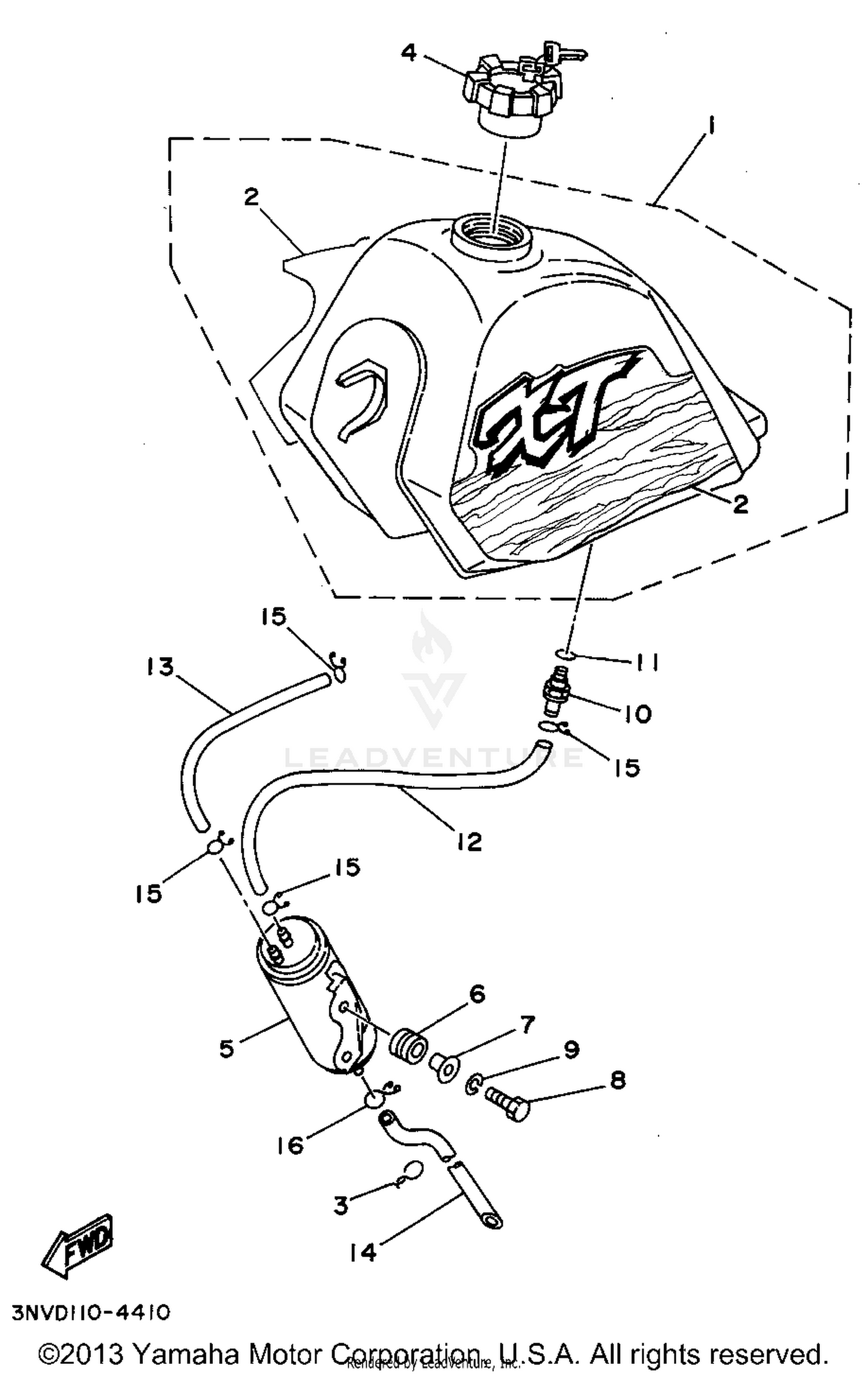

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
43E-24110-00-08
|
$540.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC
3NV-24240-10-00
|
$240.99 | ||
|
Unavailable |
|||
|
#3
CLAMP
90464-60067-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY
56R-24602-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#5
CANISTER ASSEMBLY
56R-24170-00-00
|
$334.99 | ||
|
Unavailable |
|||
|
#6
GROMMET
90480-15342-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 4
56R-24314-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#13
PIPE, FUEL 1
43E-24315-00-00
Superseded by 4KN-24311-01-00
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
91A21-07020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
