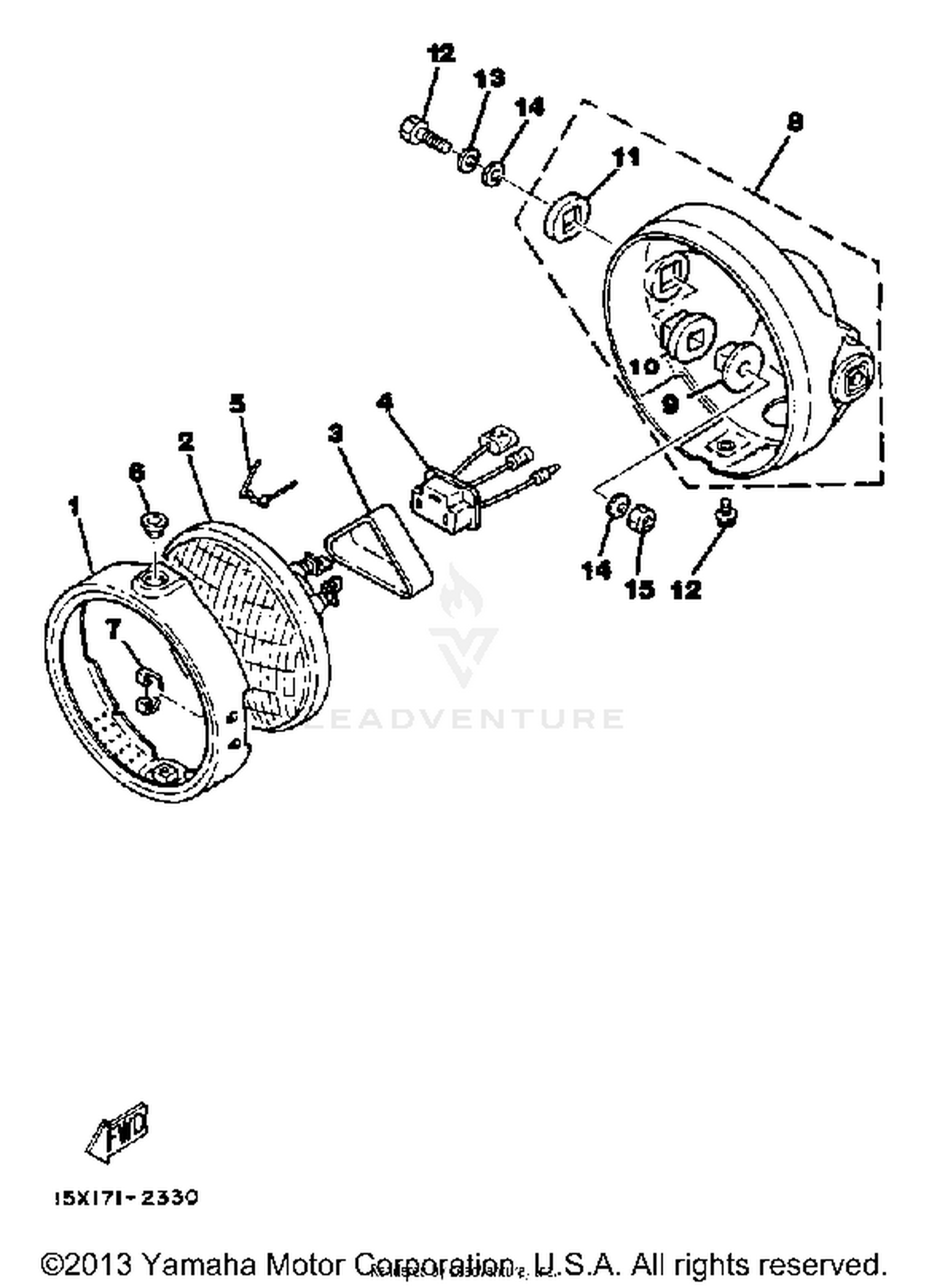

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, RETAINING
3J0-84195-60-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS ASSEMBLY
2A6-84120-60-00
|
$84.99 | ||
|
Unavailable |
|||
|
#3
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SET
1M1-84124-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SCREW
1M1-84133-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
498-84128-60-00
|
$21.59 | ||
|
Unavailable |
|||
|
#8
BODY ASSEMBLY, HEADLIGHT
3J0-84130-60-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, BODY FITTING
498-84145-60-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
498-84163-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
1M1-84164-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97306-08040-00
Superseded by 90101-08499-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
92906-08200-00
Superseded by 92907-08200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
