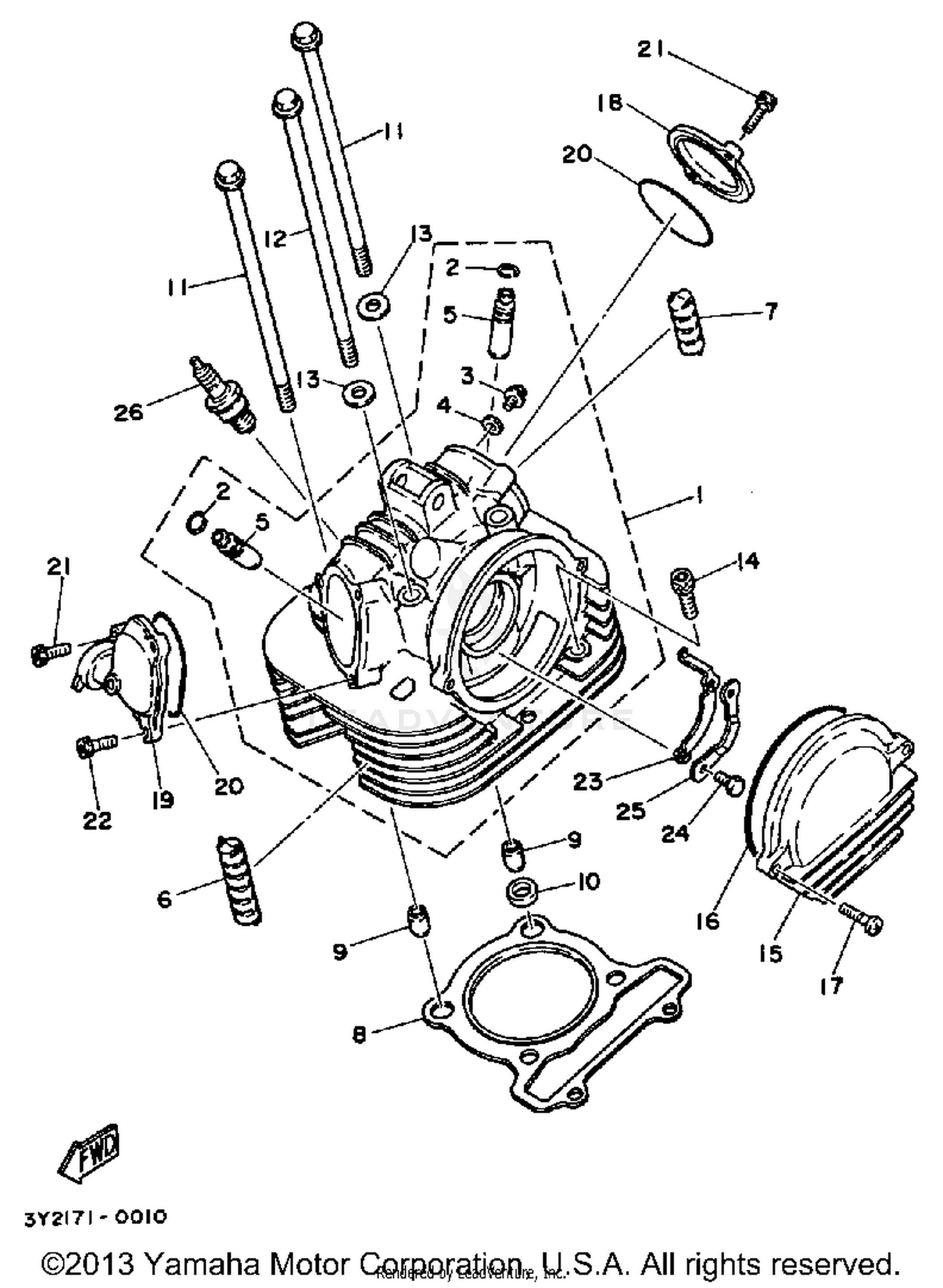

Cylinder Head Xt250k - Kc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
3Y1-11110-00-00
|
$456.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE 1
3Y1-11133-10-00
Superseded by 3Y1-11133-11-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ABSORBER 3
583-11127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, BREATHER 1
3Y1-11166-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CYLINDER HEAD 1
3Y1-11181-09-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-14131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10140-00
Superseded by 90105-10213-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WASHER BASED
90105-10139-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10128-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, CYLINDER HEAD SIDE 1
3Y1-11185-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#16
O-RING
93211-06635-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD
3Y1-11186-00-00
Superseded by 3Y1-11186-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD SIDE 3
3Y1-11187-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-57634-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-06556-00
|
$1.65 | ||
|
Unavailable |
|||
|
#23
PLATE
3Y1-1111F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK
90215-06162-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPLUG SR250G/SG
94701-00141-00
|
|||
|
Unavailable |
|||
|
#
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
