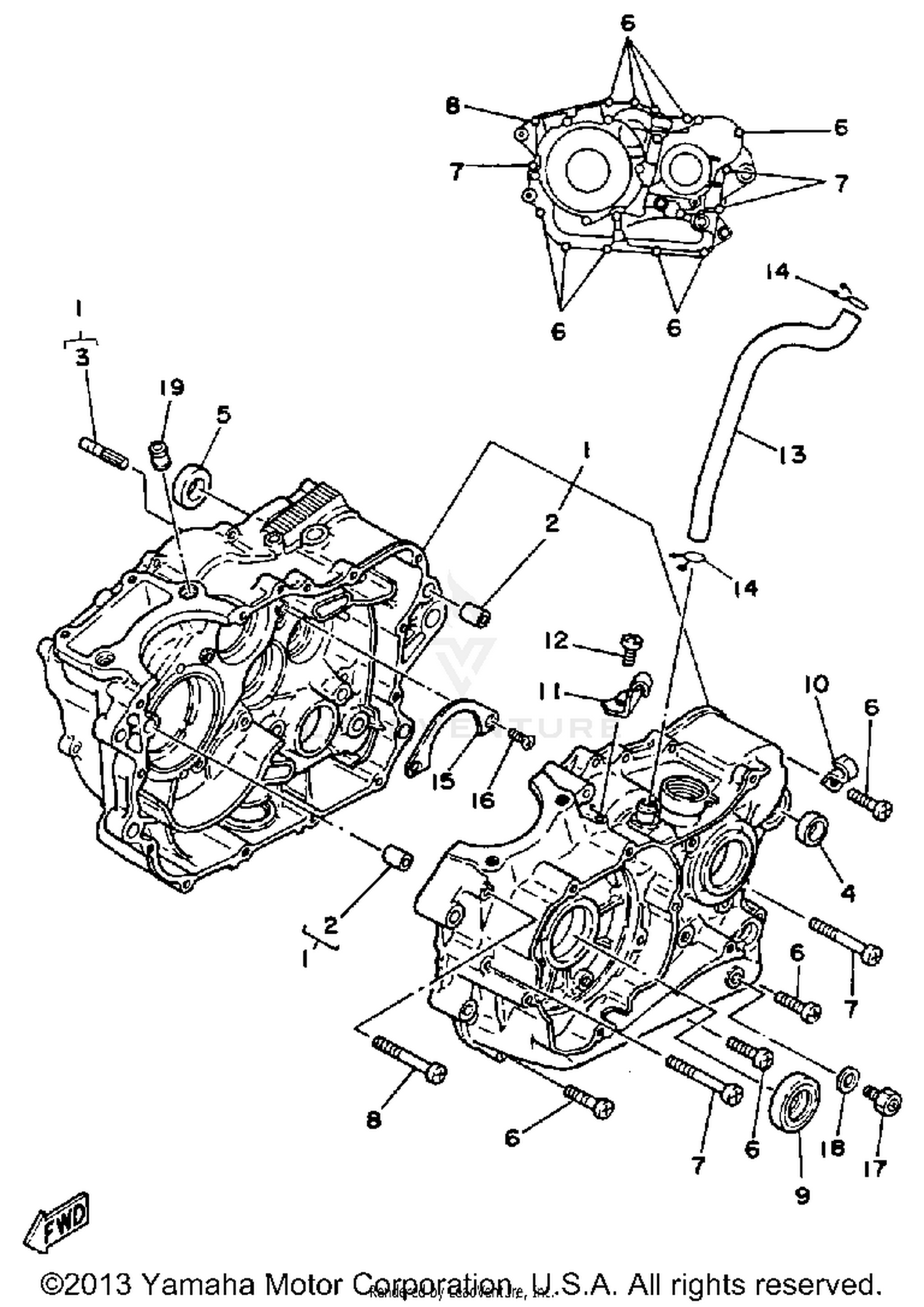

Crankcase Xt350nc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
55V-15100-00-00
|
$326.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER
55V-15668-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-17783-00
Superseded by 90387-17009-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-172J0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98506-06060-00
Superseded by 98507-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98506-06070-00
Superseded by 98507-06070-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-25305-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90465-08277-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, CLUTCH CABLE
51Y-15441-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, BREATHER 1
56R-11166-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#14
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BEARING COVER
30X-15383-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#16
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
