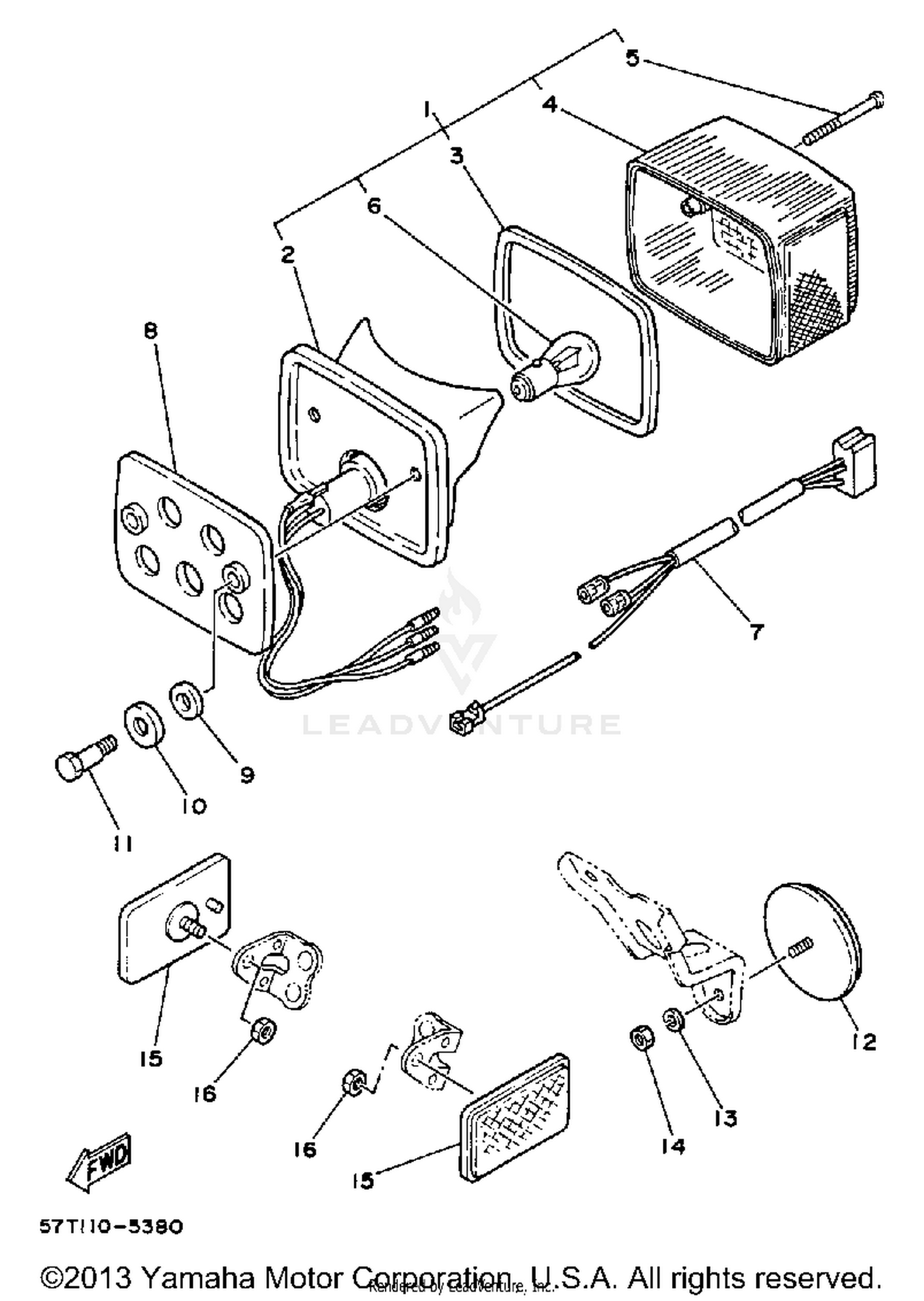

1986 Yamaha XT350S TAILLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
1W9-84710-60-00
Superseded by 1W9-84710-61-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE, TAILLIGHT
1M1-84511-60-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
GASKET, LENS
1M1-84523-60-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
1M1-84521-60-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V-21/5W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CORD, TAILLIGHT
42U-84517-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#8
DAMPER
4L0-84753-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-083A0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-08125-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-06005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLECTOR, REAR 1
449-85131-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
REFLECTOR ASSY
23V-85110-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
